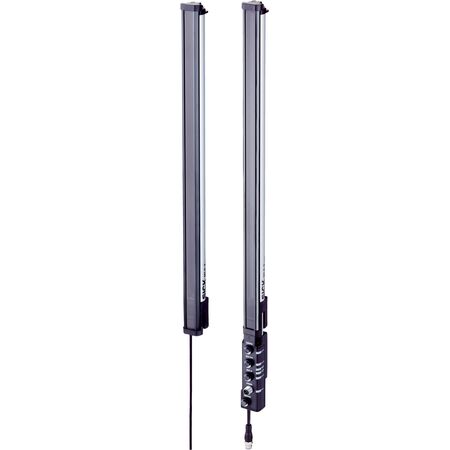

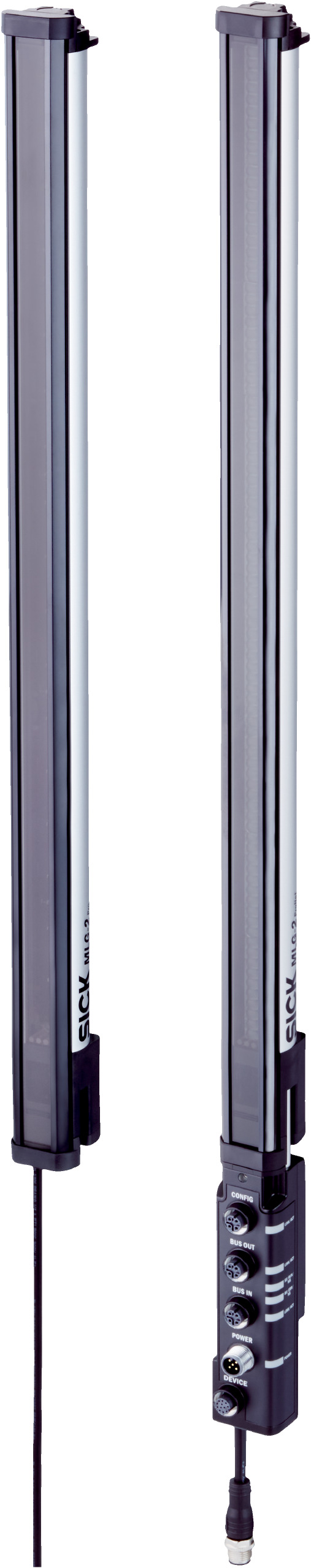

Web Guiding Sensor MLG05W-0521H12503 | 0.1 mm Resolution | IP65 & IP67 Rated | by SICK
The MLG05W-0521H12503 Web Guiding Sensor is designed for high precision in industrial automation, featuring a 0.1 mm resolution and ±0.3 mm accuracy. With 180 beams covering a measuring field of 1,195 mm and a fast cycle time of 32 µs per beam, it ensures accurate object detection and positioning. Ideal for manufacturing lines and automation systems, this robust sensor comes with a durable aluminum housing and is compliant with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 31mm x 1279mm x 34mm
- Weight: 2.7 kg
Key Features
- Web guiding device with sender/receiver sensor principle
- High resolution mode with 0.1 mm resolution and ±0.3 mm accuracy
- 180 beams covering a total measuring field width of 1,195 mm
- Fast cycle time of 32 µs per beam and repeatability of 6 µm
- LED infrared light source with 850 nm wavelength
- Robust aluminum housing with IP65 and IP67 protection ratings
- Push-pull PNP/NPN switching output
- Includes sender, receiver, fieldbus module, QuickFix brackets, and Quick Start Guide
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup and calibration for optimal performance.
Applications
- Web guiding for high precision industrial processes
- Measurement and control in manufacturing lines
- Automation systems requiring accurate object detection and positioning
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK MLG05W-0521H12503 Web Guiding Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
