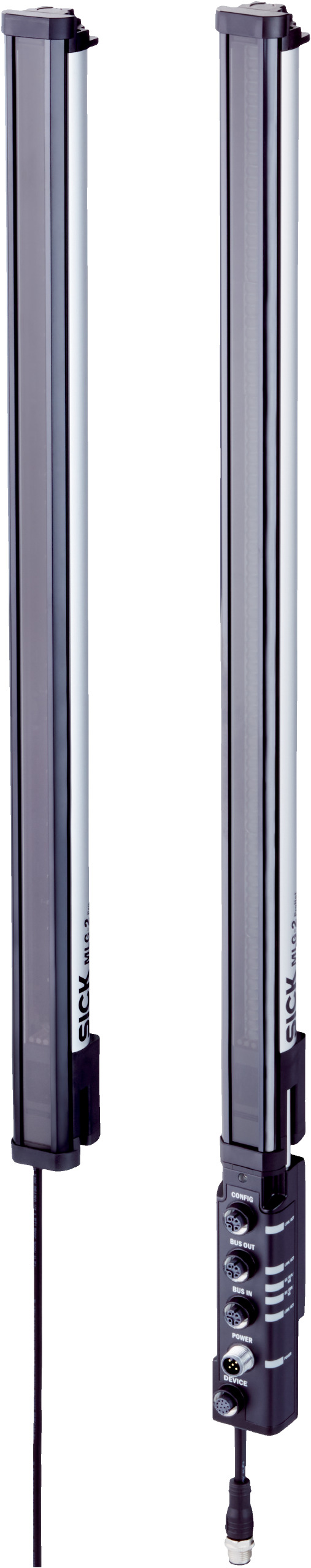

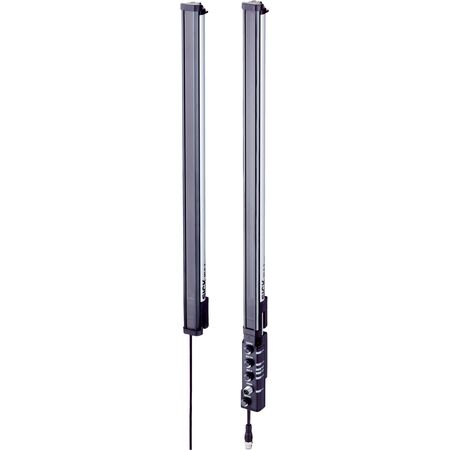

Web Guiding Sensor MLG05W-0600N12503 | 0.1 mm Resolution | IP65 & IP67 Protection | by SICK
The MLG05W-0600N12503 Web Guiding Sensor is designed for high precision measurement and industrial web alignment. With a remarkable 0.1 mm resolution and robust IP65/IP67 protection, it ensures reliable performance in automation systems. Ideal for manufacturing processes, this sensor features a fast cycle time and includes essential components for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 979mm x 31mm x 34mm
- Weight: 2.1 kg
Key Features
- Web guiding device with sender/receiver sensor principle
- High resolution mode with 0.1 mm resolution
- 180 beams covering a measuring field width of 895 mm
- Repeatability of 6 µm and accuracy of ± 0.3 mm
- LED infrared light source with 850 nm wavelength
- Robust aluminum housing with IP65 and IP67 protection
- Fast cycle time of 32 µs per beam and response time of 36.7 ms
- Push-pull PNP/NPN switching output
- Includes sender, receiver, fieldbus module, QuickFix brackets, and Quick Start Guide
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup and calibration.
Applications
- Industrial web guiding and alignment
- High precision measurement in manufacturing processes
- Automation systems requiring accurate object detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK MLG05W-0600N12503 Web Guiding Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
