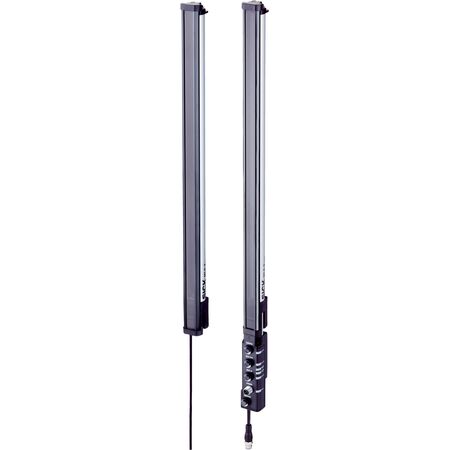

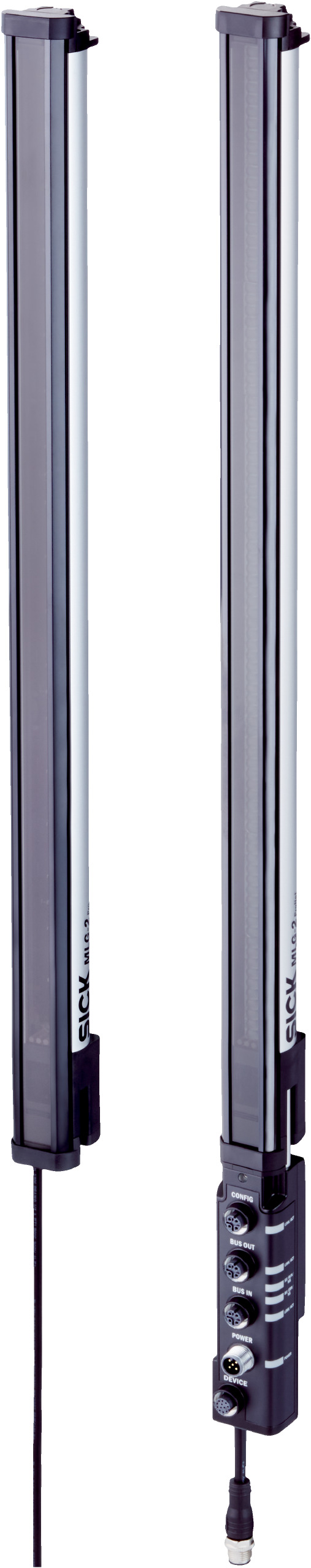

Web Guiding Sensor MLG05W-0676H12501 | 360 Beams | 0.1 mm Resolution | IP65 & IP67 Rated | by SICK
The Web Guiding Sensor MLG05W-0676H12501 is designed for precision measurement and control in industrial automation. With a high resolution of 0.1 mm and a repeatability of 6 µm, it features 360 beams and a total measuring field width of 2,845 mm. Ideal for monitoring and alignment of moving materials, this robust sensor is housed in durable aluminum with IP65 and IP67 protection ratings, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Web guiding
- Sensor principle: Sender/receiver
- Minimum object length: 4 mm
- Beam separation: 5 mm
- Resolution: 0.1 mm
- Cycle time: 32 µs per beam
- Repeatability: 6 µm
- Accuracy: ± 0.3 mm
- Type of synchronization: Cable
- Number of beams: 360
- Total measuring field width: 2,845 mm
- Measuring field width (connection side): 895 mm
- Blind zone (medium range): 1,055 mm
- Measuring field width (head side): 895 mm
- Light source: LED, Infrared light
- Wave length: 850 nm
- Supply voltage Vs: DC 19.2 V to 28.8 V
- Power consumption sender: 73 mA
- Power consumption receiver: 192 mA
- Fieldbus module current consumption: 115 mA
- Ripple: < 5 V pp
- Output current Imax.: 100 mA
- Output load, capacitive: 100 nF
- Output load, Inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull: PNP/NPN
- Connection type: Plug, M12, 5-pin and 12-pin connectors
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen: PMMA
- Maximum range: 3.5 m
- Minimum range: ≥ 0.2 m
- Operating range: 2.5 m
- Response time: 72.2 ms
- Digital output: 1 (Q1)
- EtherNet/IP™ support
- Dimensions (H x L x W): 2930mm x 31mm x 34mm
- Weight: 6 kg
Key Features
- Web guiding device with sender/receiver sensor principle
- High resolution of 0.1 mm and repeatability of 6 µm
- 360 beams with a total measuring field width of 2,845 mm
- LED infrared light source with 850 nm wavelength
- Robust aluminum housing with IP65 and IP67 protection ratings
- Fast cycle time of 32 µs per beam and response time of 72.2 ms
- Push-pull PNP/NPN switching output
- Includes sender, receiver, Fieldbus module, QuickFix brackets, and Quick Start Guide
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and calibration for optimal performance.
Applications
- Web guiding in industrial automation
- Precision measurement and control in manufacturing processes
- Monitoring and alignment of moving materials
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK MLG05W-0676H12501 Web Guiding Sensor is available for immediate purchase, ideal for industrial automation and web guiding applications.
