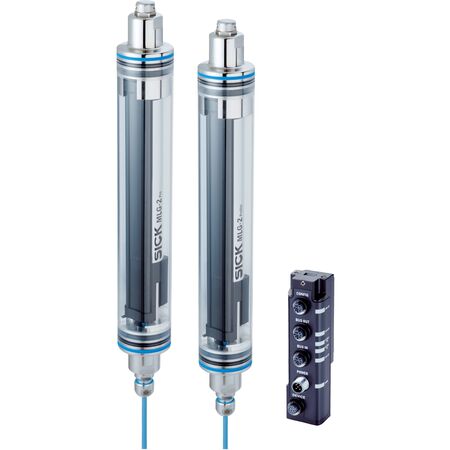

Web Guiding Sensor MLG05W-0F00H52501 | 0.1 mm Resolution | 450 Beams | IP69K Rated | by SICK
The Web Guiding Sensor MLG05W-0F00H52501 is designed for precision measurement in industrial automation, featuring a high resolution of 0.1 mm and a repeatability of 6 µm. With 450 beams covering a total measuring field width of 2,245 mm, this sensor ensures accurate web guiding and quality control in continuous material processing, making it ideal for manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Web guiding
- Sensor principle: Sender/receiver
- Minimum object length: 4 mm
- Beam separation: 5 mm
- Resolution: 0.1 mm
- Cycle time: 32 µs per beam
- Repeatability: 6 µm
- Accuracy: ± 0.3 mm
- Type of synchronization: Cable
- Number of beams: 450
- Total measuring field width: 2,245 mm
- Light source: LED, Infrared light
- Wavelength: 850 nm
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 77.5 mA
- Power consumption receiver: 210 mA
- Fieldbus module current consumption: 115 mA
- Ripple: < 5 V pp
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12, 5-pin and 12-pin connectors, 1.4 m cable
- Housing material: Aluminum, PMMA Plexiglas XT, Polypropylene, Stainless steel
- Display: LED
- Enclosure rating: IP69K
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Maximum range: 3.5 m
- Minimum range: ≥ 0.2 m
- Operating range: 2.5 m
- Response time: 89.9 ms
- Digital output: 1
- Dimensions (H x L x W): 2480mm x 50mm x 50mm
- Weight: 4.8 kg
Key Features
- Web guiding device with sender/receiver sensor principle
- High resolution of 0.1 mm and repeatability of 6 µm
- 450 beams covering a total measuring field width of 2,245 mm
- Fast cycle time of 32 µs per beam
- LED infrared light source with 850 nm wavelength
- IP69K rated protective housing for harsh environments
- Push-pull PNP/NPN switching output
- Cable synchronization type
- Includes sender, receiver, fieldbus module, and mounting instructions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Web guiding in industrial automation
- Precision measurement in manufacturing processes
- Quality control for continuous material processing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP69K housing reduces need for frequent replacements
- Energy-efficient LED infrared light source minimizes power consumption
- Supports precise process control reducing material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG05W-0F00H52501 Web Guiding Sensor is available for immediate purchase, ideal for industrial automation and precision web guiding applications.
