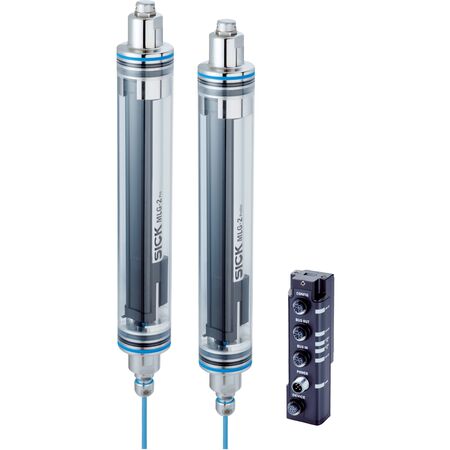

Web Guiding Sensor MLG05W-0G00H52501 | High Resolution 0.1 mm | IP69K Rated | by SICK
The Web Guiding Sensor MLG05W-0G00H52501 is designed for precision measurement and control in industrial automation. With a high resolution of 0.1 mm and a total measuring field width of 2,395 mm, it ensures accurate web guiding. Built for durability with an IP69K rating, this sensor is perfect for quality control in manufacturing processes, providing reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Web guiding
- Sensor principle: Sender/receiver
- Minimum object length: 4 mm
- Beam separation: 5 mm
- Resolution: 0.1 mm
- Cycle time: 32 µs per beam
- Repeatability: 6 µm
- Accuracy: ± 0.3 mm
- Type of synchronization: Cable
- Number of beams: 480
- Total measuring field width: 2,395 mm
- Light source: LED, Infrared light
- Wavelength: 850 nm
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 79 mA
- Power consumption receiver: 216 mA
- Fieldbus module current consumption: 115 mA
- Ripple: < 5 V pp
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12, 5-pin and 12-pin connectors, 1.4 m
- Housing material: Aluminum, PMMA Plexiglas XT, Polypropylene, Stainless steel
- Display: LED
- Enclosure rating: IP69K
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Maximum range: 3.5 m
- Minimum range: ≥ 0.2 m
- Operating range: 2.5 m
- Response time: 95.8 ms
- Digital output: 1
- Dimensions (H x L x W): 2630mm x 50mm x 50mm
- Weight: 5.1 kg
Key Features
- Web guiding device with sender/receiver sensor principle
- High resolution of 0.1 mm and repeatability of 6 µm
- Total measuring field width of 2,395 mm with 480 beams
- Fast cycle time of 32 µs per beam
- LED infrared light source with 850 nm wavelength
- Robust aluminum housing with IP69K protection rating
- Push-pull PNP/NPN switching output
- Cable synchronization type

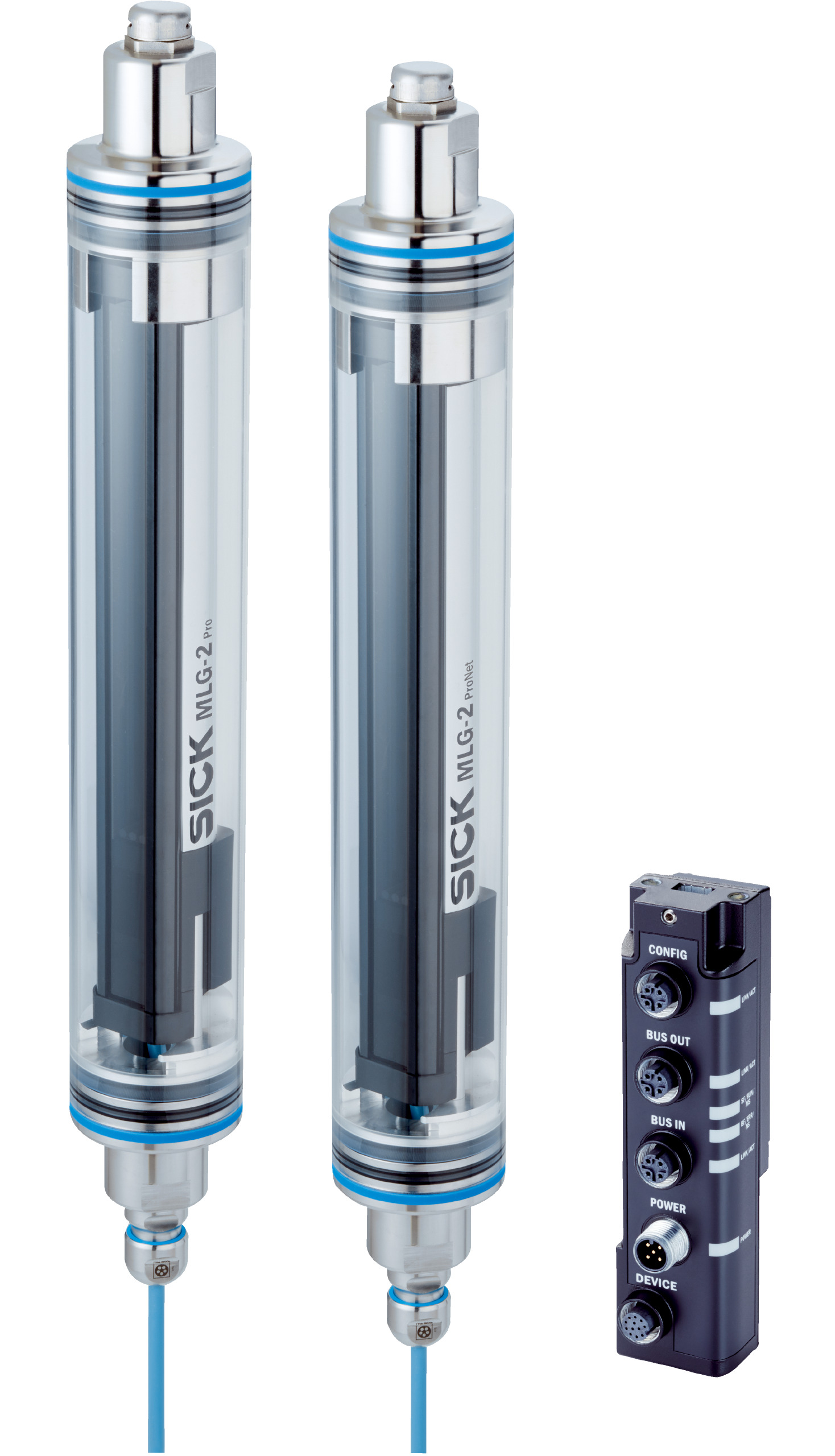

- Includes sender and receiver in IP69K protective pipes and fieldbus module
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor systems and electrical wiring standards to ensure proper setup and safety compliance.
Applications
- Web guiding in industrial automation
- Precision measurement and control in manufacturing processes
- Quality control in material handling and processing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable IP69K rated housing ensures long product life and reduces waste
- Supports precise control to minimize material waste in manufacturing
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MLG05W-0G00H52501 Web Guiding Sensor is available for immediate purchase, ideal for industrial automation and precision web guiding applications.
