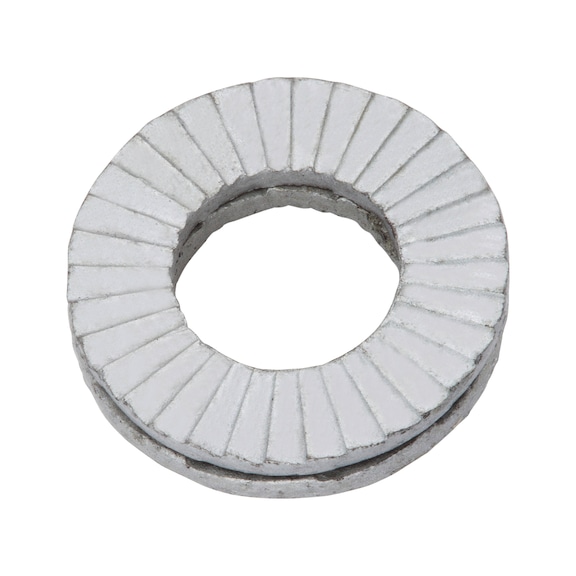

Wedge Lock Washer W.TEC Series | Corrosion Resistant | Reusable | Wide Shape | @Pack of 25 | by Wurth
Wedge Lock Washer W.TEC Series is designed for securing laterally loaded and vibrating screw connections, preventing self-loosening in dynamic applications. With a corrosion resistance of 600 hours and a reusable design, these washers are perfect for industrial and mechanical uses, ensuring reliable performance and easy assembly.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wedge Lock Washer W.TEC Series | Corrosion Resistant | Reusable | Wide Shape | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 401770010
Alternatively Known As: Wedge Lock Washer, Locking Washer, Vibration Lock Washer, Anti-Loosening Washer, DIN 25201 Lock Washer
Technical Specifications
- Internal diameter: 10.7 mm
- Suitable for screw thread: M10
- Outer diameter: 21 mm
- Thickness: 2.7 mm
- Material: Steel
- Vickers hardness: 485 HV
- Surface finish: Flake zinc silver
- Corrosion protection period: 600 hours
- RoHS-compliant: Yes
- Design: Wide
- Locking function: Locking against self-loosening by mechanical interlocking
- Dimensions (H x L x W): 2.7mm x 21mm x 21mm
- Weight: 0.02 kg
Key Features
- Effectively secures laterally loaded and vibrating screw connections against self-turning
- Lock washer in line with DIN 25201 standard
- Corrosion resistance of 600 hours base metal corrosion per DIN EN ISO 9227-NSS
- Wedge surface slope ensures highly secure locking by pre-tension instead of friction
- Easy to assemble and disassemble; washers are glued in pairs
- Tested system for screw retainer at high and low tension
- Reusable multiple times without loss of quality
- Gentle on surfaces
- Available in stainless steel or steel with flake zinc silver surface
- Wide contact surface design
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper locking and safety.
Applications
- Securing laterally loaded, vibrating screw connections
- Preventing self-loosening in screw connections subject to oscillations
- Suitable for dynamic loading applications
- Use with high-strength screws (8.8, 10.9, 12.9) and matching nuts
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reusable multiple times reducing waste
- RoHS-compliant material ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth warranty policy.
Available Now
Available for immediate purchase, ideal for industrial and mechanical applications requiring secure screw connections.
