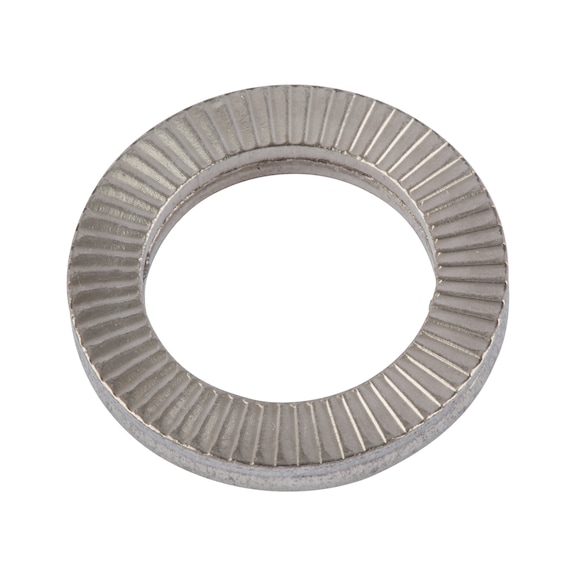

Wedge Lock Washer W.TEC | Narrow Shape | Vibration Resistance | Stainless Steel 1.4404 | by WURTH
Wedge lock washer W.TEC is designed for securing screw connections against self-turning under lateral loads and vibrations. Made from surface-hardened stainless steel 1.4404, this narrow shape washer is ideal for bolt-nut connections requiring anti-self-turning solutions. Perfect for industrial and mechanical fastening applications, it enhances the longevity of screw connections while minimizing waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wedge Lock Washer W.TEC | Narrow Shape | Vibration Resistance | Stainless Steel 1.4404 | by WURTH
Brand: WURTH
SKU: 404701008
Alternatively Known As: Wedge Lock Washer, Anti-turn Washer, Vibration Lock Washer, W.TEC Washer
Technical Specifications
- Material: Surface-hardened stainless steel 1.4404
- Designed for lateral load and vibration resistance
- Must be used in pairs under screw head and nut
- Not suitable for corrosive environments; use 254SMO (1.4547) stainless steel for such conditions
- Dimensions (H x L x W): 2mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- Effectively secures screw connections against self-turning under lateral loads and vibrations
- Narrow shape design for specific fitting requirements
- Surface-hardened stainless steel 1.4404 material
- Requires use in pairs under both screw head and nut for bolt-nut connections
Professional Installation Requirements
- Installation should be performed by qualified personnel following recommended tightening torques as per DIN/ISO catalogue.
Applications
- Securing laterally loaded, vibrating screw connections
- Screw connections subject to oscillations
- Bolt-nut connections requiring anti-self-turning solutions
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Enhances longevity of screw connections, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to WURTH warranty policy.
Available Now
The WURTH Wedge Lock Washer W.TEC Narrow Shape is available for immediate purchase, ideal for industrial and mechanical fastening applications.
