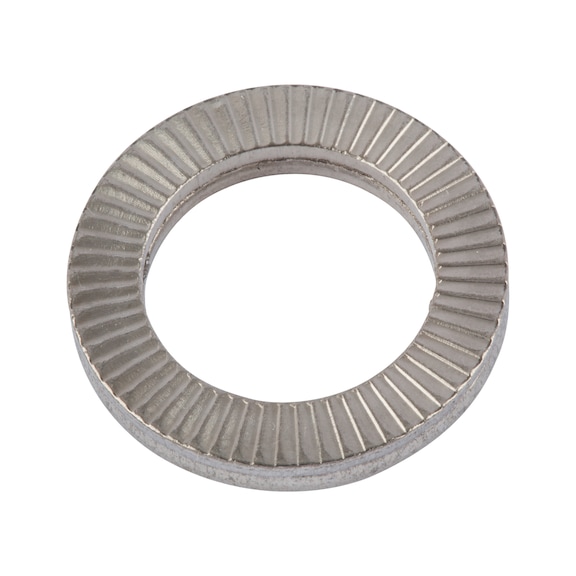

Wedge Lock Washer W.TEC | Narrow Shape | Stainless Steel A4 | Mechanical Interlocking | @Pack of 25 | by Wurth
Wedge Lock Washer W.TEC is designed for securing laterally loaded and vibrating screw connections, preventing self-loosening in dynamic loading conditions. Made from durable stainless steel A4, this washer features a narrow shape and mechanical interlocking design for enhanced safety and reliability. Ideal for industrial and mechanical applications, it ensures easy assembly and disassembly while being gentle on surfaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wedge Lock Washer W.TEC | Narrow Shape | Stainless Steel A4 | Mechanical Interlocking | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 404701006
Alternatively Known As: Wedge lock washer, Wedge lock ring, Locking washer, DIN 25201 washer, Anti-loosening washer
Technical Specifications
- Internal diameter (d1): 6.5 mm
- Suitable for screw thread: M6
- Outer diameter (d2): 10.8 mm
- Thickness (h1): 1.6 mm
- Material: Stainless steel A4
- Vickers hardness: 520 HV
- Surface finish: Plain
- RoHS-compliant: Yes
- Design: Narrow
- Locking function: Mechanical interlocking to prevent self-loosening
- Dimensions (H x L x W): 1.6mm x 10.8mm x 10.8mm
- Weight: 0.01 kg
Key Features
- Wedge lock washer effectively secures laterally loaded and vibrating screw connections against self-turning
- Lock washer complies with DIN 25201 standard to prevent loosening
- Wedge surface slope between two washers ensures highly secure locking by pre-tension instead of friction
- Easy to assemble and disassemble; washers are glued in pairs
- Tested system for screw retainer locking elements preventing unscrewing under high and low tension
- Suitable for use with lubricants and dynamic loading
- Reusable multiple times without loss of quality
- Gentle on surfaces
- Available in stainless steel A4 with plain surface
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper locking and safety in mechanical assemblies.
Applications
- Securing laterally loaded, vibrating screw connections
- Preventing self-loosening in screw connections subject to oscillations
- Suitable for dynamic loading conditions in mechanical assemblies
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reusable design reduces waste and replacement frequency
- Made from durable stainless steel ensuring long product life
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; quality guaranteed by Wurth.
Available Now
Wurth Wedge Lock Washer W.TEC narrow shape 25 PCS is available for immediate purchase, ideal for industrial and mechanical fastening applications.
