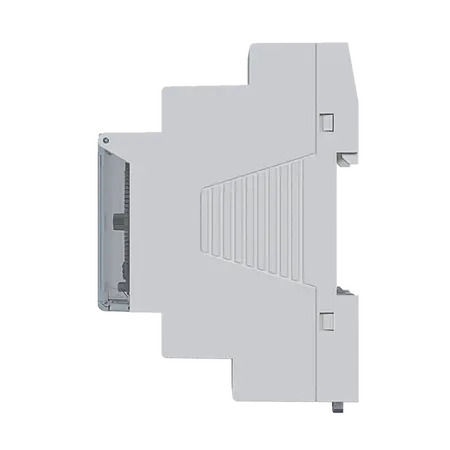

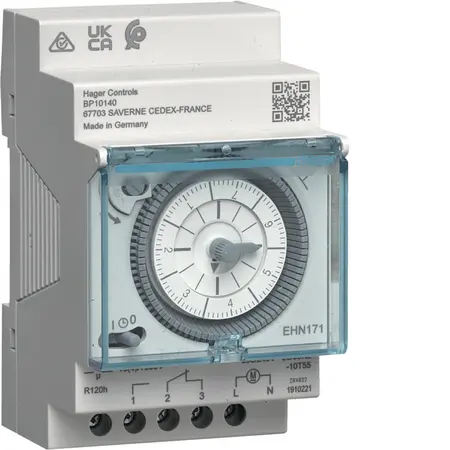

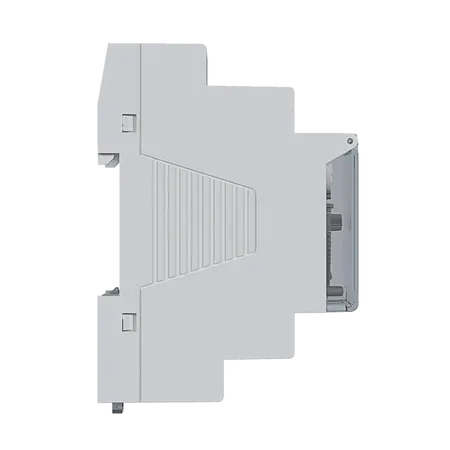

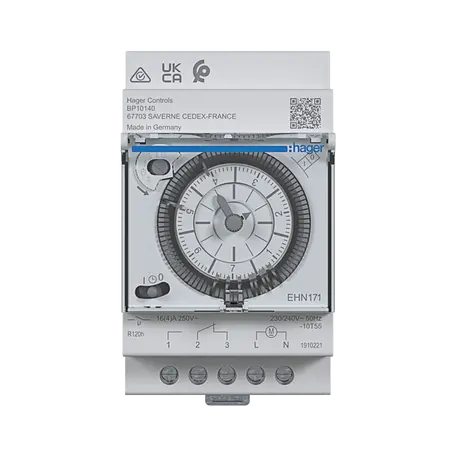

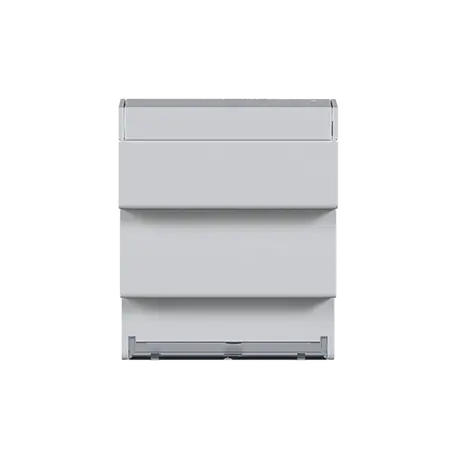

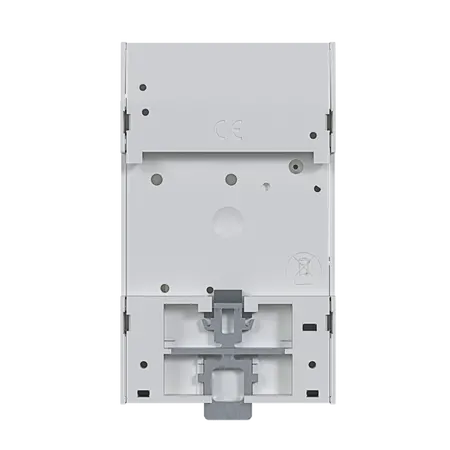

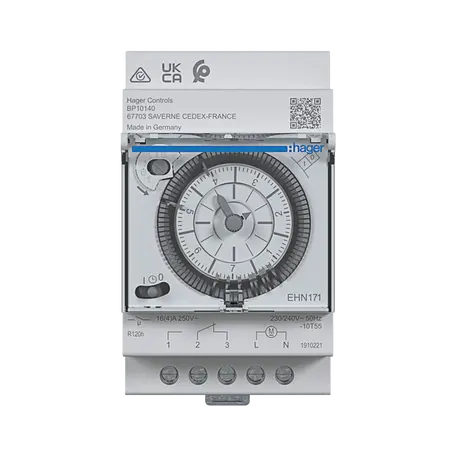

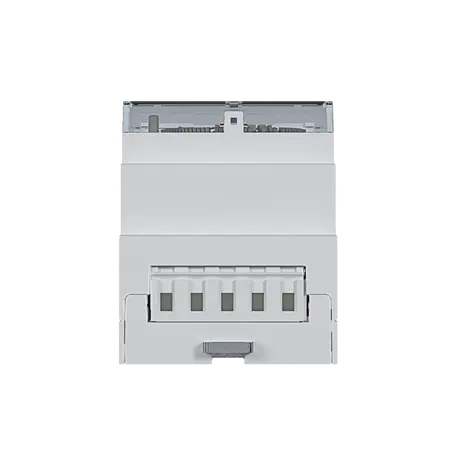

Weekly Timer Switch 1 Channel | 3 Modules with Reserve | DIN Rail Mount by Hager
Weekly timer switch with 1 channel and 3 modules—ideal for residential and commercial energy management. Built for DIN rail mounting, with a power capacity of 1100W for incandescent and halogen lamps.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Weekly time switch 1 channel, 3 modules with reserve
Brand: Hager
SKU: EHN171
Alternatively Known As: Hager Time Switch, Weekly Timer Switch, DIN Rail Time Switch
Technical Specifications
- Number of channels: 1
- Power loss at full load: 1 W
- Number of contacts: 1
- Cross-section flexible conductor: 0.5 - 6 mm²
- Cross-section rigid conductor: 0.5 - 6 mm²
- Max. power (cos phi 0.6): 4 A
- Electrical durability at nominal load: 50,000 operating cycles
- Rated operational voltage: 230 - 240 V
- Dimensions (H x L x W): 90mm x 60mm x 54mm
- Weight: 0.5 kg
Key Features
- 1 channel with a frequency of 50 - 60 Hz.
- Power consumption during operation is 0.50 W.
- Can control incandescent and halogen lamps up to 1100 W.
- Operating temperature range of -10 to +55 °C.
- Designed for mounting on DIN rail.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small offices
- Commercial: Retail spaces and light industrial applications
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager Weekly Time Switch 1 Channel, 3 Modules with Reserve is available now for immediate purchase. Ideal for residential and commercial energy management applications.
