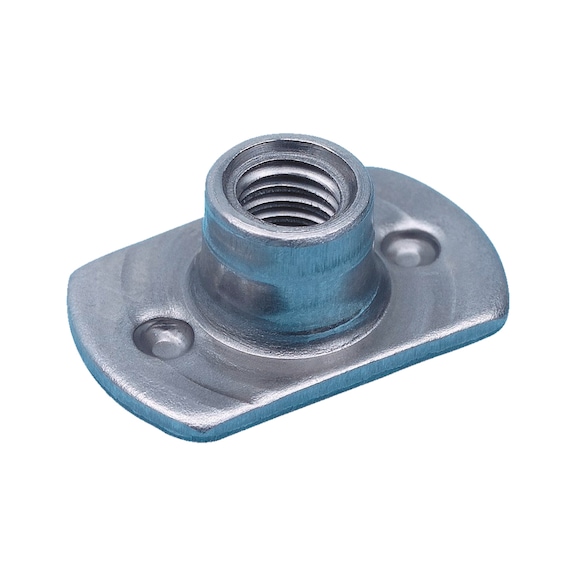

Weld Nut High Profile WN 385 | M10 Thread | 4 Weld Projections | Plain Steel | @Pack of 100 | by Wurth
Weld Nut High Profile WN 385 features a robust M10 thread and four weld projections, making it ideal for secure fastening in industrial welding applications. Crafted from plain steel and RoHS-compliant, this nut ensures durability and compliance with safety standards, perfect for metal fabrication and construction projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Weld Nut High Profile WN 385 | M10 Thread | 4 Weld Projections | Plain Steel | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 38510
Alternatively Known As: Weld Nut M10, High Profile Weld Nut, Steel Weld Nut, WN 385 Weld Nut

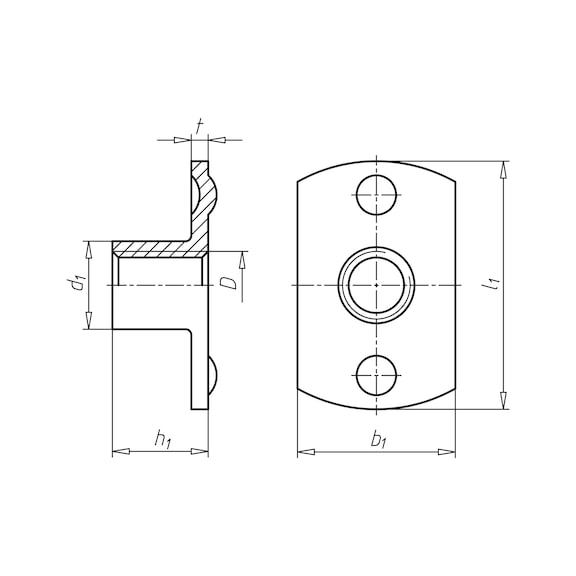

Technical Specifications
- Thread type x nominal diameter (D): M10
- Outer diameter (d1): 11.9 mm
- Height (h1): 10.5 mm
- Width (b1): 18 mm
- Length (l1): 26 mm
- Thickness (t): 1.9 mm
- Number of weld projections: 4 PCS
- Standards: WN 385-2
- Material: Steel

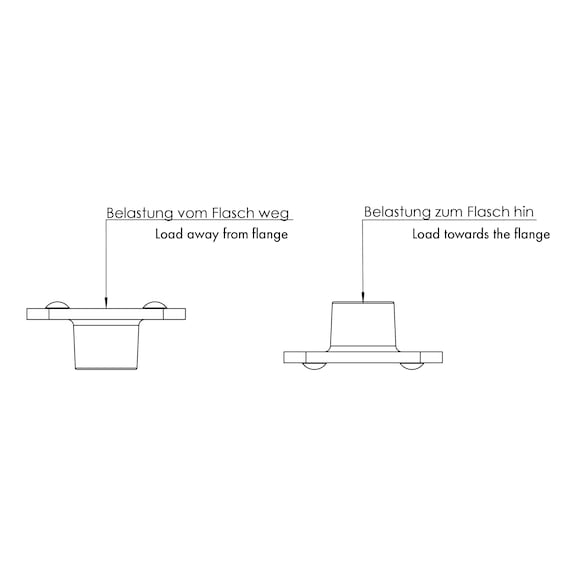

- Max. load (away from flange): 16.0 kN
- Max. load (towards flange): 18.0 kN
- Surface: Plain
- Thread type: Metric thread
- Area of application: Suitable for welding
- Design: High profile
- RoHS-compliant: Yes
- Dimensions (H x L x W): 10.5mm x 26mm x 18mm
- Weight: 0.05 kg
Key Features
- Max. carbon content of 0.25%
- High profile design for enhanced welding strength
- 4 weld projections for secure attachment
- Plain steel surface
- RoHS-compliant
Professional Installation Requirements
- Professional welding and installation by qualified personnel is recommended to ensure optimal safety and performance.
Applications
- Suitable for welding applications requiring secure fastening
- Industrial and construction welding projects
- Metal fabrication and assembly
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable steel construction promotes long product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Weld Nut High Profile WN 385 Steel Plain M10 100 PCS is available now for immediate purchase. Ideal for industrial welding and metal fabrication applications.
