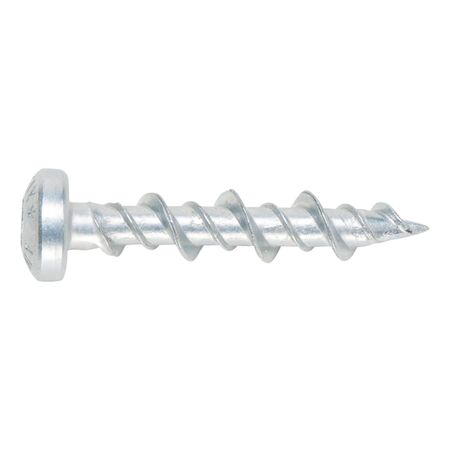

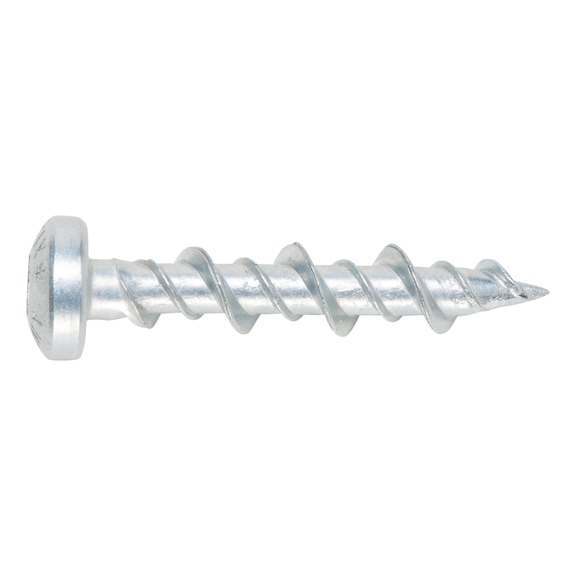

WG Fix Screw Pan Head | AW20 Drive | Zinc Plated | 6.3mm Diameter | @Pack of 250 | by Wurth
WG Fix Screw Pan Head is designed for quick and easy fastening with its pan head and AW20 drive, making it ideal for mounting motion detectors and fixing picture frames. Built for professionals, this screw offers a durable zinc plated surface and high thread pitch for fast insertion, ensuring secure fastening in solid stone and gypsum plasterboard applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

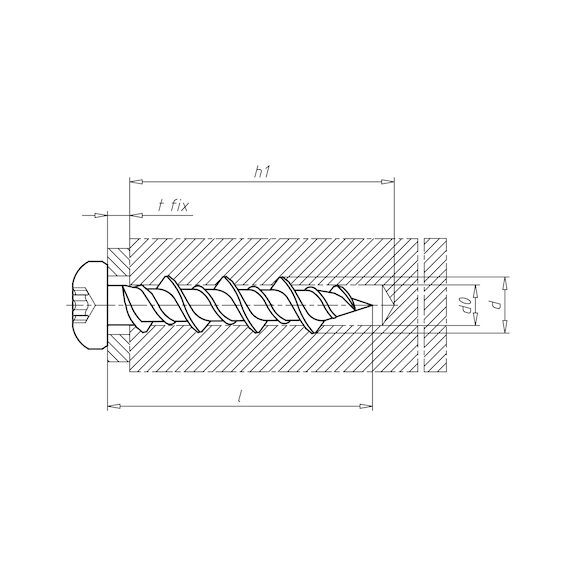

Technical Specifications
- Head type: Pan head
- Internal drive: AW20
- Anchor diameter: 6.3 mm
- Anchor length: 30 mm
- Max. attachment height: 2.5 mm
- Material: Steel
- Surface: Zinc plated
- Nominal drill-bit diameter: 4 mm
- Drill hole depth: 35 mm
- Through-hole in component: 6.5 mm
- Suitable for solid sand-lime brick with KSV 0.43
- Suitable for gypsum plasterboard d ≥ 9.5 mm with KSV 0.01
- Dimensions (H x L x W): 30mm x 30mm x 6.3mm
- Weight: 0.05 kg
Key Features
- Universal screw anchor with pan head for quick and easy fastening
- AW drive for longer bit service life and improved power transmission
- Pan head design for large contact area
- HiLo thread for elevated over-torque
- High thread pitch allows fast screw insertion
- Insert screw into gypsum plasterboard without pre-drilling
- Torque limiter stops screwing once firmly seated
Professional Installation Requirements
- Professional installation recommended to ensure correct drill hole depth and secure fastening.
Applications

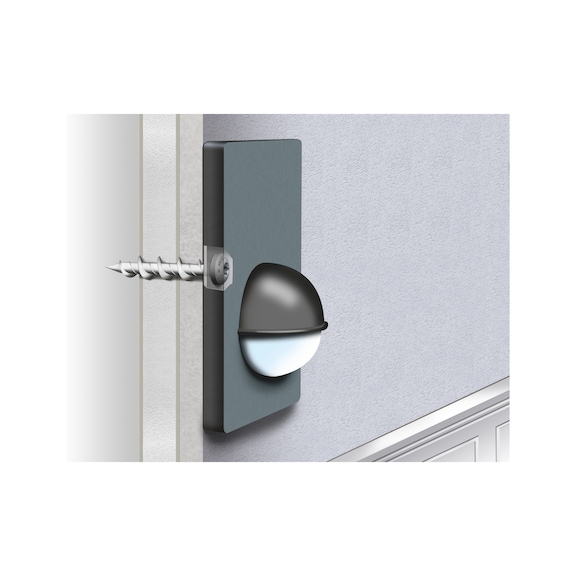

- Mounting motion detectors
- Fixing picture frames
- Installing hand towel rails
- Fastening in solid stone and gypsum plasterboard
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc plated surface extends product life reducing waste
- Efficient fastening reduces need for additional materials
Warranty Information
Wurth offers standard manufacturer warranty covering defects in materials and workmanship.
Available Now
The Wurth WG Fix Screw Pan Head SCRDWL CORTHR AW20 6.3x30mm 250 pcs is available for immediate purchase, ideal for construction and mounting applications in residential and commercial settings.
