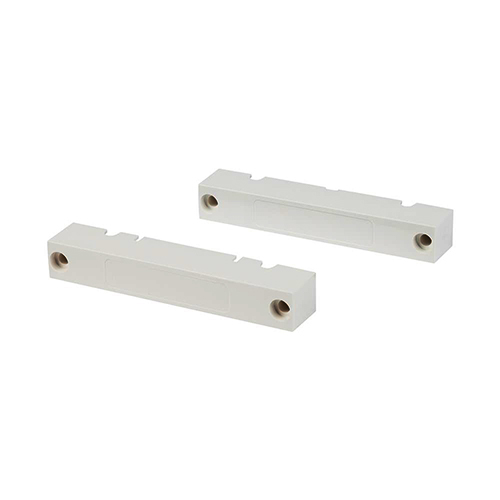

Wide Gap Reed Switch Surface Mount Screw Terminals Tecom
Tecom wide gap reed switch features surface mount fitting and screw terminals. Ideal for door and window contacts in alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Wide Gap Magnetic Door Contact, Surface-Mount Reed Switch, Alarm Door and Window Contact
Technical Specifications
- Contact Type: Normally closed reed contact
- Mounting: Surface mount
- Connections: Screw terminals
- Maximum Operating Gap: Approximately 37 mm
- Housing Colour: Beige
- Switch Technology: Hermetically sealed magnetic reed contact
- Typical Application: Wired intrusion alarm and access-control systems
- Dimensions (H x L x W): 17mm x 65mm x 13mm
- Weight: 0.1 kg
Key Features
- Wide operating gap accommodates greater door or window alignment tolerance
- Surface-mount design suitable for retrofit and exposed-frame installations
- Screw terminals provide accessible field wiring without soldering
- Normally closed operation is suitable for alarm loop monitoring
- Compact contact housing for door and window security applications
- Designed for use with a matching actuator magnet
Professional Installation Requirements
- Installation should be completed by a qualified security installer. Connect only to an extra-low-voltage alarm or access-control circuit and install in accordance with the control-panel requirements and applicable Australian wiring rules.
Applications
- Door opening detection in intrusion alarm systems
- Window opening detection
- Commercial access-control monitoring
- Garage, gate and roller-door position monitoring where the operating gap is suitable
- Replacement of surface-mounted wired magnetic contacts
Standards & Compliance
- Applicable to intruder alarm installations designed and installed in accordance with AS/NZS 2201.1:2007; product-specific certification was not located.
Environmental Benefits
- Passive switching device with very low operating energy demand
- Long service life reduces replacement frequency and associated waste
- Compact construction uses relatively little material compared with powered security sensors
Warranty Information
No product-specific Tecom warranty period was located for this reed contact. Australian Consumer Law consumer guarantees apply where applicable; confirm any commercial warranty terms with the supplying distributor.
Available Now
Available through Aspen Pumps and authorised Australian security-equipment distributors, subject to current stock.
