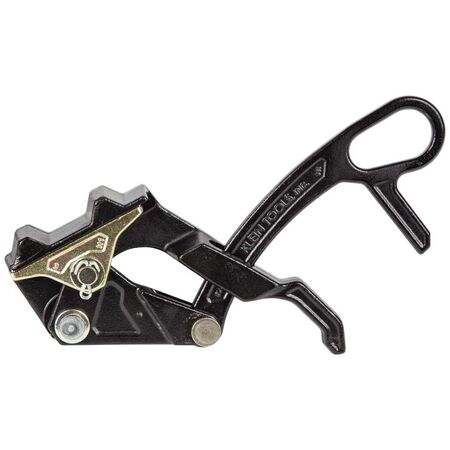

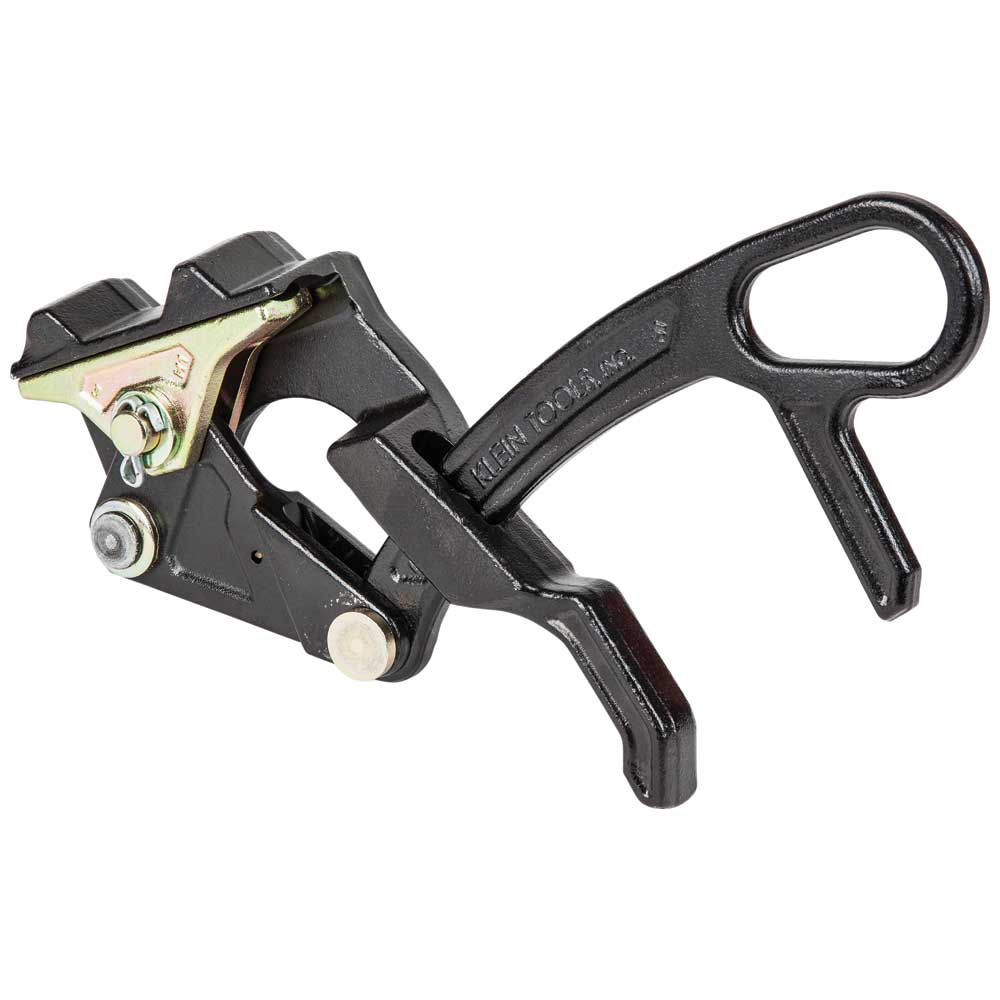

Wide-Range Distribution Grip | 0.162'' to 0.883'' Cable Diameter | 5000 lbs Max Load | One-Handed Operation | by Wattmaster
The Wide-Range Distribution Grip is designed for efficient wire pulling, accommodating cable diameters from 0.162'' to 0.883''. With a maximum safe load of 5000 lbs, this grip features a versatile one-handed design for easy actuation, making it ideal for electrical contractors and professionals. Its durable steel construction ensures longevity while reducing material usage and energy consumption during handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wide-Range Distribution Grip | 0.162'' to 0.883'' Cable Diameter | 5000 lbs Max Load | One-Handed Operation | by Wattmaster
Brand: Wattmaster
SKU: A-16477
Alternatively Known As: Wire Pulling Grip, Parallel Jawed Grip, Cable Pulling Grip, Electrical Wire Grip
Technical Specifications
- Cable Diameter Range: 0.162'' to 0.883'' (4.11 to 22.42 mm)
- Maximum Safe Load: 5000 lbs (2268 kg)
- Material: Steel

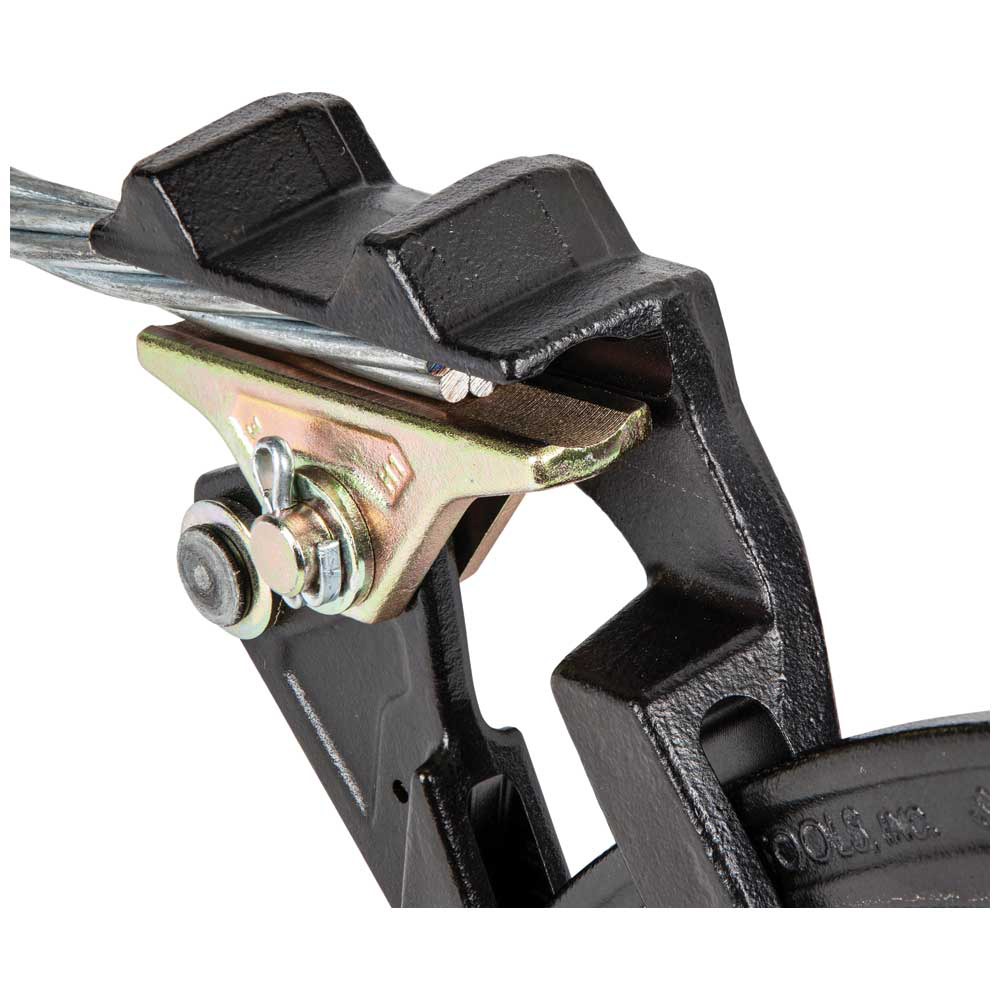

- Jaw Type: Round with fine teeth
- Spring-Loaded Grip for secure cable holding
- Overall Length: 10'' (250 mm)
- Overall Height: 1.25'' (32 mm)
- Overall Width: 6.5'' (165 mm)
- Weight: 2.9 lbs (1.3 kg)

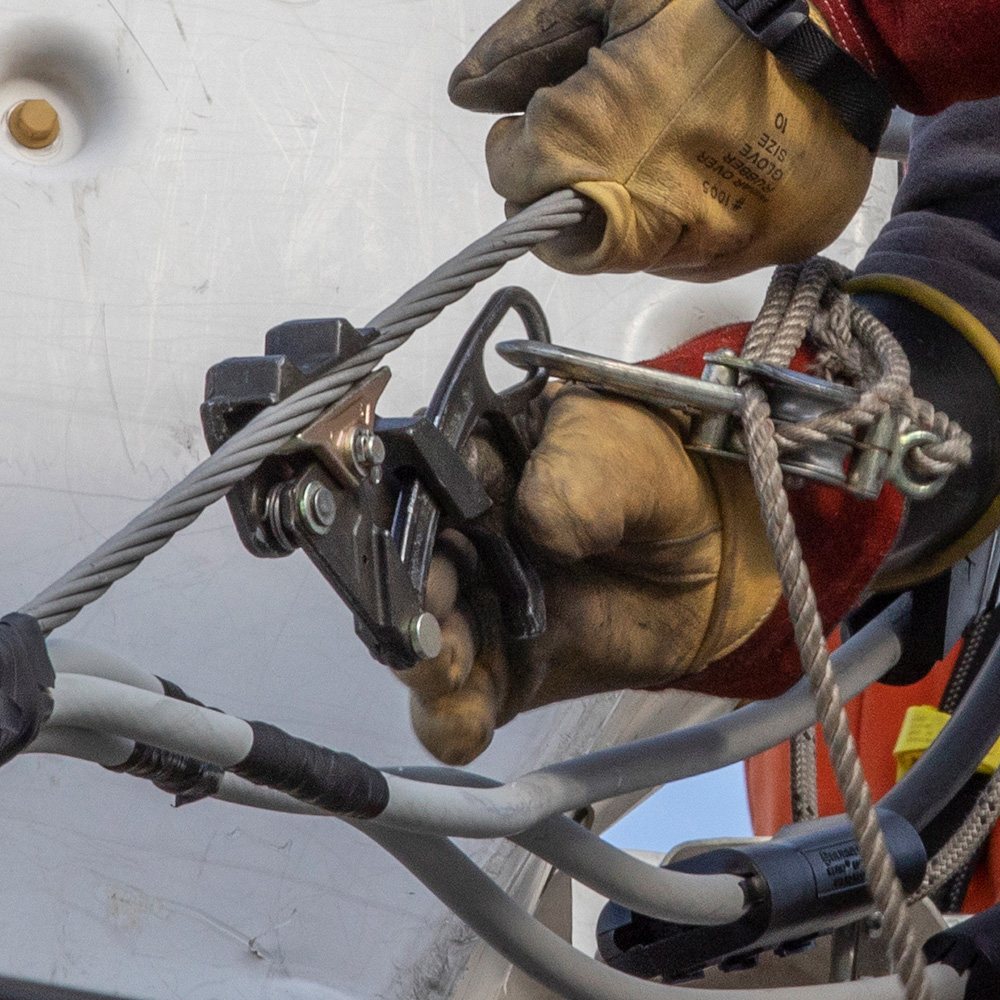

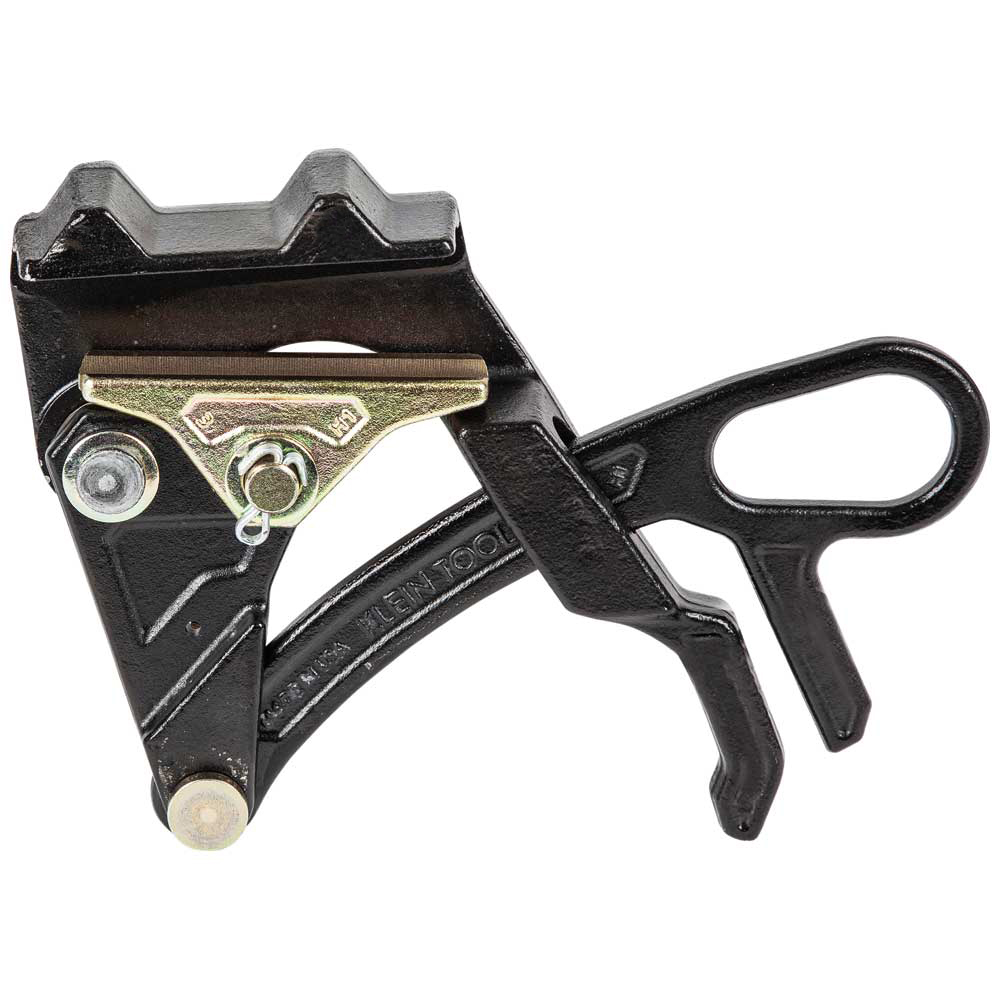

- One-handed operation design
- Large handle opening for various hook attachments
- Dimensions (H x L x W): 32mm x 250mm x 165mm
- Weight: 1.3 kg
Key Features

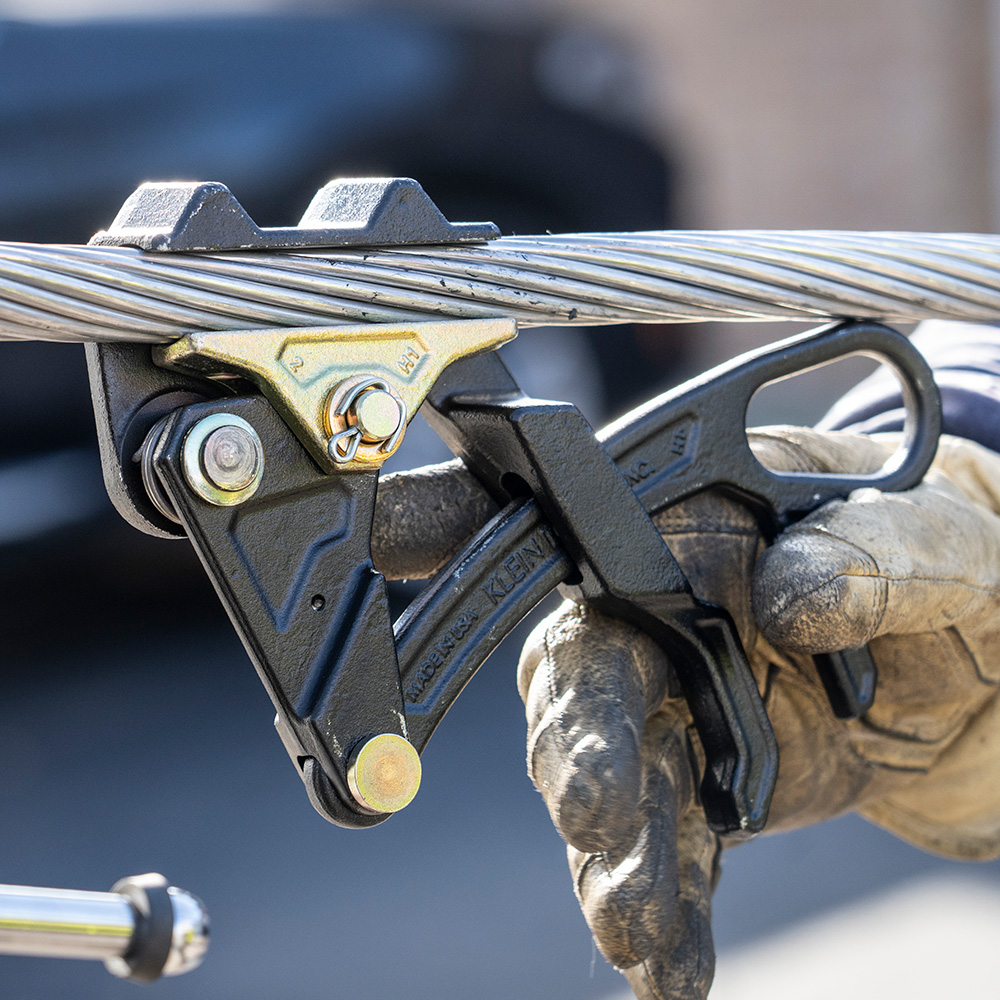

- Versatile one-handed grip design for easy actuation
- Holds a wide range of cable sizes from 0.162'' to 0.883'' (4.11 to 22.42 mm)

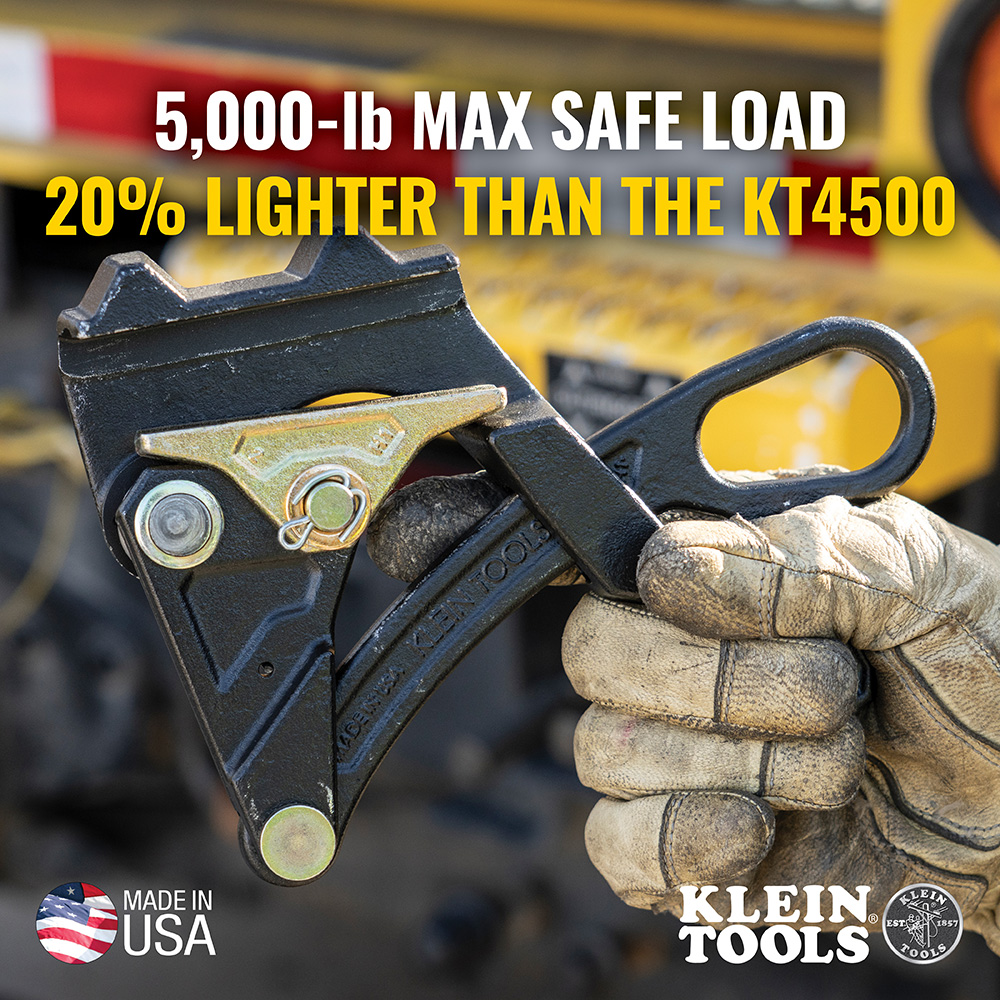

- 20% lighter than comparable grips for easier handling
- Spring closes grip on cable to hold initial position securely

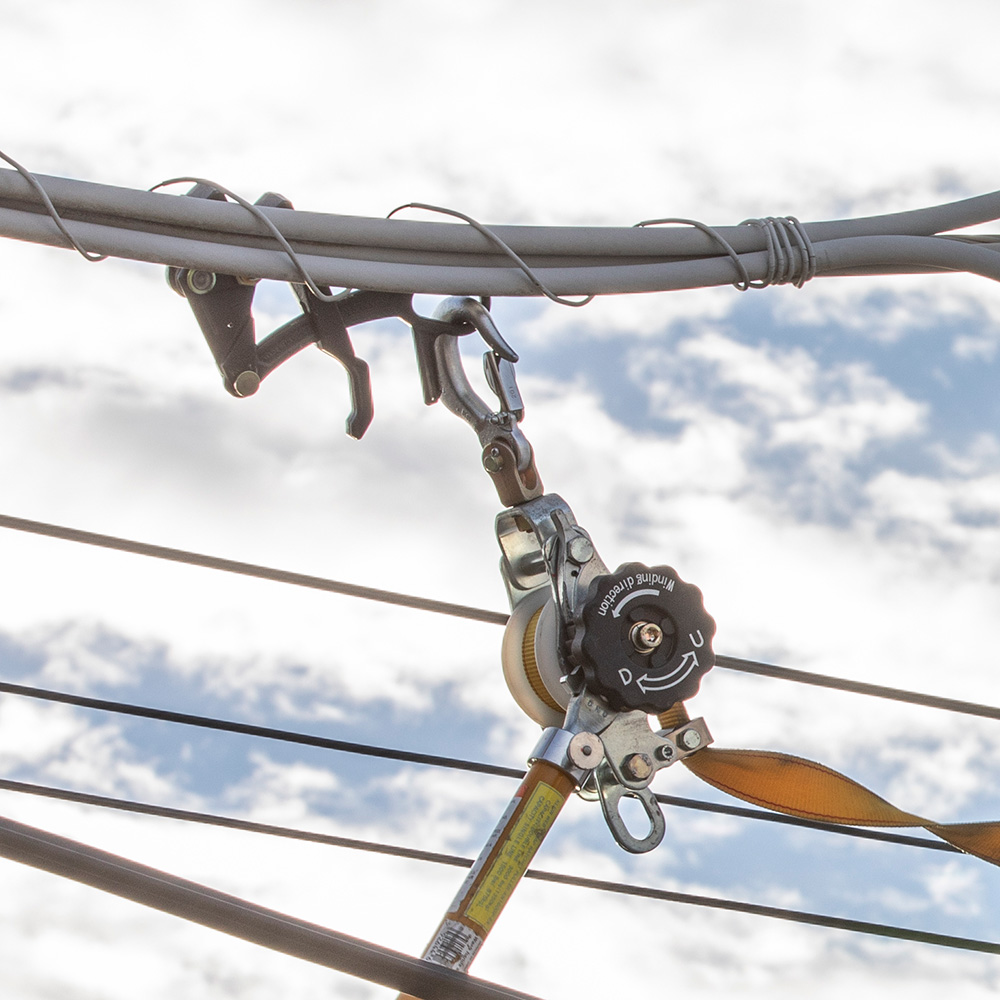

- Large handle opening fits various hooks on hoists, winches, and tackle blocks
- Maximum safe load of 5000 lbs (2268 kg)

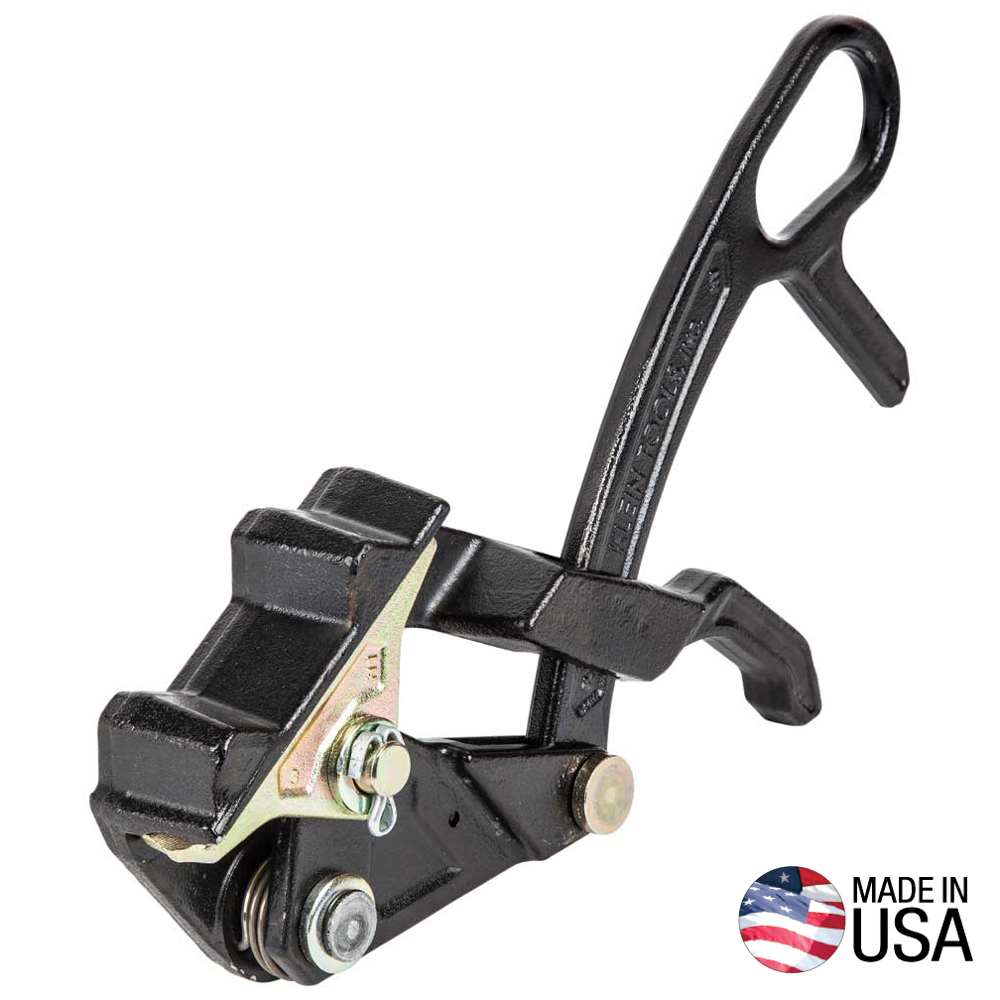

- Made in the USA with patent-pending design
Professional Installation Requirements
- Should be used by trained professionals familiar with wire pulling safety procedures. Inspect grip before each use and ensure proper size and type for the application. Ground or insulate when used near live lines.
Applications

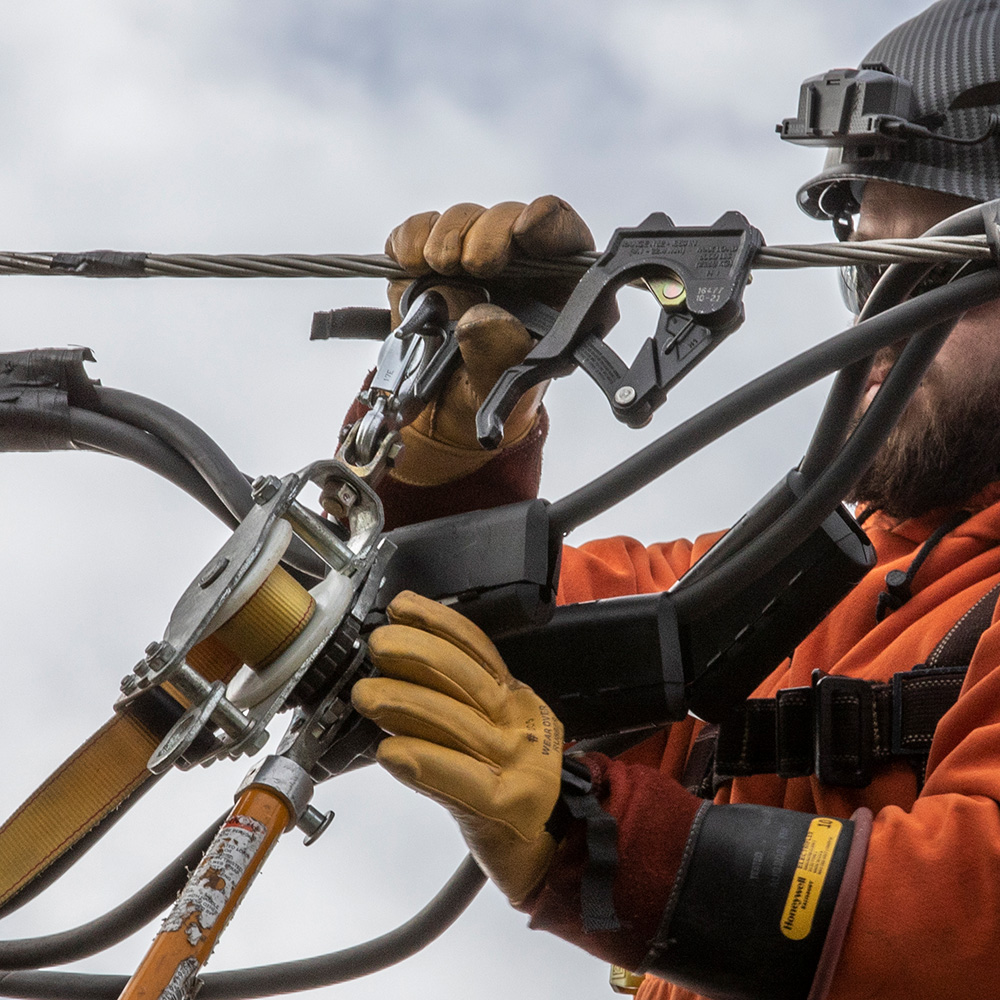

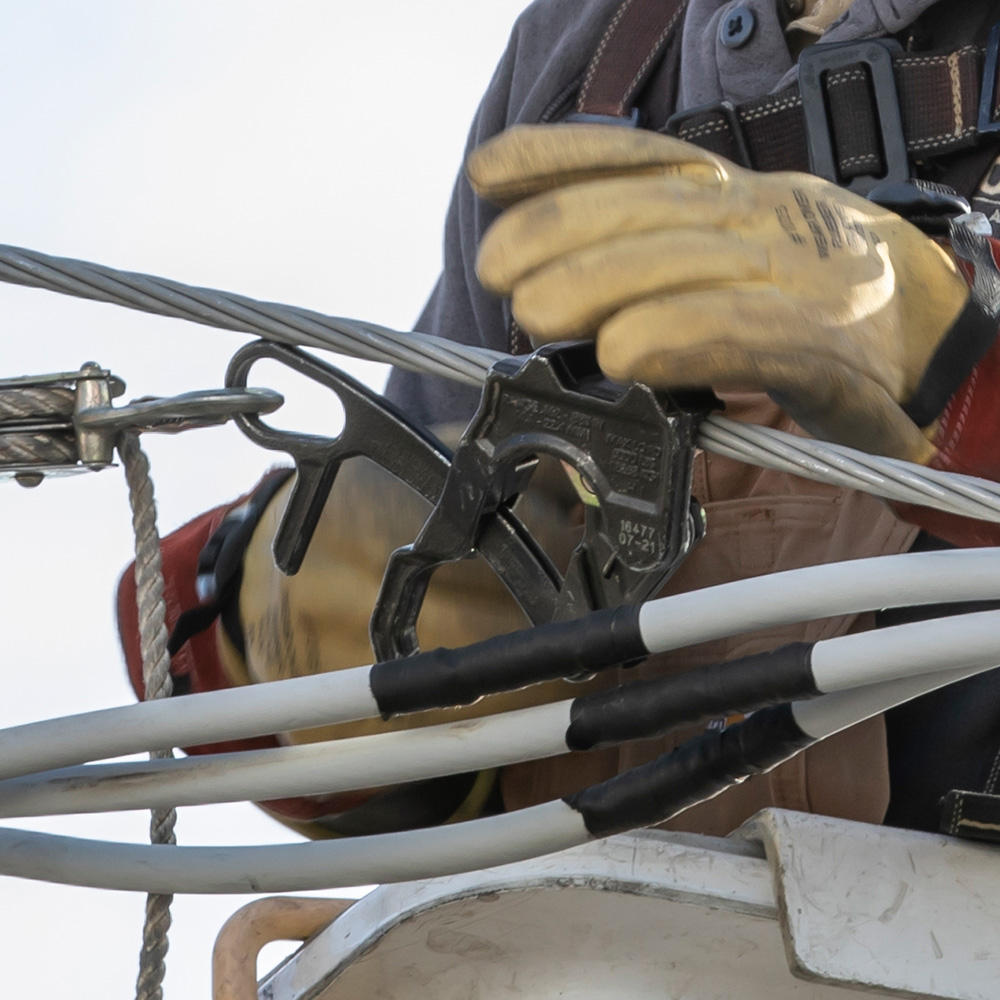

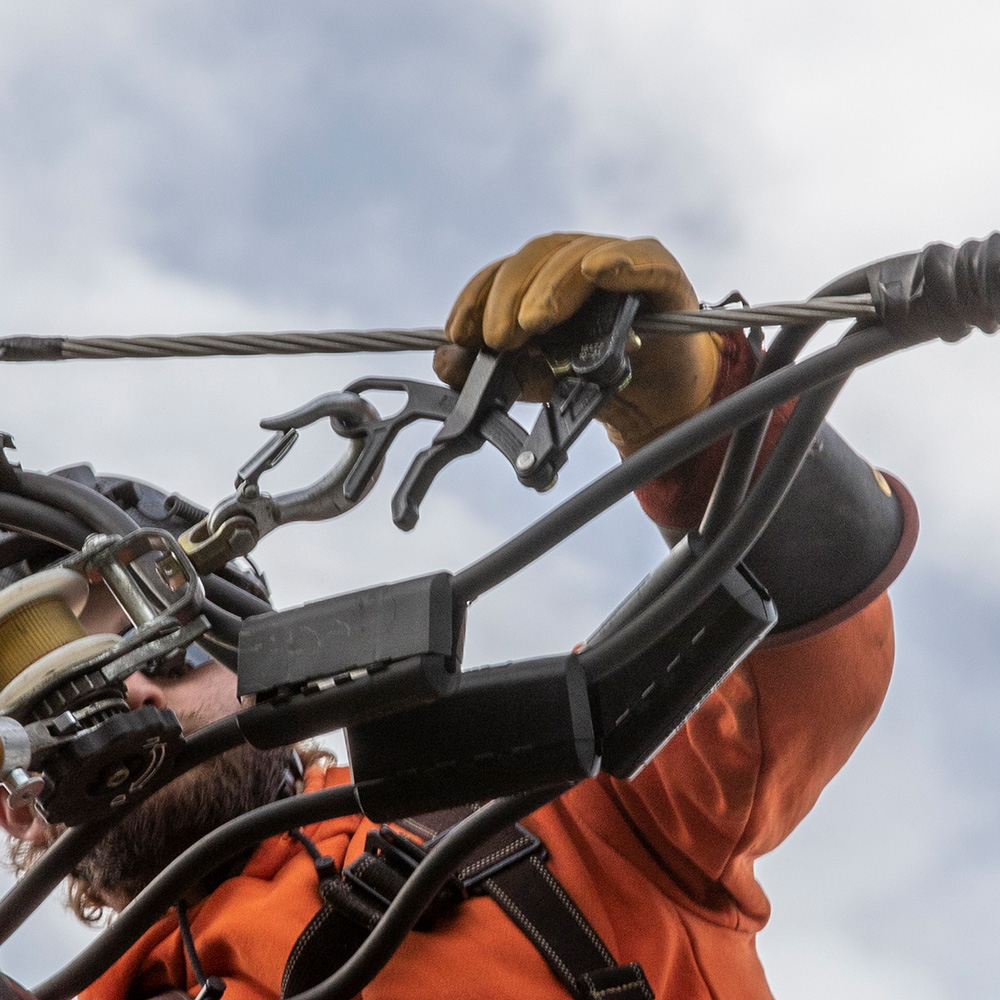

- Wire pulling for bare copper, aluminium, and ACSR cables

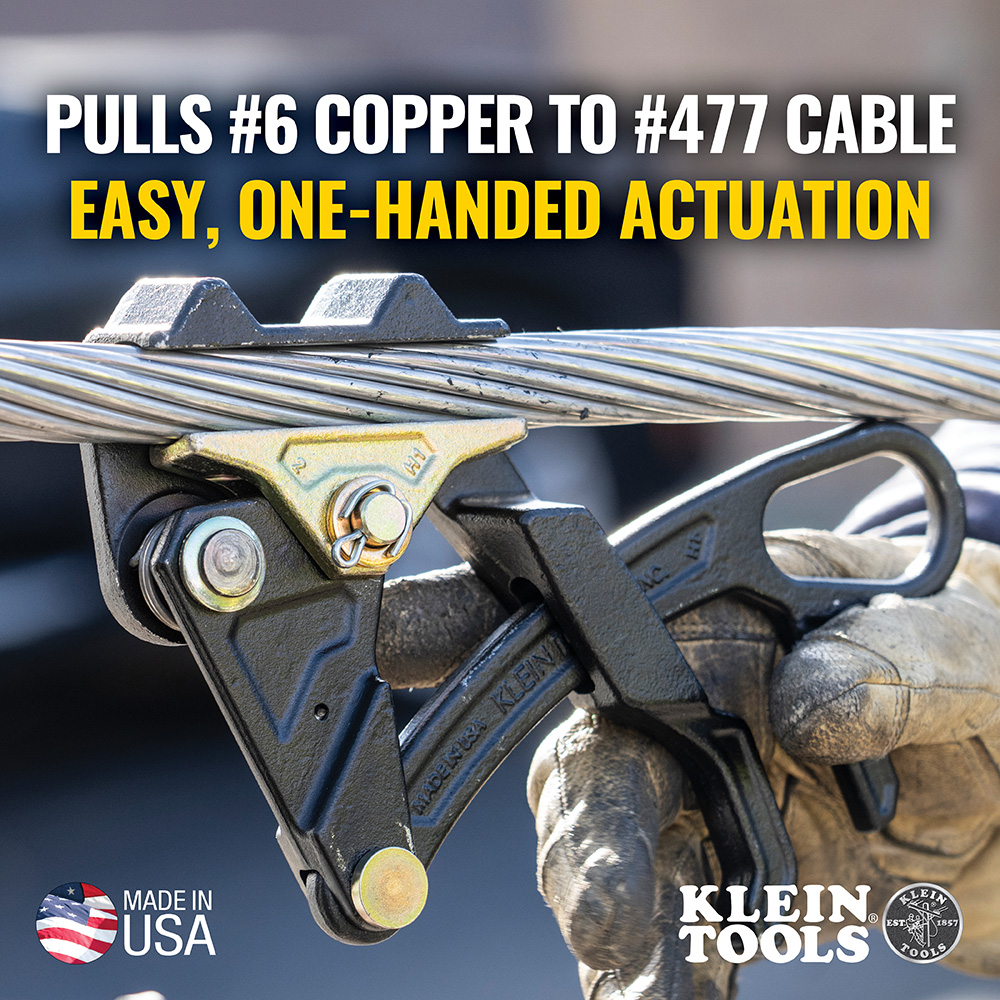

- Suitable for cable sizes from No. 6 Copper to No. 477 ACSR (4.11 to 22.42 mm diameter)
- Temporary installation use in electrical and construction projects
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Lightweight design reduces material usage and energy consumption during handling
- Durable steel construction extends product life, reducing waste
Warranty Information
Warranty details not specified; refer to manufacturer for warranty terms.
Available Now
The Wattmaster Wide-Range Distribution Grip is available for immediate purchase, ideal for electrical contractors and professionals requiring reliable wire pulling grips.
