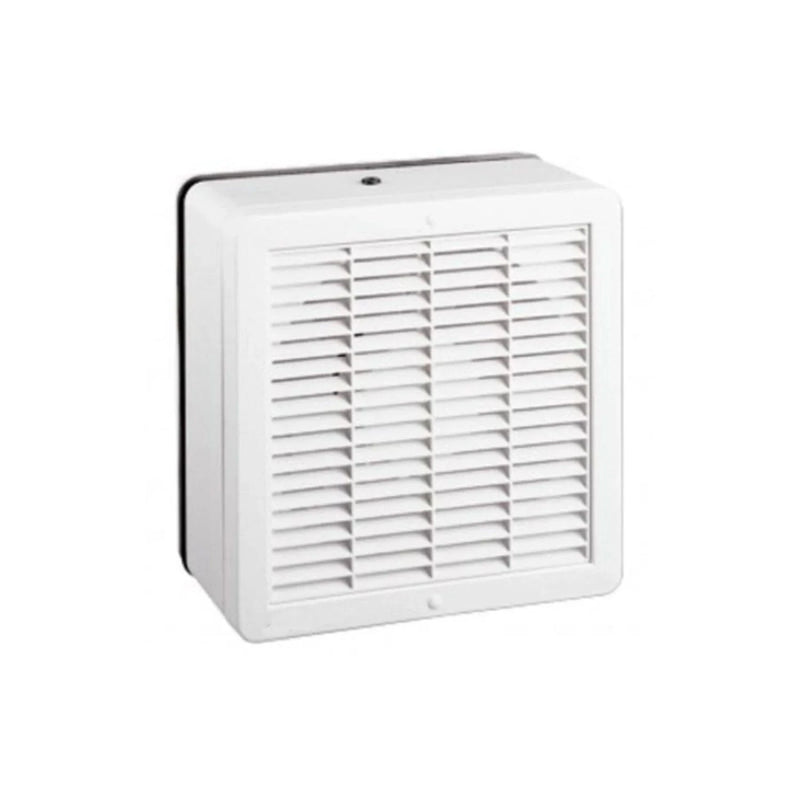

Window Commercial Fan 230mm Pull Cord 152L/s White Ventair
Ventair 230mm window mounted commercial fan, standard model with pull cord control. Rated 152 l/s, 550 m3/h for high-flow ventilation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: WF230P, FAN0148, 230mm window exhaust fan, commercial window ventilation fan
Technical Specifications
- Fan Type: Axial window exhaust fan
- Fan Diameter: 230 mm
- Air Delivery: 152 L/s, 550 m³/h free-air performance
- Motor Power: 45 W
- Motor Type: Ball-bearing motor
- Noise Level: 50 dB(A)
- Control: Integral pull cord with manual shutter operation
- Power Supply: 220–240 V AC, 50 Hz
- Ingress Protection: IPX4
- Glass Cut-Out: 255–270 mm diameter
- Fascia Size: 286 x 286 mm
- Maximum Operating Temperature: 50°C
- Colour: White
- Dimensions (H x L x W): 286mm x 141mm x 286mm
- Weight: 3.5 kg
Key Features
- Designed for window mounting where external wall or ceiling access is limited
- Suitable for commercial ventilation in shops, cafes, restaurants, pubs, hotels and offices
- Integral pull cord provides local on/off control
- Manual louvre shutters operated by the pull cord
- Ball-bearing motor supports extended service life
- High-flow extraction performance of 550 m³/h in free air
- White square fascia suitable for commercial interiors
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. Window glass cutting and mounting should be completed by suitably qualified tradespeople using the specified 255–270 mm diameter cut-out.
Applications
- Commercial shops and retail premises
- Cafes, restaurants and pubs
- Hotels and offices
- Bathrooms, ensuites and utility areas
- Replacement of existing window-mounted exhaust fans
- Ventilation where external wall or ceiling access is unavailable
Standards & Compliance
- AS/NZS 60335.2.80:2016 for the safety of household and similar electrical fans
- AS/NZS 3000 for electrical installation and wiring requirements
Environmental Benefits
- Efficient 45 W motor provides high airflow with a specific fan power of approximately 0.30 W/L/s
- Ball-bearing motor construction can extend service life and reduce replacement waste
- Supports mechanical ventilation that can help manage moisture, odours and indoor air quality
Warranty Information
Five-year product warranty is listed for the model; Ventair warranty terms limit products used in commercial settings to a maximum one-year warranty.
Available Now
Available through authorised Ventair distributors in Australia.
