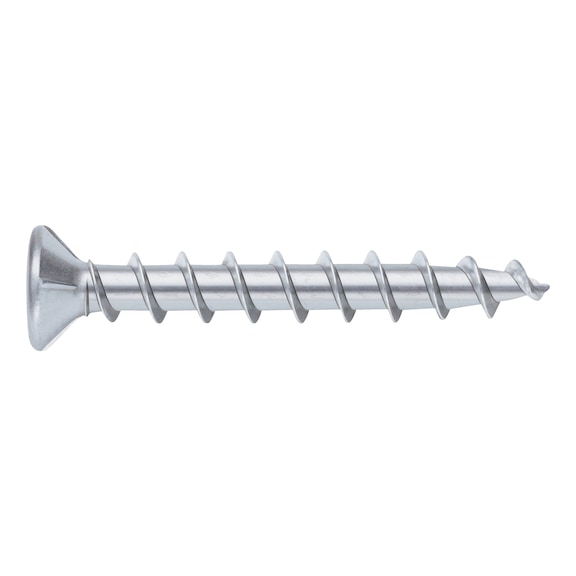

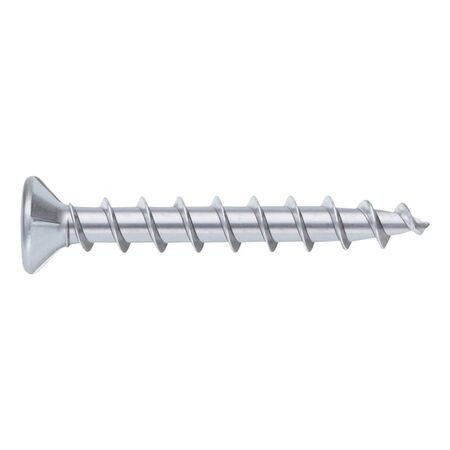

Window Construction Screw FBS | Steel with Zinc Plating | AW20 Drive | Corrosion Resistant | @Pack of 2000 | by Wurth
Window construction screws with a raised countersunk head are perfect for window installation and general construction fastening. Made from steel with a zinc-plated finish, these self-tapping screws feature an AW20 drive and a pinpoint tip for easy penetration. Designed for durability, they offer excellent corrosion resistance, making them ideal for both wood and metal applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw FBS | Steel with Zinc Plating | AW20 Drive | Corrosion Resistant | @Pack of 2000 | by Wurth
Brand: Wurth
SKU: 188294135
Alternatively Known As: Window screw, self-tapping screw, raised countersunk screw, AW20 drive screw, corrosion resistant construction screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated with thick-layer passivation
- Nominal diameter: 4.1 mm
- Length: 35 mm
- Head diameter: 7 mm
- Head height: 2.2 mm
- Internal drive: AW20
- Head type: Raised countersunk head
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Core diameter: 2.5 mm
- Tip shape: Pinpoint
- Product weight per item: 1.926 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.2mm x 35mm x 7mm
- Weight: 0.002 kg
Key Features
- Steel construction with galvanized thick-layer passivation
- Deltacoll-coated for enhanced corrosion protection
- AW20 drive with special thread and needle tip for easy penetration
- Head diameter 7.0 mm with raised countersunk head design
- Thermally stable corrosion protection layer up to 150°C
- Cr(VI)-free corrosion protection
- Salt spray mist tested to DIN EN ISO 9227-NSS for 240 hours without red rust
Professional Installation Requirements
- Installation by a qualified tradesperson or professional is recommended to ensure proper fastening and compliance with building standards.
Applications
- Window construction and installation
- General construction fastening
- Wood and metal fastening requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Cr(VI)-free corrosion protection reduces environmental toxicity
- Long-lasting corrosion resistance extends product life and reduces replacement waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Window Construction Screw FBS 2000 PCS is available for immediate purchase, ideal for window installation and general construction applications.
