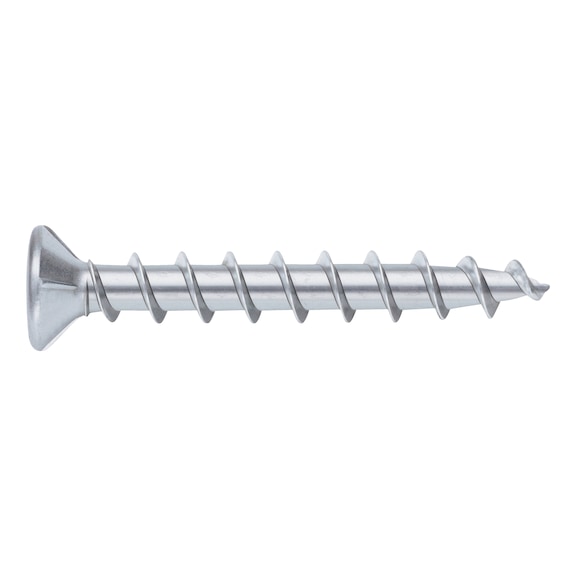

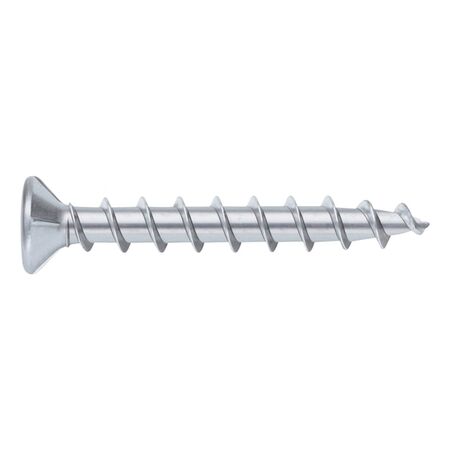

Window Construction Screw FBS | Steel with Zinc Plating | AW20 Drive | Raised Countersunk Head | @Pack of 2000 | by Wurth
Window construction screws with a raised countersunk head are perfect for window installation and general fastening. Made from steel with a zinc-plated finish, these screws feature an AW20 drive and a special needle tip for easy penetration. Ideal for both wood and metal applications, they offer enhanced corrosion resistance, making them a reliable choice for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw FBS | Steel with Zinc Plating | AW20 Drive | Raised Countersunk Head | @Pack of 2000 | by Wurth
Brand: Wurth
SKU: 188294138
Alternatively Known As: Window screw, Raised head screw, Countersunk head screw, Self-tapping construction screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated with thick-layer passivation
- Nominal diameter: 4.1 mm
- Length: 38 mm
- Head diameter: 7 mm
- Head height: 2.2 mm
- Internal drive: AW20
- Head type: Raised countersunk head
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Core diameter: 2.5 mm
- Shape of tip: Pinpoint
- Product weight per item: 2.100 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.2mm x 38mm x 7mm
- Weight: 2.1 kg
Key Features
- Steel construction with galvanized thick-layer passivation
- Deltacoll-coated for enhanced corrosion protection
- AW20 drive with special thread and needle tip for easy penetration
- Head diameter 7.0 mm with raised countersunk head design
- Increased corrosion protection with 240 hours salt-spray mist test compliance
- Thermally stable corrosion protection layer up to 150°C
- Cr(VI)-free corrosion protection layer
Professional Installation Requirements
- Professional installation recommended to ensure proper fastening and compliance with building standards.
Applications
- Window construction and installation
- General construction fastening
- Wood and metal fastening requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Cr(VI)-free corrosion protection reduces environmental and health hazards
- Long-lasting corrosion resistance reduces need for frequent replacements
Warranty Information
Warranty subject to Wurth standard terms and conditions.
Available Now
Wurth Window Construction Screw FBS 2000 PCS is available for immediate purchase, ideal for window construction and general fastening applications.
