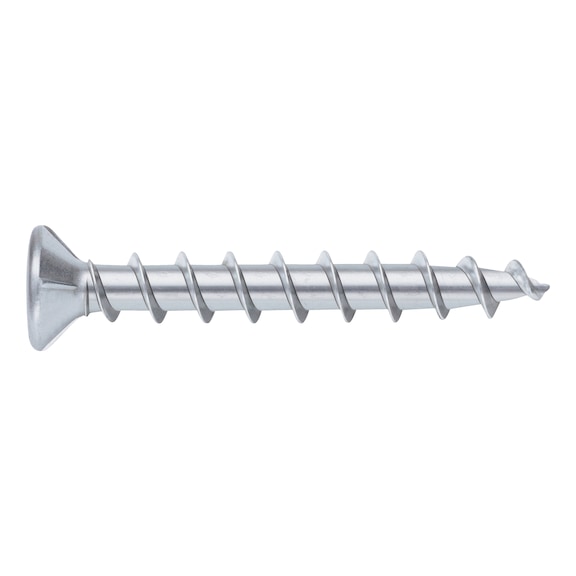

Window Construction Screw FBS | Zinc Plated Steel | PH2 Drive | Raised Countersunk Head | @Pack of 6000 | by Wurth
The Window Construction Screw FBS is designed for reliable fastening in window construction and general applications. Made from zinc plated steel, it features a raised countersunk head and a PH2 drive for easy installation. With enhanced corrosion protection and a thermal stability of up to 150°C, these screws are perfect for both wood and metal fastening in construction projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

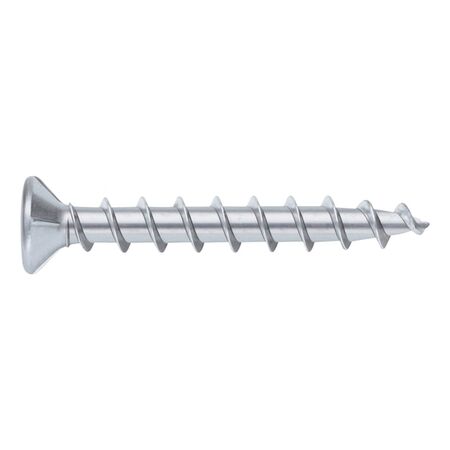

Product Name/Title: Window Construction Screw FBS | Zinc Plated Steel | PH2 Drive | Raised Countersunk Head | @Pack of 6000 | by Wurth
Brand: Wurth
SKU: 185944116
Alternatively Known As: Window screw, Raised head screw, Countersunk head screw, Self-tapping window screw, Zinc plated construction screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated with thick-film passivation
- Nominal diameter: 4.1 mm
- Length: 16 mm
- Head diameter: 7 mm
- Head height: 2.2 mm
- Internal drive: PH2
- Head type: Raised countersunk head
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Core diameter: 2.5 mm
- Tip shape: Pinpoint
- Product weight per item: 0.904 g
- RoHS-compliant: Yes
- Salt spray test: 240 hours without red rust (DIN EN ISO 9227-NSS)
- Thermal stability of corrosion layer: 150°C
- Dimensions (H x L x W): 2.2mm x 16mm x 7mm
- Weight: 0.0009 kg
Key Features
- Steel construction with zinc plating and thick-film passivation
- Deltacoll-coated for enhanced corrosion protection
- PH2 drive with special thread and needle tip for easy installation
- Roller-sorted for consistent quality
- Increased corrosion protection with 240 hours salt-spray test resistance
- Thermally stable corrosion protection layer up to 150°C
- Cr(VI)-free corrosion protection layer
Professional Installation Requirements
- Installation by a qualified tradesperson or professional recommended to ensure proper fastening and compliance with building codes.
Applications
- Window construction and installation
- General wood and metal fastening
- Construction projects requiring corrosion-resistant screws
Standards & Compliance
- Complies with AS/NZS 4785 – Timber screws and fasteners (related to construction & building fasteners)
Environmental Benefits
- Cr(VI)-free corrosion protection reduces environmental toxicity
- Durable coating extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms.
Available Now
Wurth Window Construction Screw FBS 6000 PCS is available for immediate purchase, ideal for window installation and general construction applications.
