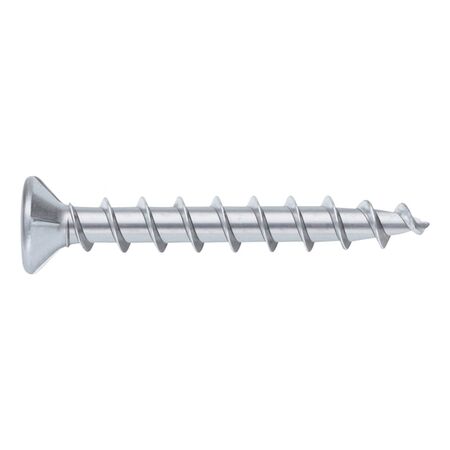

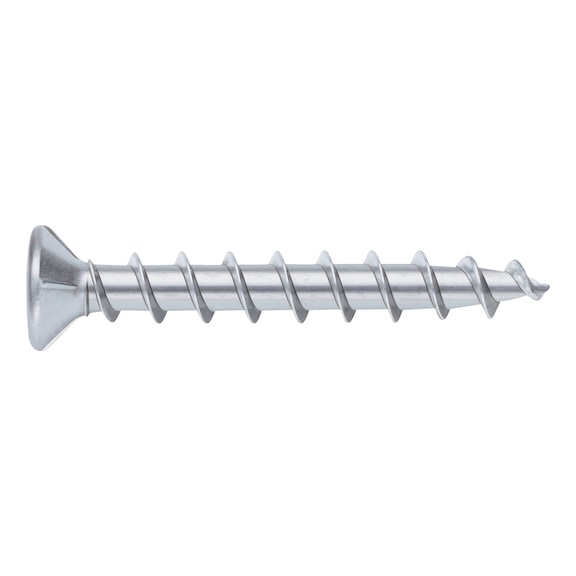

Window Construction Screw FBS | Zinc Plated | Self-Tapping | Raised Countersunk Head | @Pack of 1500 | by Wurth
Window construction screws with a raised countersunk head and zinc plating are perfect for window installation and general construction. Designed for easy installation with a PH2 drive and self-tapping thread, these screws offer enhanced corrosion protection, making them ideal for wood and metal fastening applications. With a durable coating and compliance with strict standards, they ensure long-lasting performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw FBS | Zinc Plated | Self-Tapping | Raised Countersunk Head | @Pack of 1500 | by Wurth
Brand: Wurth
SKU: 185944145
Alternatively Known As: Window screw, Raised countersunk head screw, FBS screw, Zinc plated construction screw, Self-tapping window screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated with thick-film passivation
- Nominal diameter: 4.1 mm
- Length: 45 mm
- Head diameter: 7 mm
- Head height: 2.2 mm
- Internal drive: PH2
- Head type: Raised countersunk head
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Core diameter: 2.5 mm
- Tip shape: Pinpoint
- Product weight per item: 2.380 g
- RoHS-compliant: Yes
- Salt spray test: 240 hours without red rust (DIN EN ISO 9227-NSS)
- Thermal stability of corrosion layer: 150°C
- Dimensions (H x L x W): 2.2mm x 45mm x 7mm
- Weight: 0.00238 kg
Key Features
- Steel construction with zinc plating and thick-film passivation
- Deltacoll-coated for enhanced corrosion protection
- PH2 drive with special thread and needle tip for easy installation
- Roller-sorted for consistent quality
- Increased corrosion protection with 240 hours salt-spray mist test compliance
- Thermally stable corrosion protection layer up to 150°C
- Cr(VI)-free corrosion protection layer
Professional Installation Requirements
- Installation by a qualified tradesperson or professional is recommended to ensure proper fastening and compliance with building standards.
Applications
- Window construction and installation
- General construction requiring corrosion-resistant screws
- Wood and metal fastening applications
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Cr(VI)-free corrosion protection reduces environmental and health hazards
- Durable coating extends product life reducing replacement frequency
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms.
Available Now
Wurth Window Construction Screw Raised Countersunk Head FBS 1500 PCS is available for immediate purchase, ideal for window installation and general construction applications.
