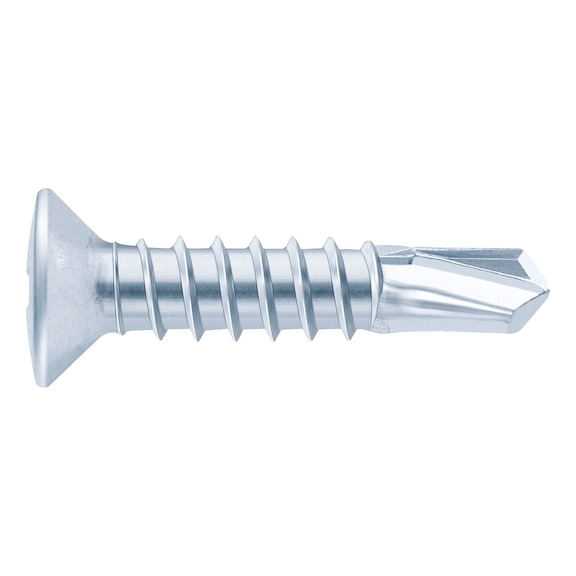

Window Construction Screw FEBOS®plus | Self-Drilling & Raised Countersunk Head | Zinc-Plated Steel | @Pack of 2500 | by Wurth
The Window Construction Screw FEBOS®plus is a self-drilling solution designed for UPVC window construction, featuring a raised countersunk head and durable zinc-plated steel. Ideal for professional installation, this screw ensures secure fastening of UPVC profiles with metal reinforcement, making it perfect for both residential and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw FEBOS®plus | Self-Drilling & Raised Countersunk Head | Zinc-Plated Steel | @Pack of 2500 | by Wurth
Brand: Wurth
SKU: 207683932
Alternatively Known As: Self-drilling window screw, UPVC construction screw, Raised countersunk head screw, FEBOS plus screw, Zinc plated window screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated
- RoHS-compliant: Yes
- Thread type x nominal diameter (d1): ST3.9
- Length (l1): 32 mm
- Head diameter (dk): 7 mm
- Head height (k1): 2.7 mm
- Drill tip length (lp): 6 mm
- Drill tip diameter (dp): 3.2 mm
- Internal drive: H2 (PH drive)
- Head type: Raised countersunk head
- Shape of tip: Drilling tip
- Thread design: Full thread
- Thread type: Self-tapping screw thread
- Dimensions (H x L x W): 2.7mm x 32mm x 7mm
- Weight: 0.05 kg
Key Features
- Self-drilling window construction screw
- Raised countersunk head design
- Tapping screw thread with full thread design
- Steel material with zinc plating and blue passivation
- PH (H2) internal drive
- Drilling tip shape for efficient penetration
Professional Installation Requirements
- Installation should be performed by professionals familiar with UPVC window construction and metal reinforcement fastening to ensure secure and compliant assembly.
Applications
- UPVC window construction
- Connecting UPVC profiles with metal reinforcement up to 2.5 mm
- Securing fittings on profiles with metal stiffening up to 2.5 mm
- Use in automatic systems and roller-sorted applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth Window Construction Screw FEBOS®plus is available for immediate purchase, ideal for UPVC window manufacturing and installation applications.
