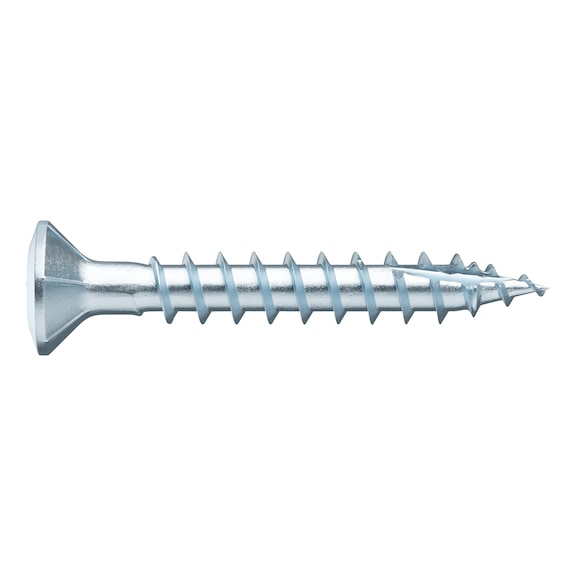

Window Construction Screw Full Thread & Raised Countersunk Head Zinc Plated Variant-1 Wurth

BRAND: Wurth
SKU: 190513530
$149.10 List price: $187.40
1000 PCS ($0.15 per PCS)
+ −
30 Days Return Electricians Unlock Trade Access
The ASSY® 4 FBS CUT RCS window construction screw is designed for optimal performance in window fittings and furniture assembly.
Technical Specifications
  • Dimensions (H x L x W): 3mm x 30mm x 7mm
  • Weight: 0.0014 kg
Key Features
  • Full-thread screw with raised countersunk head and restraining ribs for gentle attachment of window fittings in hardwoods in indoor dry or sheltered areas
  • Ideal power transmission thanks to RW drive
  • More power due to larger contact area at the bit
  • More stability, one-handed working, precise positioning due to the tight-fit recess and perfect fit of the bit
  • Fewer bit changes, one bit for many screw diameters
  • Compatibility with previous AW drive
  • Lens-shaped, rounded head for a visually appealing window fitting connection
  • Torque-absorbing effect of the restraining ribs prevents screw overturning and head damage
  • No over-tightening or stripping and high feed
  • Higher power transmission in hardwoods due to reinforced, asymmetrical thread flank geometry of the coarse thread
  • Better anchoring thanks to higher thread flanks
  • Easy recessing and quick biting of the screw in hardwoods
  • Quick set-up thanks to the slim tip
  • Semi-circular and sharp-edged milling element facilitates fibre separation in hardwoods
Professional Installation Requirements
  • Recommended installation using suitable machines such as Würth BS 12-A Power or Würth BS 14-A Combi for optimal performance and safety.
Applications
  • Windows
  • Fitting
  • Furniture
  • Suitable for use in wood, derived timber products, softwood, board plywood (BSP), hardwood, LVL
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads) for construction and building applications
Environmental Benefits
  • RoHS-compliant material ensures reduced hazardous substances
  • Durable zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information

Warranty details available upon request from Wurth; product complies with ETA-11/0190 approval and EU Declaration of Performance (EU-CPR).

Available Now

Available for immediate purchase, ideal for window construction, furniture assembly, and timber fitting applications.
