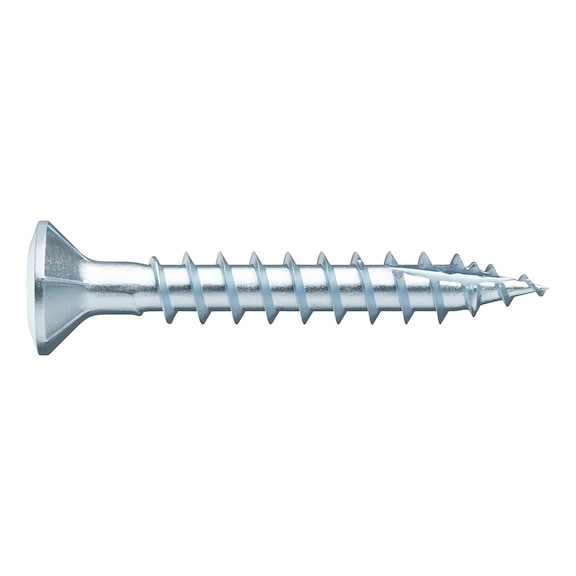

Window Construction Screw | Full Thread & Raised Countersunk Head | Zinc Plated | @Pack of 1000 | by Wurth
The ASSY® 4 FBS CUT RCS window construction screw is designed for optimal performance in window fittings, featuring a full thread and raised countersunk head for a secure fit. Ideal for hardwood applications, it ensures stability and precise positioning with its unique RW drive and torque-absorbing ribs. Perfect for professional installation in window construction and furniture assembly, this pack of 1000 screws is a reliable choice for any project.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Full Thread & Raised Countersunk Head | Zinc Plated | @Pack of 1000 | by Wurth
Brand: Wurth
SKU: 190514020
Alternatively Known As: Window construction screw, Full thread wood screw, Raised countersunk head screw, Zinc plated timber screw, RW drive screw
Technical Specifications
- Dimensions (H x L x W): 2.5mm x 20mm x 7.2mm
- Weight: 0.0012 kg
Key Features
- Full-thread screw with raised countersunk head and restraining ribs for gentle attachment of window fittings in hardwoods
- Ideal power transmission due to RW drive with larger contact area at the bit
- More stability and precise positioning with tight-fit recess and perfect bit fit
- Fewer bit changes needed, one bit for many screw diameters
- Compatibility with previous AW drive
- Lens-shaped, rounded head for visually appealing window fitting connections
- Torque-absorbing restraining ribs prevent overturning and head damage
- Reinforced asymmetrical thread flank geometry for higher power transmission in hardwoods
- Higher thread flanks for better anchoring
- Slim tip allows quick set-up and easy recessing in hardwoods
- Semi-circular and sharp-edged milling element facilitates fibre separation in hardwoods
Professional Installation Requirements
- Recommended installation using suitable machines such as Würth BS 12-A Power or Würth BS 14-A Combi for optimal performance and safety.
Applications
- Window construction
- Fitting attachment
- Furniture assembly
- Suitable for use in wood, derived timber products, softwood, board plywood (BSP), hardwood, LVL
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads) for construction applications
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty details available upon request from Wurth; product approved under ETA-11/0190 and Declaration of Performance (EU-CPR) compliant.
Available Now
Available for immediate purchase, ideal for window construction, fitting, and furniture assembly applications.
