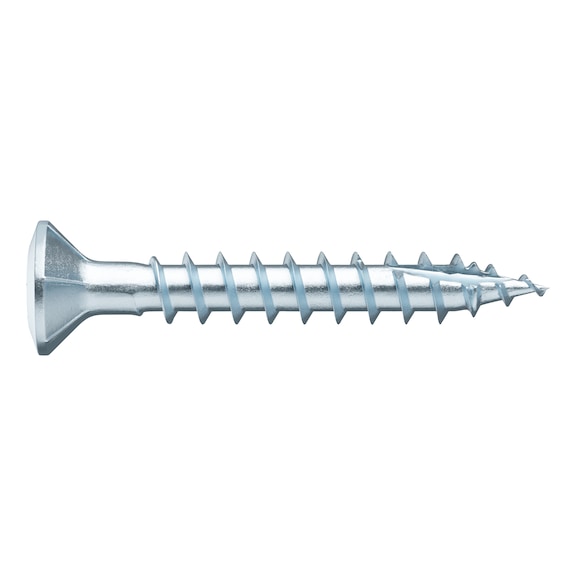

Window Construction Screw | Full Thread & Raised Countersunk Head | Zinc Plated | @Pack of 500 | by Wurth
The ASSY® 4 FBS CUT RCS window construction screw is designed for optimal fastening in window applications, featuring a full thread and raised countersunk head for a secure fit. Made from hardened steel with a durable zinc plating, this screw ensures stability and precise positioning, making it ideal for professionals in window construction and furniture assembly.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Full Thread & Raised Countersunk Head | Zinc Plated | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 190514045
Alternatively Known As: Window construction screw, Full thread wood screw, Raised countersunk head screw, Zinc plated wood screw, RW drive screw
Technical Specifications
- Material: Hardened steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Nominal diameter: 4 mm
- Length: 45 mm
- Head diameter: 7.2 mm
- Head height: 2.5 mm
- Internal drive: RW20
- Thread length: 37 mm
- Head type: Raised countersunk head with restraining ribs
- Thread type: Wood screw thread, full thread, single start
- Core diameter: 2.5 mm
- Tip shape: Tip with a scraper groove
- Tip angle: 20 degrees
- Colour: Silver
- Product weight per item: 2.381 g
- Screw-in angle range: 0 to 90 degrees
- Suitable materials: Wood, derived timber products, softwood, board plywood (BSP), hardwood, LVL
- Suitable machines: Würth BS 12-A Power, Würth BS 14-A Combi
- Approval: ETA-11/0190
- Declaration of performance (EU-CPR): Yes
- Dimensions (H x L x W): 2.5mm x 45mm x 7.2mm
- Weight: 0.0024 kg
Key Features
- Full-thread screw with raised countersunk head and restraining ribs for gentle attachment of window fittings in hardwoods
- Ideal power transmission due to RW drive with larger contact area at the bit
- More stability and precise positioning with tight-fit recess and perfect bit fit
- Fewer bit changes needed, one bit fits many screw diameters
- Compatibility with previous AW drive
- Lens-shaped, rounded head for visually appealing window fitting connections
- Torque-absorbing restraining ribs prevent overturning and head damage
- No over-tightening or stripping with high feed rate
- Reinforced asymmetrical thread flank geometry for higher power transmission in hardwoods
- Better anchoring with higher thread flanks
- Easy recessing and quick biting in hardwoods
- Slim tip allows quick set-up
- Semi-circular and sharp-edged milling element facilitates fibre separation in hardwoods
Professional Installation Requirements
- Professional installation recommended for optimal fastening and structural integrity, especially in window construction applications.
Applications
- Window construction
- Fitting attachment
- Furniture assembly
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty information available upon request from Wurth; typically covers manufacturing defects.
Available Now
Available for immediate purchase, ideal for window construction, fitting, and furniture assembly applications.
