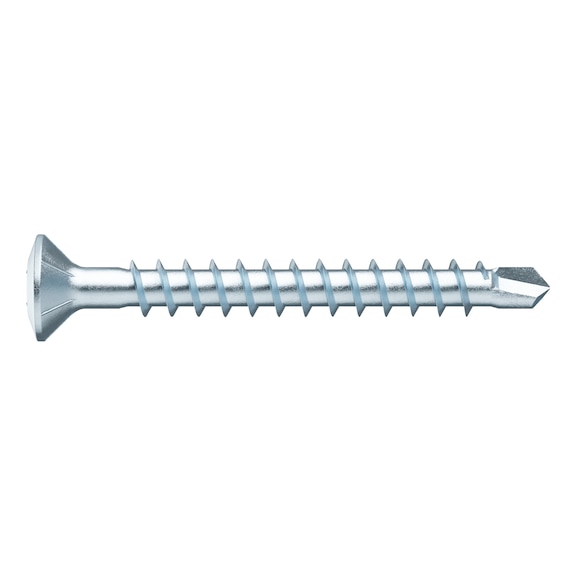

Window Construction Screw | Hardened Steel | Zinc-Plated | Full Thread | @Pack of 500 | by Wurth
The ASSY®plus 4 FBS RCS window construction screw is designed for reliable fastening in window construction, featuring a hardened steel body and zinc-plated finish for durability. With a full thread and raised countersunk head, it ensures gap-free installation without pre-drilling, making it ideal for both professional tradespeople and DIY enthusiasts. Perfect for mounting metal fittings to timber windows and furniture assembly.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Hardened Steel | Zinc-Plated | Full Thread | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 178744040
Alternatively Known As: Window construction screw, timber window screw, zinc-plated wood screw, raised countersunk head screw, full thread wood screw
Technical Specifications
- Material: Hardened steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Nominal diameter: 4 mm
- Length: 40 mm
- Head diameter: 7 mm
- Head height: 1.6 mm
- Internal drive: RW20
- Thread length: 30 mm
- Screw-thread length with drill tip: 33.5 mm
- Head type: Raised countersunk head with restraining ribs
- Thread type: Wood screw thread, full thread, single start
- Core diameter: 2.5 mm
- Tip shape: Drilling tip
- Min screw-in angle: 0 degrees
- Max screw-in angle: 90 degrees
- Suitable materials: Board ply wood, wood, derived timber products, hardwood, LVL, softwood, construction timber, OSB, chipboard, solid wood panel
- Area of application: Windows, fittings, furniture
- Approval: ETA-11/0190
- Declaration of performance (EU-CPR): Yes
- Dimensions (H x L x W): 1.6mm x 40mm x 7mm
- Weight: 0.00225 kg
Key Features
- Full threaded screw with raised countersunk head and restraining ribs for gap-free fastening close to edges
- Suitable for mounting metal fittings to timber windows without pre-drilling
- Ideal power transmission with RW drive and larger contact area at the bit
- One-handed working with precise positioning due to tight-fit recess and perfect bit fit
- Compatibility with previous AW drive
- Lens-shaped, rounded head for visually appealing window fitting connections
- Spring-loaded effect of restraining ribs prevents screw overturning and head damage
- Asymmetrical single thread for maximum reliability
- Optimal matching of drill tip and thread geometry
- Excellent anchoring in wood due to asymmetrical thread flanks
- Small edge distances possible with wedge-shaped drill tip and parallel cutting edges
- Assembly without gaps, preventing wood splitting and rupture
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and structural integrity.
Applications
- Window construction
- Mounting metal fittings to timber windows
- Furniture assembly
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Warranty details available upon request from Wurth; typically covered against manufacturing defects.
Available Now
Available for immediate purchase, ideal for window construction and timber fastening applications.
