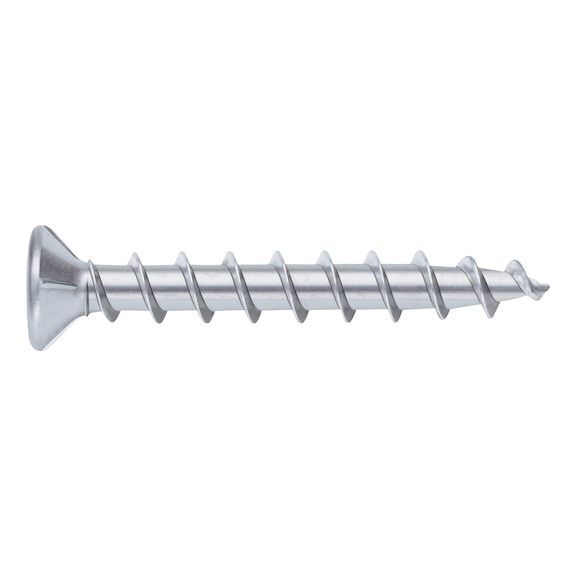

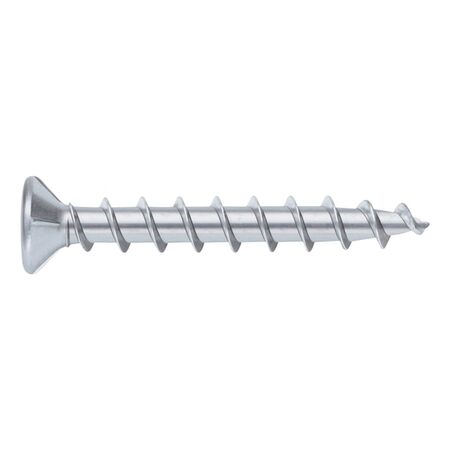

Window Construction Screw | Raised Countersunk Head | Zinc Plated | Corrosion Resistant | @Pack of 5000 | by Wurth
Window construction screws with a raised countersunk head and zinc plating are perfect for window installation and general fastening. Designed for easy installation with a PH2 drive and needle tip, these self-tapping screws offer enhanced corrosion resistance, making them ideal for wood and metal applications. With a Deltacoll coating, they ensure long-lasting durability and compliance with building standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Raised Countersunk Head | Zinc Plated | Corrosion Resistant | @Pack of 5000 | by Wurth
Brand: Wurth
SKU: 185944119
Alternatively Known As: Window screw, Raised head screw, Countersunk head screw, Self-tapping screw, Zinc plated screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated with thick-film passivation
- Nominal diameter: 4.1 mm
- Length: 19 mm
- Head diameter: 7 mm
- Head height: 2.2 mm
- Internal drive: PH2
- Head type: Raised countersunk head
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Core diameter: 2.5 mm
- Tip shape: Pinpoint
- Product weight per item: 1.050 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.2mm x 19mm x 7mm
- Weight: 0.00105 kg
Key Features
- Steel construction with zinc plating and thick-film passivation
- Deltacoll-coated for enhanced corrosion protection
- PH2 drive with special thread and needle tip for easy installation
- Roller-sorted for consistent quality
- Increased corrosion protection with 240 hours salt-spray test without red rust
- Thermally stable corrosion protection layer up to 150°C
- Cr(VI)-free corrosion protection layer
Professional Installation Requirements
- Installation by a qualified tradesperson or professional recommended to ensure proper fastening and compliance with building standards.
Applications
- Window construction and installation
- General construction fastening
- Wood and metal fastening requiring corrosion resistance
Standards & Compliance
- AS/NZS 4785 – Fasteners for general engineering and construction
Environmental Benefits
- Cr(VI)-free corrosion protection reduces environmental and health hazards
- Long-lasting corrosion resistance reduces need for frequent replacements
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms.
Available Now
Wurth Window Construction Screw Raised Countersunk Head FBS 5000 PCS is available for immediate purchase, ideal for window construction and general fastening applications.
