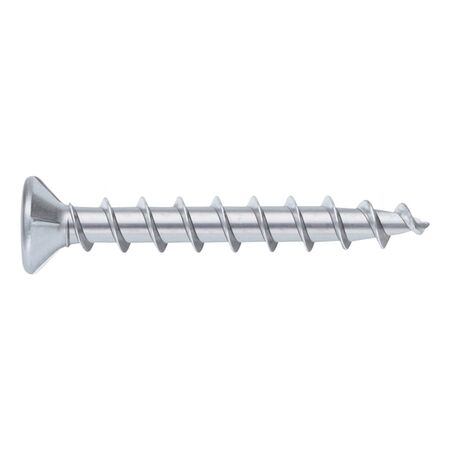

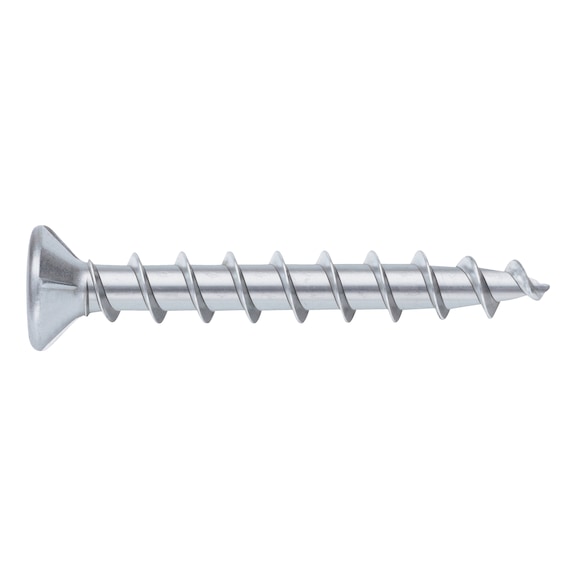

Window Construction Screw | Raised Countersunk Head | Zinc Plated | @Pack of 1000 | by Wurth
Window construction screws with a raised countersunk head and zinc plating are perfect for window installation and general construction fastening. Designed for wood and metal applications, these self-tapping screws feature a PH2 drive and a pinpoint tip for easy installation, ensuring reliable performance and enhanced corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Raised Countersunk Head | Zinc Plated | @Pack of 1000 | by Wurth
Brand: Wurth
SKU: 185944150
Alternatively Known As: Window screws, construction screws, raised countersunk screws, self-tapping screws, zinc plated screws
Technical Specifications
- Material: Steel
- Surface: Zinc plated with thick-film passivation
- Nominal diameter: 4.1 mm
- Length: 50 mm
- Head diameter: 7 mm
- Head height: 2.2 mm
- Internal drive: PH2
- Head type: Raised countersunk head
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Core diameter: 2.5 mm
- Shape of tip: Pinpoint
- Product weight per item: 2.63 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.2mm x 50mm x 7mm
- Weight: 2.63 kg
Key Features
- Steel construction with zinc plating and thick-film passivation
- Deltacoll-coated for enhanced corrosion protection
- PH2 drive with special thread and needle tip for easy installation
- Roller-sorted for consistent quality
- Raised countersunk head with 7.0 mm diameter
- Increased corrosion protection with 240 hours salt-spray mist test compliance
- Thermally stable corrosion protection layer up to 150°C
- Cr(VI)-free corrosion protection layer
Professional Installation Requirements
- Installation by a qualified tradesperson or professional recommended to ensure proper fastening and compliance with building standards.
Applications
- Window construction and installation
- General construction fastening
- Wood and metal fastening requiring corrosion resistance
Standards & Compliance
- AS/NZS 4785 – Fasteners for timber and general construction
Environmental Benefits
- Cr(VI)-free corrosion protection reduces environmental and health hazards
- Long-lasting corrosion resistance reduces need for frequent replacements
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms.
Available Now
Wurth Window Construction Screws are available for immediate purchase, ideal for window installation and general construction applications.
