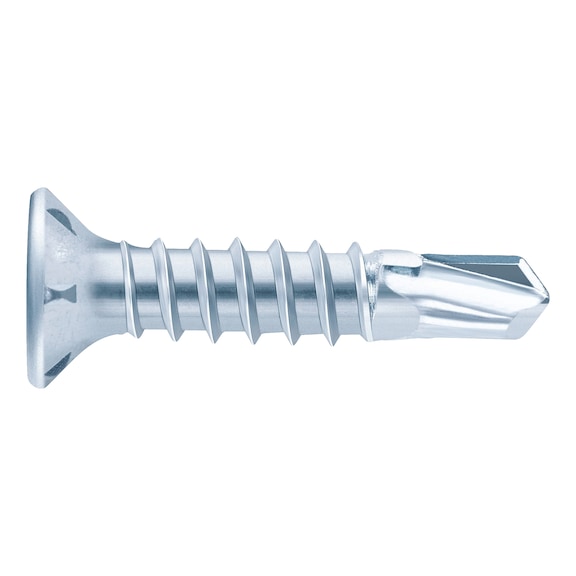

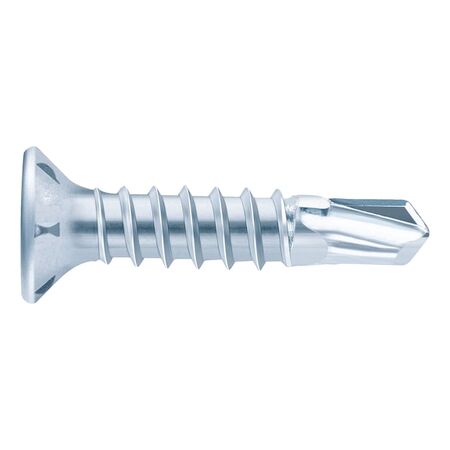

Window Construction Screw | Self-Drilling & Countersunk Milling Head | FEBOS®plus Steel | Zinc-Plated | @Pack of 1000 | by Wurth
The Window Construction Screw features a self-drilling design and a countersunk milling head, making it ideal for securing plastic window profiles with metal reinforcement. Crafted from FEBOS®plus steel and zinc-plated for durability, this screw ensures a secure fastening in various applications, including automatic systems and roller-sorted setups. Perfect for professionals seeking reliable performance in window construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Self-Drilling & Countersunk Milling Head | FEBOS®plus Steel | Zinc-Plated | @Pack of 1000 | by Wurth
Brand: Wurth
SKU: 207583932
Alternatively Known As: Window frame screw, self-tapping window screw, plastic window screw, metal reinforcement screw, countersunk head screw
Technical Specifications
- Material: FEBOS®plus Steel
- Surface: Zinc plated, blue passivated
- Nominal diameter: 3.9 mm
- Length: 32 mm
- Head diameter: 7.5 mm
- Head height: 3.05 mm
- Drill tip length: 6 mm
- Internal drive: PH (H2)
- Head type: Countersunk milling head
- Drill tip diameter: 3.2 mm
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- RoHS-compliant: Yes
- Other standard: WN 207
- Dimensions (H x L x W): 3.05mm x 32mm x 7.5mm
- Weight: 0.05 kg
Key Features
- Self-drilling and self-tapping screw thread
- Countersunk milling head with PH (H2) internal drive
- Made from FEBOS®plus steel with zinc plating and blue passivation
- Full thread design for secure fastening
- Drill tip diameter 3.2 mm with drilling tip shape
- Head diameter 7.5 mm and head height 3.05 mm
Professional Installation Requirements
- Installation by a qualified professional or experienced tradesperson is recommended to ensure proper fastening and safety.
Applications
- Connecting plastic window profiles with metal reinforcement up to 2.5 mm
- Securing fittings on profiles with metal stiffening up to 2.5 mm
- Use in plastic window construction
- Suitable for automatic systems and roller-sorted applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable zinc plating and passivation extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase, ideal for plastic and metal window construction applications.
