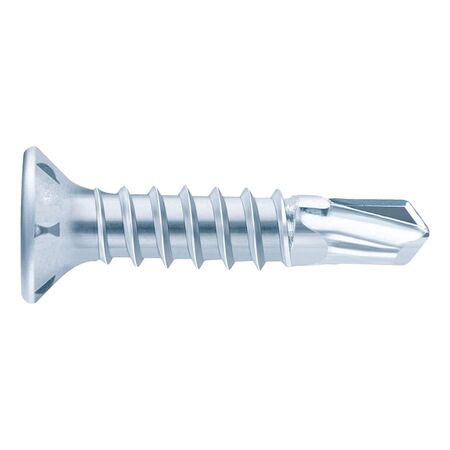

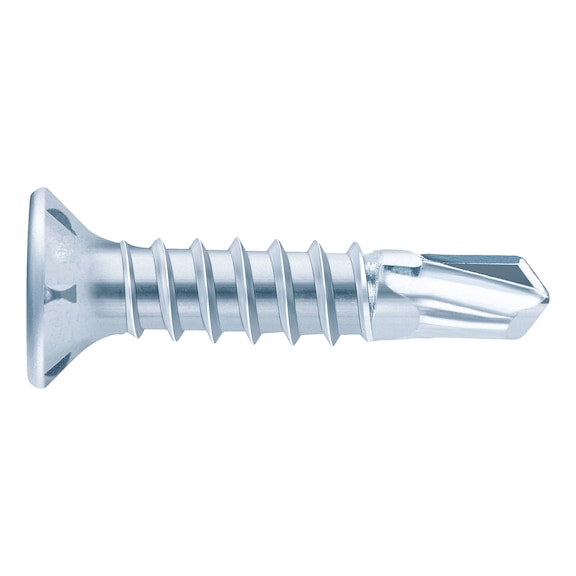

Window Construction Screw | Self-Drilling & Countersunk Milling Head | FEBOS®plus Steel | Zinc-Plated | @Pack of 2000 | by Wurth
The Window Construction Screw features a self-drilling design and a countersunk milling head, making it perfect for efficient installation in plastic window profiles. Crafted from FEBOS®plus steel and zinc-plated for corrosion resistance, this screw is ideal for securing fittings with metal reinforcement. With a PH drive for secure engagement, it's a reliable choice for professional window construction applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Self-Drilling & Countersunk Milling Head | FEBOS®plus Steel | Zinc-Plated | @Pack of 2000 | by Wurth
Brand: Wurth
SKU: 207583938
Alternatively Known As: Self-drilling window screw, plastic window screw, countersunk milling head screw, PH drive screw, zinc-plated construction screw
Technical Specifications
- Material: FEBOS®plus Steel
- Surface: Zinc plated, blue passivated
- Nominal diameter (d1): 3.9 mm
- Length (l1): 38 mm
- Head diameter (dk): 7.5 mm
- Head height (k1): 3.05 mm
- Drill tip length (lp): 6 mm
- Internal drive: H2 (PH drive)
- Head type: Countersunk milling head
- Drill tip diameter: 3.2 mm
- Shape of tip: Drilling tip
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Other standard: WN 207
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.05mm x 38mm x 7.5mm
- Weight: 0.05 kg
Key Features
- Self-drilling and self-tapping screw thread for efficient installation
- Countersunk milling head for flush fitting
- Made from FEBOS®plus steel with zinc plating and blue passivation for corrosion resistance
- Head diameter of 7.5 mm and drill tip diameter of 3.2 mm
- Full thread design for strong fastening
- Internal H2 drive (PH drive) for secure screw engagement
Professional Installation Requirements
- Professional installation recommended to ensure proper fastening and structural integrity, especially in window construction applications.
Applications
- Connecting plastic window profiles with metal reinforcement up to 2.5 mm
- Securing fittings on profiles with metal stiffening up to 2.5 mm
- Use in automatic systems and roller-sorted applications in window construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating and passivation extend product life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Available for immediate purchase. Ideal for plastic window construction and metal reinforcement fastening applications.
