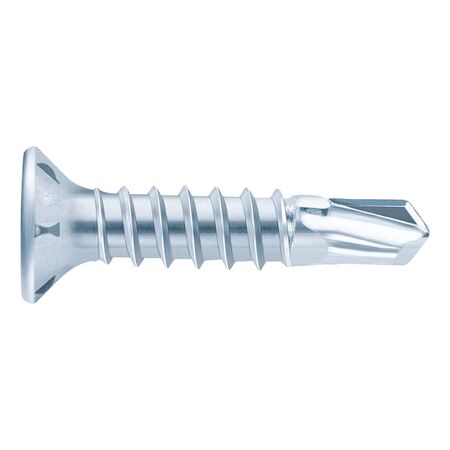

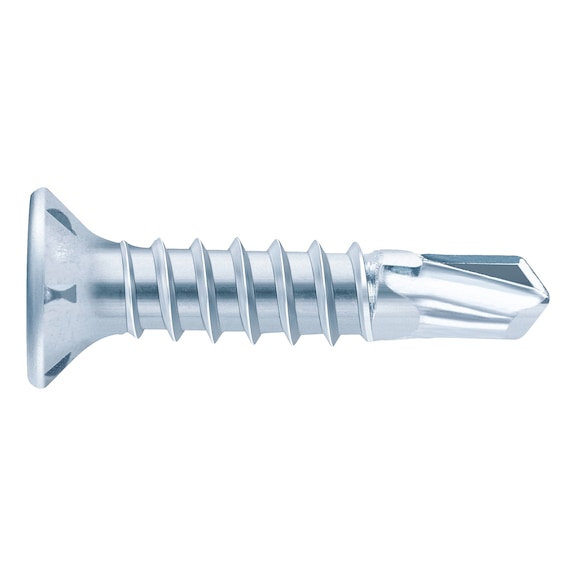

Window Construction Screw Self-Drilling & Countersunk Milling Head FEBOS®plus Steel Variant-4 Wurth

BRAND: Wurth
SKU: 207583922
$555.70 List price: $698.50
4000 PCS ($0.14 per PCS)
+ −
30 Days Return Electricians Unlock Trade Access
Window construction screw designed for self-drilling applications, featuring a countersunk milling head for a flush finish.
Technical Specifications
  • Material: FEBOS®plus steel
  • Surface: Zinc plated, blue passivated
  • Nominal diameter: 3.9 mm
  • Length: 22 mm
  • Head diameter: 7.5 mm
  • Head height: 3.05 mm
  • Drill tip length: 6 mm
  • Internal drive: H2 (PH drive)
  • Head type: Countersunk milling head
  • Drill tip diameter: 3.2 mm
  • Thread type: Self-tapping full thread
  • Shape of tip: Drilling tip
  • RoHS-compliant: Yes
  • Other standard: WN 207
  • Dimensions (H x L x W): 3.05mm x 22mm x 7.5mm
  • Weight: 0.05 kg
Key Features
  • Self-drilling window construction screw
  • Countersunk milling head for flush finish
  • Made from FEBOS®plus steel with zinc plating and blue passivation
  • PH (Phillips) drive for secure fastening
  • Self-tapping full thread design
  • Head diameter 7.5 mm
  • Drill tip diameter 3.2 mm with drilling tip shape
  • RoHS-compliant
Professional Installation Requirements
  • Installation by a professional or experienced technician is recommended to ensure proper fastening and structural integrity.
Applications
  • Connecting plastic window profiles with metal reinforcement up to 2.5 mm
  • Securing fittings on profiles with metal stiffening up to 2.5 mm
  • Use in automatic systems and roller-sorted applications in plastic window construction
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • RoHS-compliant material ensures reduced hazardous substances
  • Durable zinc plating and passivation extend product life reducing waste
Warranty Information

Standard manufacturer warranty against defects applies.

Available Now

Available for immediate purchase, ideal for plastic window construction and metal reinforcement fastening applications.
