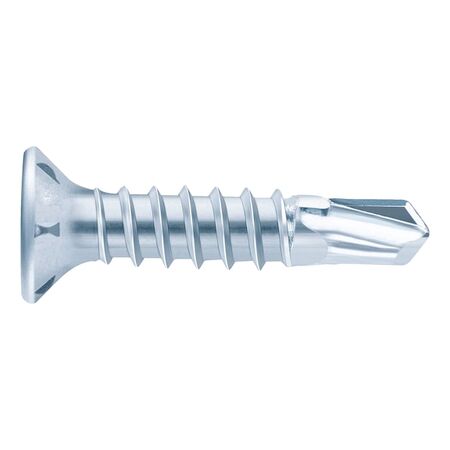

Window Construction Screw | Self-Drilling & Countersunk Milling Head | FEBOS®plus Steel | Zinc-Plated | @Pack of 4000 | by Wurth
The Window Construction Screw is designed for efficient fastening in plastic window construction, featuring a self-drilling design and a countersunk milling head for a flush finish. Made from durable FEBOS®plus steel with zinc plating, this screw is ideal for connecting plastic profiles with metal reinforcement, ensuring secure and reliable installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: FEBOS®plus Steel
- Surface: Zinc plated, blue passivated
- Nominal diameter: 3.9 mm
- Length: 25 mm
- Head diameter: 7.5 mm
- Head height: 3.05 mm
- Drill tip length: 6 mm
- Drill tip diameter: 3.2 mm
- Internal drive: H2 (PH drive)
- Head type: Countersunk milling head
- Thread type: Self-tapping full thread
- Shape of tip: Drilling tip
- RoHS-compliant: Yes
- Other standard: WN 207
- Dimensions (H x L x W): 3.05mm x 25mm x 7.5mm
- Weight: 0.02 kg
Key Features
- Self-drilling window construction screw
- Countersunk milling head for flush finish
- Made from FEBOS®plus steel with zinc plating and blue passivation
- Self-tapping full thread design
- PH (Pozidriv) drive for secure fastening
- Head diameter of 7.5 mm and drill tip diameter of 3.2 mm
Professional Installation Requirements
- Professional installation recommended to ensure proper fastening and compliance with safety standards.
Applications
- Connecting plastic window profiles with metal reinforcement up to 2.5 mm
- Securing fittings on profiles with metal stiffening up to 2.5 mm
- Use in automatic systems and roller-sorted applications in plastic window construction
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating and passivation extend product life, reducing waste
Warranty Information
Wurth provides standard warranty against manufacturing defects as per company policy.
Available Now
The Wurth Window Construction Self-Drilling Screw is available for immediate purchase, ideal for plastic window construction and metal reinforcement fastening applications.
