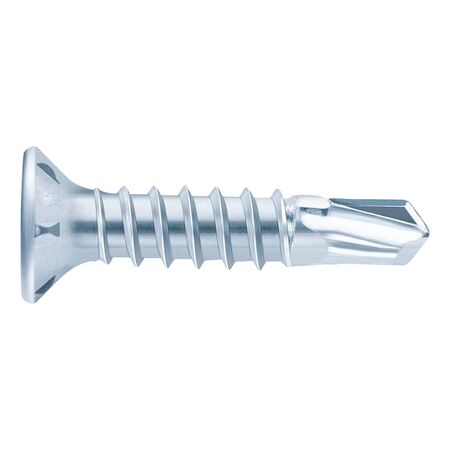

Window Construction Screw | Self-Drilling & Countersunk Milling Head | FEBOS®plus Steel | Zinc-Plated | @Pack of 6000 | by Wurth
The Window Construction Screw is designed for efficient fastening in plastic window construction, featuring a self-drilling design and a countersunk milling head for a flush finish. Made from FEBOS®plus steel with zinc plating and blue passivation, it offers excellent corrosion resistance, making it ideal for connecting plastic profiles with metal reinforcement up to 2.5 mm. Perfect for professional installations, this screw ensures durability and reliability in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Self-Drilling & Countersunk Milling Head | FEBOS®plus Steel | Zinc-Plated | @Pack of 6000 | by Wurth
Brand: Wurth
SKU: 207583916
Alternatively Known As: Self-drilling window screw, plastic window screw, metal reinforcement screw, countersunk milling head screw, PH drive screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated with blue passivation
- Nominal diameter: 3.9 mm
- Length: 16 mm
- Head diameter: 7.5 mm
- Head height: 3.05 mm
- Drill tip length: 6 mm
- Internal drive: H2 (PH drive)
- Head type: Countersunk milling head
- Drill tip diameter: 3.2 mm
- Thread type: Self-tapping full thread
- Shape of tip: Drilling tip
- Other standard: WN 207
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.05mm x 16mm x 7.5mm
- Weight: 0.05 kg
Key Features
- Self-drilling window construction screw
- Countersunk milling head for flush finish
- FEBOS®plus steel with zinc plating and blue passivation for corrosion resistance
- Self-tapping full thread design
- Head diameter 7.5 mm with PH (H2) internal drive
- Drill tip diameter 3.2 mm with drilling tip shape
Professional Installation Requirements
- Installation by trained professionals or experienced personnel recommended to ensure proper fastening and safety.
Applications
- Connecting plastic window profiles with metal reinforcement up to 2.5 mm
- Securing fittings on profiles with metal stiffening up to 2.5 mm
- Use in automatic systems and roller-sorted applications in plastic window construction
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Durable zinc plating and passivation extend product life reducing waste
Warranty Information
Wurth standard warranty against manufacturing defects applies.
Available Now
The Wurth Window Construction Self-Drilling Screw is available now for immediate purchase. Ideal for plastic window construction and metal reinforcement fastening applications.
