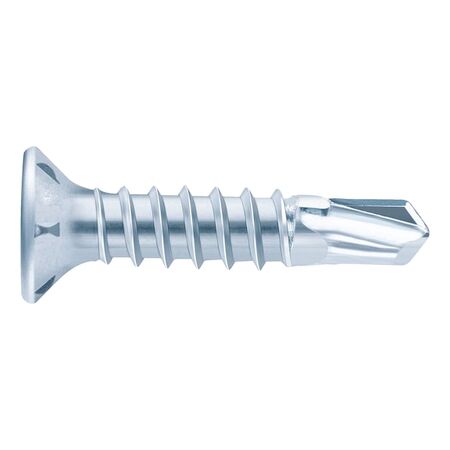

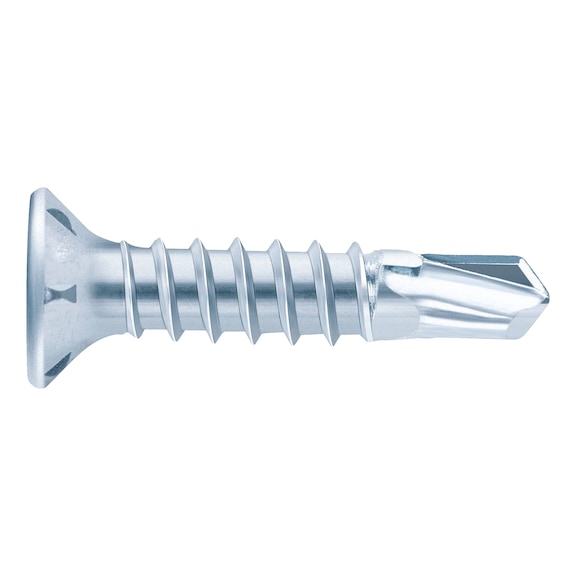

Window Construction Screw | Self-Drilling & Countersunk Milling Head | FEBOS®plus Steel | Zinc-Plated | @Pack of 8000 | by Wurth
The Window Construction Screw is a self-drilling solution designed for secure fastening in plastic window profiles with metal reinforcement. Made from durable FEBOS®plus steel and featuring a countersunk milling head for a flush finish, this screw is ideal for professional installations. With its zinc-plated and blue passivated surface, it ensures longevity and compliance with RoHS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Self-Drilling & Countersunk Milling Head | FEBOS®plus Steel | Zinc-Plated | @Pack of 8000 | by Wurth
Brand: Wurth
SKU: 207583913
Alternatively Known As: Self-drilling window screw, Countersunk milling head screw, Plastic window construction screw, Metal reinforcement screw, PH drive window screw
Technical Specifications
- Material: FEBOS®plus Steel
- Surface: Zinc plated, blue passivated
- Nominal diameter (d1): 3.9 mm
- Length (l1): 13 mm
- Head diameter (dk): 7.5 mm
- Head height (k1): 3.05 mm
- Drill tip length (lp): 6 mm
- Internal drive: H2 (PH drive)
- Head type: Countersunk milling head
- Drill tip diameter: 3.2 mm
- Shape of tip: Drilling tip
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Other standard: WN 207
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.05mm x 13mm x 7.5mm
- Weight: 0.01 kg
Key Features
- Self-drilling window construction screw
- Countersunk milling head for flush finish
- Made from FEBOS®plus steel with zinc plating and blue passivation
- PH (Phillips) drive for secure fastening
- Self-tapping full thread design
- Suitable for plastic window construction with metal reinforcement up to 2.5 mm
Professional Installation Requirements
- Installation should be performed by professionals familiar with window construction and fastening techniques to ensure secure and compliant assembly.
Applications
- Connecting plastic window profiles with metal reinforcement up to 2.5 mm
- Securing fittings on profiles with metal stiffening up to 2.5 mm
- Use in automatic systems and roller-sorted applications in window construction
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable zinc plating and passivation extend product life reducing waste
Warranty Information
Wurth provides standard warranty against manufacturing defects. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Window Construction Self-Drilling Screw is available for immediate purchase. Ideal for plastic window construction and metal reinforcement fastening applications.
