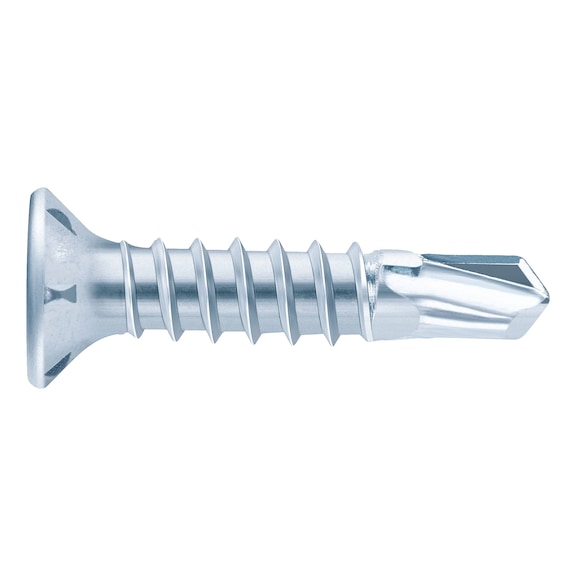

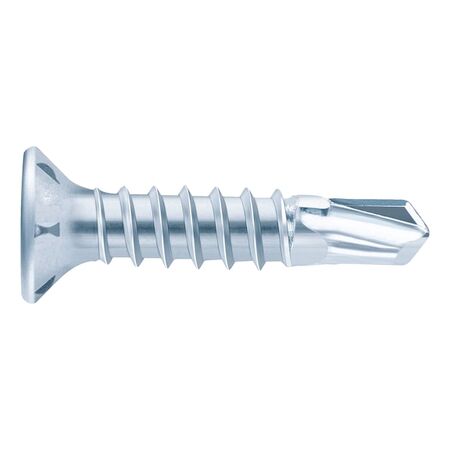

Window Construction Screw | Self-Drilling & Countersunk Milling Head | Zinc-Plated Steel | @Pack of 5000 | by Wurth
The Window Construction Screw is a self-drilling solution designed for fastening plastic window profiles with metal reinforcement. Featuring a countersunk milling head for a flush finish and made from zinc-plated steel for enhanced corrosion resistance, this screw is perfect for professional installations in window construction. Ideal for skilled tradespersons, it ensures structural integrity and durability in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Self-Drilling & Countersunk Milling Head | Zinc-Plated Steel | @Pack of 5000 | by Wurth
Brand: Wurth
SKU: 207583919
Alternatively Known As: Self-drilling window screw, plastic window screw, countersunk milling head screw, self-tapping construction screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated with blue passivation
- Nominal diameter: 3.9 mm
- Length: 19 mm
- Head diameter: 7.5 mm
- Head height: 3.05 mm
- Drill tip length: 6 mm
- Internal drive: H2 (PH drive)
- Head type: Countersunk milling head
- Drill tip diameter: 3.2 mm
- Shape of tip: Drilling tip
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Other standard: WN 207
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.05mm x 19mm x 7.5mm
- Weight: 0.02 kg
Key Features
- Self-drilling window construction screw
- Self-tapping full thread design
- Countersunk milling head for flush finish
- PH (Pozidriv) internal drive H2
- Zinc-plated steel with blue passivation for corrosion resistance
- Head diameter 7.5 mm, drill tip diameter 3.2 mm
Professional Installation Requirements
- Installation by professionals or skilled tradespersons is recommended to ensure proper fastening and structural integrity.
Applications
- Connecting plastic window profiles with metal reinforcement up to 2.5 mm
- Securing fittings on profiles with metal stiffening up to 2.5 mm
- Use in automatic systems and roller-sorted applications in window construction
Standards & Compliance
- Complies with AS/NZS 4785 for fasteners used in window and door construction (inferred from application and material type)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing replacement frequency
Warranty Information
Wurth provides standard warranty against manufacturing defects; please refer to Wurth's warranty policy for details.
Available Now
The Wurth Window Construction Self-Drilling Screw is available for immediate purchase, ideal for plastic window construction and metal reinforcement fastening applications.
