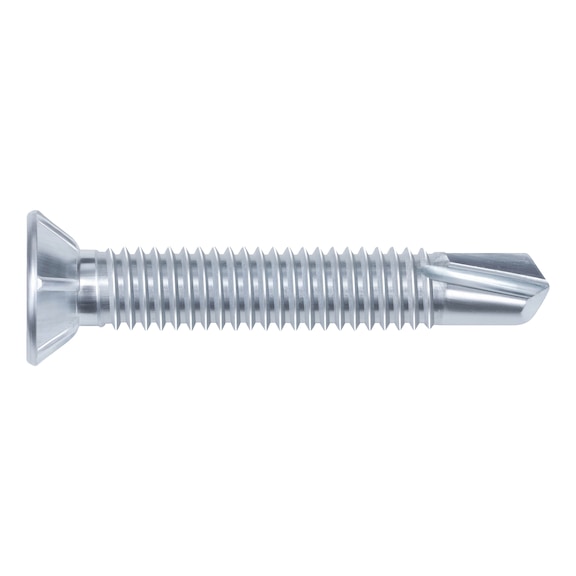

Window Construction Screw | Self-Drilling & Countersunk Milling Head | Zinc-Plated & Blue Passivated | @Pack of 6000 | by Wurth
The Window Construction Screw is a self-drilling solution designed for plastic window profiles, featuring a countersunk milling head for a flush fit. Ideal for connecting plastic to metal reinforcements, this screw ensures optimal force transmission with its AW drive, making it perfect for professional installations in window construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Self-Drilling & Countersunk Milling Head | Zinc-Plated & Blue Passivated | @Pack of 6000 | by Wurth
Brand: Wurth
SKU: 208044016
Alternatively Known As: Self-drilling window screw, plastic window construction screw, countersunk milling head screw, AW drive screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated
- Nominal diameter (d1): 4 mm
- Length (l1): 16 mm
- Head diameter (dk): 7.0 mm
- Head height (k1): 2.0 mm
- Drill tip length (lp): 5.2 mm
- Internal drive: AW20
- Head type: Countersunk milling head
- Drill tip diameter: 3.4 mm
- Shape of tip: Drilling tip
- Thread type: Metric thread
- Thread design: Full thread
- RoHS-compliant: Yes
- Other standard: WN 208
- Dimensions (H x L x W): 2mm x 16mm x 7mm
- Weight: 0.01 kg
Key Features
- Self-drilling screw designed for plastic window construction
- Countersunk milling head for flush fitting
- More load-bearing thread turns for thin iron reinforcements
- Flat metric thread minimizes forced feed risks between plastic and metal stiffening
- AW drive for optimum transmission of forces with no ejection forces
- Good centring and fast location
Professional Installation Requirements
- Installation by trained professionals or experienced personnel is recommended to ensure proper fastening and avoid damage to materials.
Applications
- Connecting plastic window profiles with metal reinforcement up to 2.5 mm
- Securing fittings on profiles with metal stiffening up to 2.5 mm
- Use in automatic systems and roller-sorted applications in window construction
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth warranty policy for details.
Available Now
The Wurth Window Construction Self-Drilling Screw is available for immediate purchase, ideal for plastic window construction and metal reinforcement applications.
