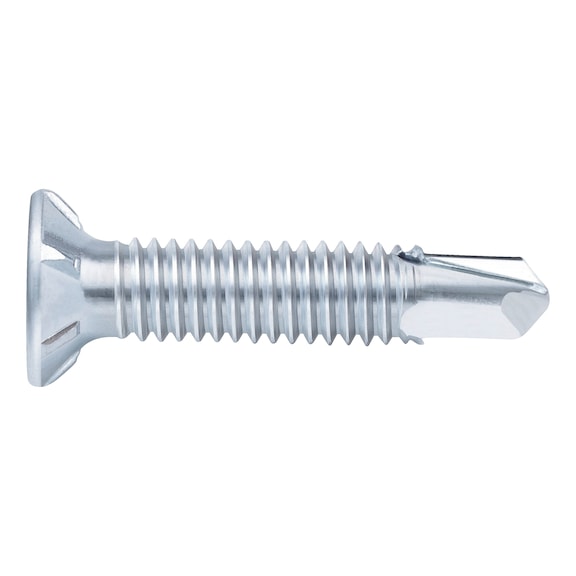

Window Construction Screw | Self-Drilling & Countersunk Milling Head | Zinc Plated Steel | @Pack of 8000 | by Wurth
The Window Construction Screw is designed for UPVC window construction, featuring a self-drilling design and a countersunk milling head for secure fastening. Made from galvanized steel, it offers enhanced durability and load capacity, making it ideal for connecting UPVC profiles with metal reinforcement. Perfect for professional tradespeople, this screw ensures structural integrity in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Self-Drilling & Countersunk Milling Head | Zinc Plated Steel | @Pack of 8000 | by Wurth
Brand: Wurth
SKU: 207084013
Alternatively Known As: Self-drilling window screw, UPVC window screw, Countersunk milling head screw, Metal reinforcement screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated (galvanized), blue passivated
- Nominal diameter: 4 mm
- Length: 13 mm
- Head diameter: 7.5 mm
- Head height: 2.2 mm
- Drill tip length: 3.5 mm
- Internal drive: H2 (PH drive)
- Head type: Countersunk milling head
- Drill tip diameter: 3.4 mm
- Shape of tip: Drilling tip
- Thread type: Metric full thread
- Other standard: WN 207
- RoHS-compliant: Yes
- Declaration of performance (EU-CPR): No
- Dimensions (H x L x W): 2.2mm x 13mm x 7.5mm
- Weight: 0.01 kg
Key Features
- Steel, galvanized, blue passivated finish
- PH drive for secure fastening
- Metric full thread design
- Self-drilling with countersunk milling head
- Greater load capacity threads with thin sheathing iron
- Flat metric thread minimizes risk of forced advance between plastic and metal bracing
- Drill tip may break away to prevent screw breakage during application
Professional Installation Requirements
- Installation by a qualified tradesperson or professional is recommended to ensure proper fastening and structural integrity.
Applications
- Connecting UPVC profiles with metal reinforcement up to 2.5 mm
- Securing fittings on profiles with metal stiffening up to 2.5 mm
- UPVC window construction
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable galvanized coating extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Window Construction Screw is available for immediate purchase, ideal for UPVC window construction and metal reinforcement applications.
