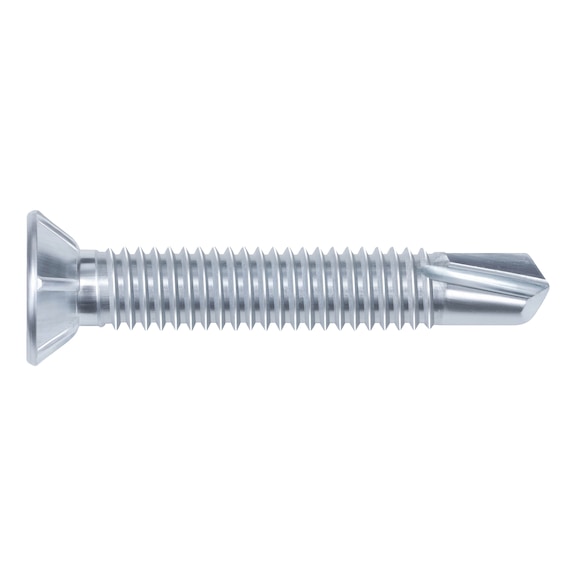

Window Construction Screw | Self-Drilling & Countersunk Milling Head | Zinc-Plated & Blue Passivated | @Pack of 8000 | by Wurth
Window construction screws with a self-drilling design and countersunk milling head are perfect for fastening plastic window profiles to metal reinforcements. Made from FEBOS®plus steel and featuring a zinc-plated, blue passivated surface, these screws ensure corrosion resistance and durability. Ideal for professional installation in window construction applications, they provide optimum force transmission without ejection forces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Self-Drilling & Countersunk Milling Head | Zinc-Plated & Blue Passivated | @Pack of 8000 | by Wurth
Brand: Wurth
SKU: 208044013
Alternatively Known As: Self-drilling window screw, Countersunk milling head screw, Plastic window construction screw, AW drive screw, Zinc plated window screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated
- Nominal diameter: 4 mm
- Length: 13 mm
- Head diameter: 7.0 mm
- Head height: 2.0 mm
- Drill tip length: 3.5 mm
- Internal drive: AW20
- Head type: Countersunk milling head
- Drill tip diameter: 3.4 mm
- Shape of tip: Drilling tip
- Thread type: Metric thread
- Thread design: Full thread
- Other standard: WN 208
- RoHS-compliant: Yes
- Dimensions (H x L x W): n/a mm x 13mm x n/a mm
- Weight: 0.005 kg
Key Features
- Self-drilling screw designed for plastic window construction
- Countersunk milling head for flush fitting
- AW drive for optimum transmission of forces with no ejection forces
- More load-bearing thread turns for thin iron reinforcements
- Flat metric thread minimizes risk of forced feed between plastic and metal stiffening
- Good centring and fast location
- Zinc-plated and blue passivated surface for corrosion resistance
- RoHS-compliant
Professional Installation Requirements
- Professional installation recommended to ensure correct fastening and structural integrity in window construction applications.
Applications
- Connecting plastic window profiles with metal reinforcement up to 2.5 mm
- Securing fittings on profiles with metal stiffening up to 2.5 mm
- Use in automatic systems and roller-sorted applications in window construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase, ideal for plastic window construction and metal reinforcement fastening applications.
