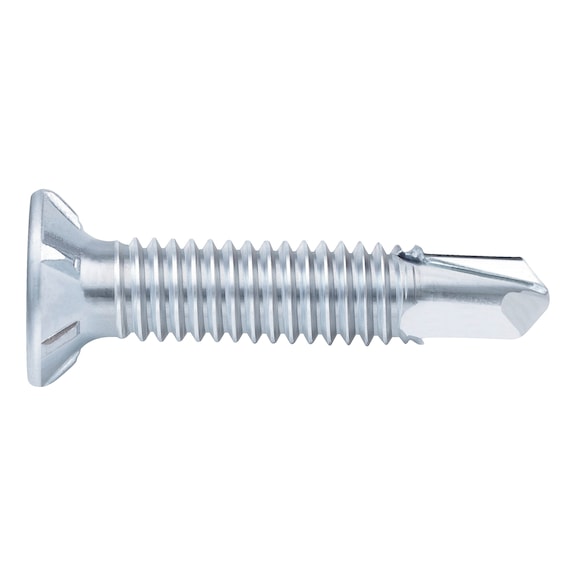

Window Construction Screw | Self-Drilling & Countersunk Milling Head | Zinc Plated Steel | by Wurth
The Window Construction Screw is designed for UPVC window construction, featuring a self-drilling design and a countersunk milling head for a flush finish. Made from galvanized steel, it ensures durability and compliance with RoHS standards, making it ideal for connecting UPVC profiles with metal reinforcement. Perfect for professional tradespeople, this screw offers greater load capacity and easy installation with its PH drive.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Self-Drilling & Countersunk Milling Head | Zinc Plated Steel | by Wurth
Brand: Wurth
SKU: 207084020
Alternatively Known As: Self-drilling window screw, UPVC window screw, Countersunk milling head screw, Construction screw for windows
Technical Specifications
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Nominal diameter: 4 mm
- Length: 20 mm
- Head diameter: 7.5 mm
- Head height: 2.2 mm
- Drill tip length: 5.2 mm
- Internal drive: H2 (PH drive)
- Head type: Countersunk milling head
- Drill tip diameter: 3.4 mm
- Shape of tip: Drilling tip
- Thread type: Metric thread
- Thread design: Full thread
- Other standard: WN 207
- Dimensions (H x L x W): 2.2mm x 20mm x 4mm
- Weight: 0.01 kg
Key Features
- Steel, galvanized, blue passivated finish
- PH drive for easy installation
- Metric full thread design
- Self-drilling with drilling tip shape
- Countersunk milling head for flush finish
- Greater load capacity threads with thin sheathing iron
- Flat metric thread minimizes risk of forced advance between plastic and metal bracing
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and structural integrity.
Applications
- Connecting UPVC profiles with metal reinforcement up to 2.5 mm
- Securing fittings on profiles with metal stiffening up to 2.5 mm
- Use in UPVC window construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Galvanized coating extends product life reducing waste
Warranty Information
Wurth provides standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Window Construction Screw is available for immediate purchase, ideal for UPVC window construction and metal reinforcement applications.
