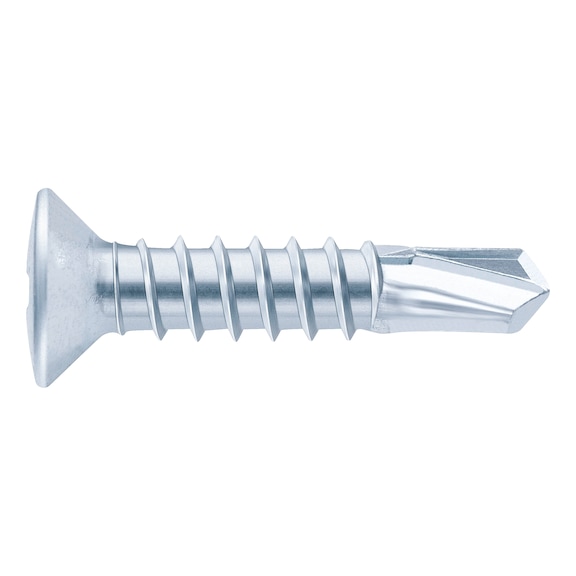

Window Construction Screw | Self-Drilling & Raised Countersunk Head | Zinc-Plated Steel | @Pack of 1000 | by Wurth

BRAND: Wurth
SKU: 207683955
$298.60 List price: $375.30
1000 PCS ($0.30 per PCS)
+ −
30 Days Return Delivery Options
The Window Construction Screw is a self-drilling solution designed for UPVC window applications, featuring a raised countersunk head and durable zinc-plated steel construction. Ideal for connecting UPVC profiles with metal reinforcement, this screw ensures secure fastening with its PH drive and efficient drilling tip, making it perfect for professional installations.

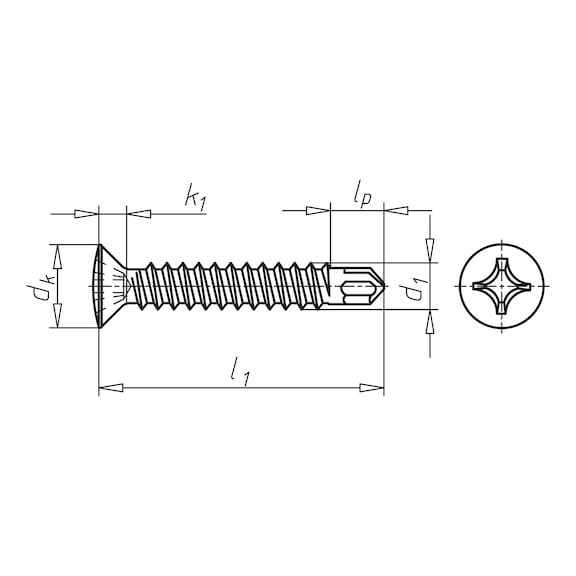

Technical Specifications
  • Material: Steel
  • Surface: Zinc plated, blue passivated
  • RoHS-compliant: Yes
  • Thread type x nominal diameter: ST3.9
  • Length: 55 mm
  • Head diameter: 7 mm
  • Head height: 2.7 mm
  • Drill tip length: 6 mm
  • Drill tip diameter: 3.2 mm
  • Internal drive: H2 (PH drive)
  • Head type: Raised countersunk head
  • Shape of tip: Drilling tip
  • Thread design: Full thread
  • Thread type: Self-tapping screw thread
  • Dimensions (H x L x W): n/a mm x 55mm x n/a mm
  • Weight: 0.05 kg
Key Features
  • Self-drilling window construction screw
  • Raised countersunk head design
  • Tapping screw thread with full thread design
  • Steel material with zinc plating and blue passivation
  • PH (H2) internal drive for secure fastening
  • Drilling tip shape for efficient penetration
Professional Installation Requirements
  • Installation by professionals or skilled tradespeople recommended to ensure proper fastening and structural integrity.
Applications
  • UPVC window construction
  • Connecting UPVC profiles with metal reinforcement up to 2.5 mm
  • Securing fittings on profiles with metal stiffening up to 2.5 mm
  • Use in automatic systems and roller-sorted applications
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Construction & Building)
Environmental Benefits
  • RoHS-compliant material ensuring reduced hazardous substances
  • Durable zinc plating extends product life reducing waste
Warranty Information

Wurth standard warranty against manufacturing defects applies.

Available Now

Available for immediate purchase, ideal for UPVC window construction and metal reinforcement fastening applications.
