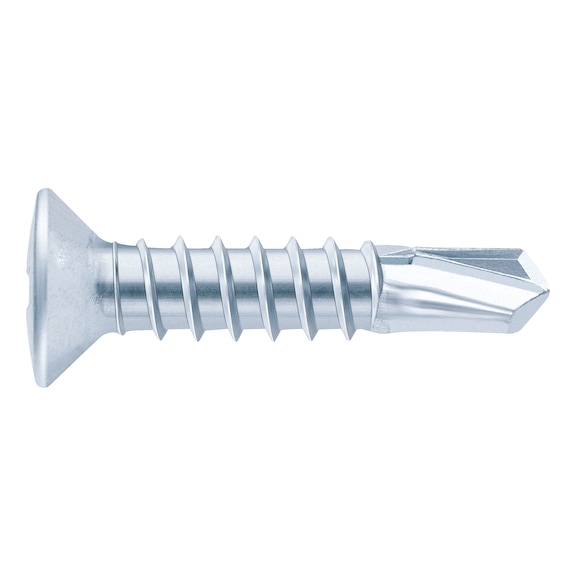

Window Construction Screw | Self-Drilling | Raised Countersunk Head | Zinc-Plated & Blue Passivated | @Pack of 1000 | by Wurth
The Window Construction Screw is a self-drilling solution designed for plastic window profiles, featuring a raised countersunk head and a durable zinc-plated, blue passivated finish. Ideal for connecting plastic window profiles with metal reinforcement, this screw ensures optimal force transmission with its AW drive design, making it perfect for professional installations in window construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Self-Drilling | Raised Countersunk Head | Zinc-Plated & Blue Passivated | @Pack of 1000 | by Wurth
Brand: Wurth
SKU: 208143955
Alternatively Known As: Self-drilling window screw, plastic window screw, raised countersunk head screw, AW drive screw, zinc-plated construction screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated
- Thread type x nominal diameter: ST3.9
- Length: 55 mm
- Head diameter: 7 mm
- Head height: 2.4 mm
- Drill tip length: 6 mm
- Drill tip diameter: 3.2 mm
- Internal drive: AW20
- Head type: Raised countersunk head
- Shape of tip: Drilling tip
- Thread design: Full thread
- Thread type: Self-tapping screw thread
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.4mm x 55mm x 7mm
- Weight: 0.05 kg
Key Features
- Self-drilling window construction screw for plastic window construction
- Raised countersunk head with 7.0 mm diameter
- AW drive for optimum transmission of forces
- No ejection forces and good centring for fast location
- Full thread with self-tapping screw thread design
- Zinc plated and blue passivated surface for corrosion resistance
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper fastening and compliance with safety standards.
Applications
- Connecting plastic window profiles with metal reinforcement up to 2.5 mm
- Securing fittings on profiles with metal stiffening up to 2.5 mm
- Use in automatic systems and roller-sorted applications in window construction
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Window Construction Screw is available for immediate purchase, ideal for plastic window construction and metal reinforcement fastening applications.
