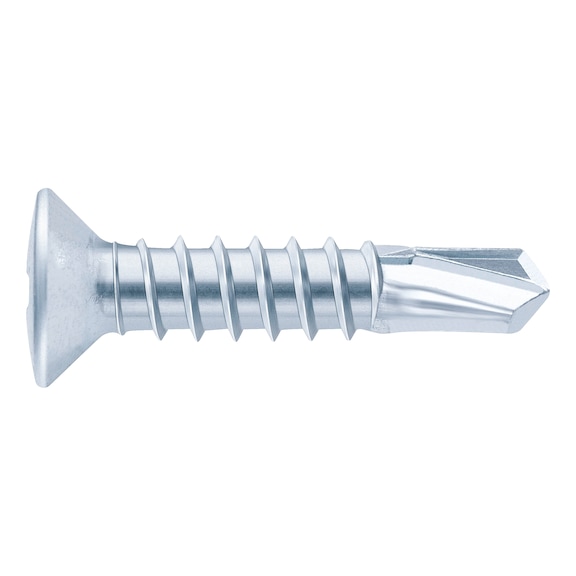

Window Construction Screw | Self-Drilling | Raised Countersunk Head | Zinc-Plated & Blue Passivated | @Pack of 1500 | by Wurth
The Window Construction Screw is a self-drilling solution designed for fastening plastic window profiles with metal reinforcement. Featuring a raised countersunk head and AW drive for optimal force transmission, this screw is zinc-plated and blue passivated for enhanced corrosion resistance. Ideal for professional installations, it ensures secure connections in various applications, including automatic systems and roller-sorted setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Self-Drilling | Raised Countersunk Head | Zinc-Plated & Blue Passivated | @Pack of 1500 | by Wurth
Brand: Wurth
SKU: 208143945
Alternatively Known As: Self-drilling window screw, plastic window construction screw, raised countersunk head screw, AW drive screw, FEBOS plus screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated
- RoHS-compliant: Yes
- Thread type x nominal diameter (d1): ST3.9
- Length (l1): 45 mm
- Head diameter (dk): 7 mm
- Head height (k1): 2.4 mm
- Drill tip length (lp): 6 mm
- Drill tip diameter (dp): 3.2 mm
- Internal drive: AW20
- Head type: Raised countersunk head
- Shape of tip: Drilling tip
- Thread design: Full thread
- Thread type: Self-tapping screw thread
- Dimensions (H x L x W): 2.4mm x 45mm x 7mm
- Weight: 0.05 kg
Key Features
- Self-drilling window construction screw
- Raised countersunk head with 7.0 mm diameter
- AW drive for optimum transmission of forces
- No ejection forces and good centring
- Fast location and self-tapping screw thread
- Zinc plated with blue passivation for corrosion resistance
- Full thread design with drilling tip shape
Professional Installation Requirements
- Installation by trained professionals or experienced personnel is recommended to ensure proper fastening and safety.
Applications
- Connecting plastic window profiles with metal reinforcement up to 2.5 mm
- Securing fittings on profiles with metal stiffening up to 2.5 mm
- Use in automatic systems and roller-sorted applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Window Construction Self-Drilling Screw is available for immediate purchase, ideal for plastic window construction and metal reinforcement fastening applications.
