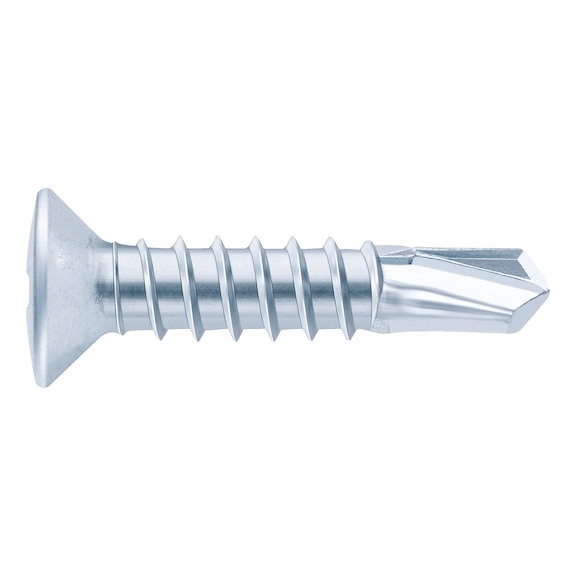

Window Construction Screw | Self-Drilling & Raised Countersunk Head | Zinc-Plated Steel | @Pack of 4000 | by Wurth
The Window Construction Screw is a self-drilling solution designed for UPVC window assembly, featuring a raised countersunk head and zinc-plated steel for durability. Ideal for connecting UPVC profiles with metal reinforcement, this screw ensures secure fittings and compliance with structural standards. Perfect for professional tradespeople, it simplifies installation with its efficient drilling tip and full thread design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Self-Drilling & Raised Countersunk Head | Zinc-Plated Steel | @Pack of 4000 | by Wurth
Brand: Wurth
SKU: 207683925
Alternatively Known As: Self-drilling window screw, UPVC construction screw, Raised countersunk head screw, Zinc-plated tapping screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated
- RoHS-compliant: Yes

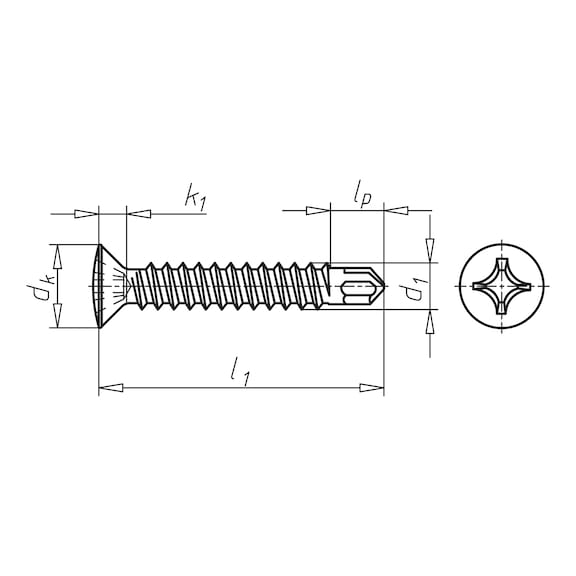

- Thread type x nominal diameter (d1): ST3.9
- Length (l1): 25 mm
- Head diameter (dk): 7 mm
- Head height (k1): 2.7 mm
- Drill tip length (lp): 6 mm
- Drill tip diameter (dp): 3.2 mm

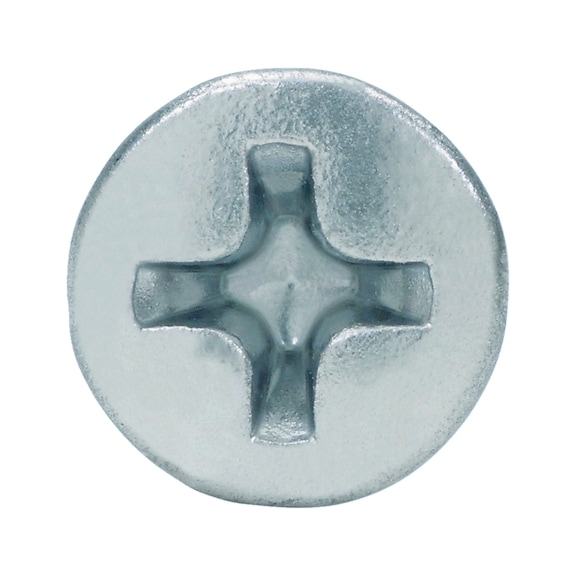

- Internal drive: H2 (PH drive)
- Head type: Raised countersunk head
- Shape of tip: Drilling tip
- Thread design: Full thread
- Thread type: Self-tapping screw thread
- Dimensions (H x L x W): 2.7mm x 25mm x 7mm
- Weight: 0.05 kg
Key Features
- Self-drilling window construction screw
- Raised countersunk head design
- Tapping screw thread with full thread design
- Steel material with zinc plating and blue passivation
- PH (H2) internal drive
- Drilling tip shape for efficient penetration
Professional Installation Requirements
- Installation by a qualified tradesperson or professional experienced with UPVC window construction is recommended to ensure secure and compliant fitting.
Applications
- Connecting UPVC profiles with metal reinforcement up to 2.5 mm
- Securing fittings on profiles with metal stiffening up to 2.5 mm
- Use in automatic systems and roller-sorted applications
- UPVC window construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Window Construction Screw FEBOS®plus is available for immediate purchase, ideal for UPVC window assembly and metal reinforcement fastening applications.
