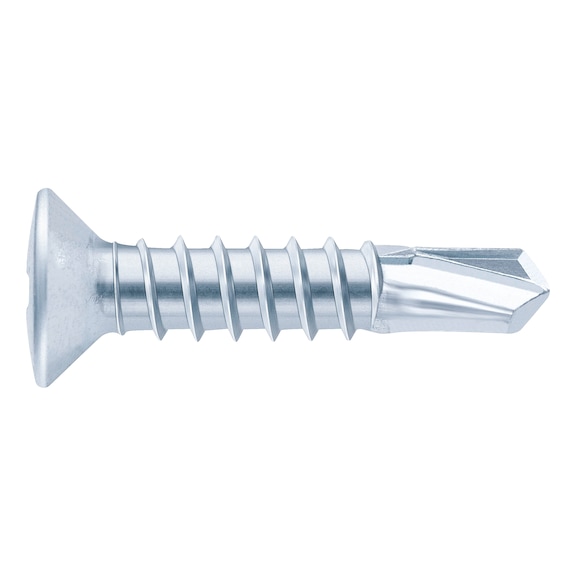

Window Construction Screw | Self-Drilling & Raised Countersunk Head | Zinc-Plated Steel | @Pack of 5000 | by Wurth
The Window Construction Screw is a self-drilling solution designed for UPVC profiles, featuring a raised countersunk head and durable zinc-plated steel construction. Ideal for connecting UPVC profiles with metal reinforcement, this screw ensures efficient penetration and secure fastening, making it perfect for professional installations in window construction and automated systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Self-Drilling & Raised Countersunk Head | Zinc-Plated Steel | @Pack of 5000 | by Wurth
Brand: Wurth
SKU: 207683919
Alternatively Known As: Self-drilling window screw, UPVC construction screw, Raised countersunk head screw, Zinc plated tapping screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated
- RoHS-compliant: Yes
- Thread type x nominal diameter (d1): ST3.9
- Length (l1): 19 mm
- Head diameter (dk): 7 mm
- Head height (k1): 2.7 mm
- Drill tip length (lp): 6 mm
- Drill tip diameter (dp): 3.2 mm
- Internal drive: H2 (PH drive)
- Head type: Raised countersunk head
- Shape of tip: Drilling tip
- Thread design: Full thread
- Thread type: Self-tapping screw thread
- Dimensions (H x L x W): 2.7mm x 19mm x 7mm
- Weight: 0.02 kg
Key Features
- Self-drilling window construction screw
- Raised countersunk head design
- Tapping screw thread with full thread
- Steel material with zinc plating and blue passivation
- PH (H2) internal drive
- Drilling tip shape for efficient penetration
Professional Installation Requirements
- Installation by professionals or experienced personnel recommended to ensure proper fastening and structural integrity.
Applications
- Connecting UPVC profiles with metal reinforcement up to 2.5 mm
- Securing fittings on profiles with metal stiffening up to 2.5 mm
- Use in automatic systems and roller-sorted applications
- UPVC window construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Wurth provides standard warranty against manufacturing defects. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Window Construction Screw FEBOS®plus is available for immediate purchase, ideal for UPVC window construction and metal reinforcement applications.
