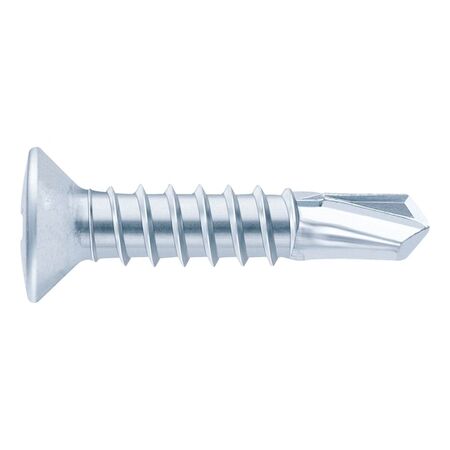

Window Construction Screw | Self-Drilling | Raised Countersunk Head | Zinc-Plated & Blue Passivated | @Pack of 5000 | by Wurth
The Window Construction Screw is a self-drilling solution designed for fastening plastic window profiles with metal reinforcement. Featuring a raised countersunk head and AW drive for optimal force transmission, this screw is zinc-plated and blue passivated for enhanced corrosion resistance. Ideal for professional installation, it ensures secure connections in automatic systems and roller-sorted applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Self-Drilling | Raised Countersunk Head | Zinc-Plated & Blue Passivated | @Pack of 5000 | by Wurth
Brand: Wurth
SKU: 208143919
Alternatively Known As: Self-drilling window screw, plastic window construction screw, raised countersunk head screw, AW drive screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated
- RoHS-compliant: Yes
- Thread type x nominal diameter: ST3.9
- Length: 19 mm
- Head diameter: 7 mm
- Head height: 2.4 mm
- Drill tip length: 6 mm
- Drill tip diameter: 3.2 mm
- Internal drive: AW20
- Head type: Raised countersunk head
- Shape of tip: Drilling tip
- Thread design: Full thread
- Thread type: Self-tapping screw thread
- Dimensions (H x L x W): n/a mm x 19mm x n/a mm
- Weight: 0.02 kg
Key Features
- Self-drilling window construction screw
- Raised countersunk head with 7.0 mm diameter
- AW drive for optimum transmission of forces
- No ejection forces and good centring
- Fast location and full thread self-tapping screw thread
- Zinc plated, blue passivated surface for corrosion resistance
Professional Installation Requirements
- Installation by a professional or experienced technician is recommended to ensure proper fastening and structural integrity.
Applications
- Connecting plastic window profiles with metal reinforcement up to 2.5 mm
- Securing fittings on profiles with metal stiffening up to 2.5 mm
- Use in automatic systems and roller-sorted applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase, ideal for plastic window construction and metal reinforcement fastening applications.
