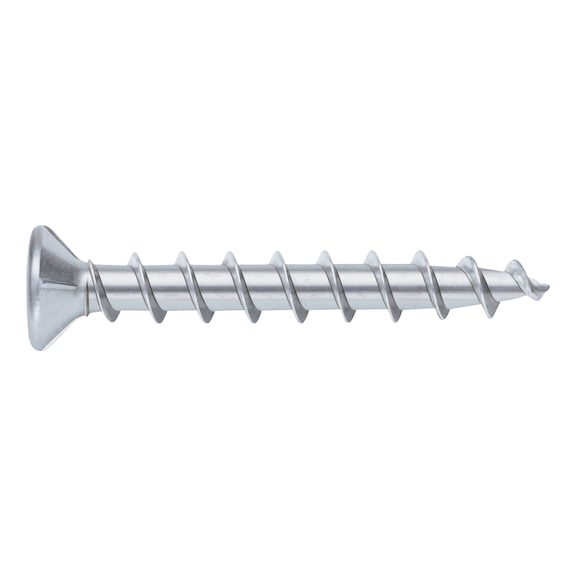

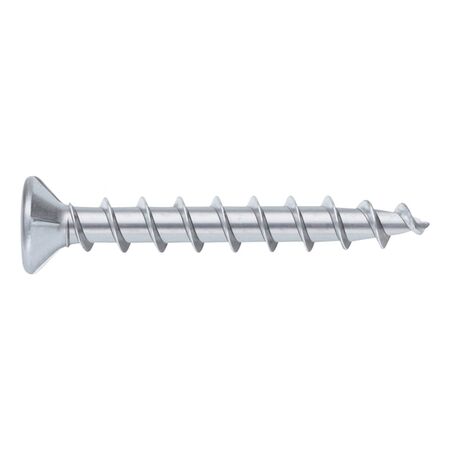

Window Construction Screw | Zinc Plated Steel | Self-Tapping | Raised Countersunk Head | @Pack of 1000 | by Wurth
Window construction screws with a raised countersunk head are designed for reliable fastening in window installations. Made from zinc plated steel, these self-tapping screws feature a PH2 drive and pinpoint tip for easy installation. Ideal for both wood and metal applications, they offer enhanced corrosion resistance, making them perfect for general construction projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Zinc Plated Steel | Self-Tapping | Raised Countersunk Head | @Pack of 1000 | by Wurth
Brand: Wurth
SKU: 185944155
Alternatively Known As: Window screws, Raised countersunk head screws, Zinc plated construction screws, Self-tapping window screws
Technical Specifications
- Material: Steel
- Surface: Zinc plated with thick-film passivation
- Nominal diameter: 4.1 mm
- Length: 55 mm
- Head diameter: 7 mm
- Head height: 2.2 mm
- Internal drive: PH2
- Head type: Raised countersunk head
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Core diameter: 2.5 mm
- Tip shape: Pinpoint
- Product weight per item: 2.871 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.2mm x 55mm x 7mm
- Weight: 2.9 kg
Key Features
- Steel material with zinc plating and thick-film passivation
- Deltacoll-coated for enhanced corrosion protection
- PH2 drive with special thread and needle tip for easy installation
- Roller-sorted for consistent quality
- Increased corrosion protection with 240 hours salt spray resistance per DIN EN ISO 9227-NSS
- Thermally stable corrosion protection layer up to 150°C
- Cr(VI)-free corrosion protection layer
Professional Installation Requirements
- Professional installation recommended to ensure proper fastening and compliance with building standards.
Applications
- Window construction and installation
- General construction fastening
- Wood and metal fastening requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Cr(VI)-free corrosion protection reduces environmental and health hazards
- Durable zinc plating extends product life reducing replacement frequency
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
Wurth Window Construction Screws are available for immediate purchase, ideal for window installation and general construction applications.
