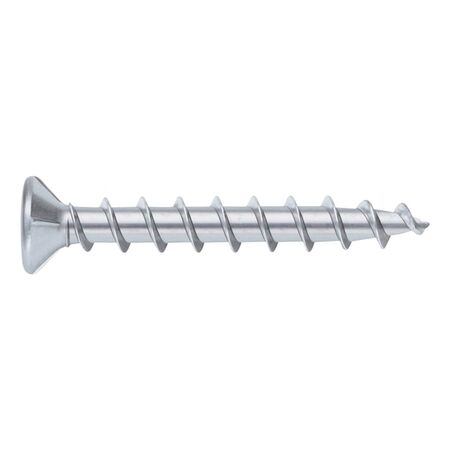

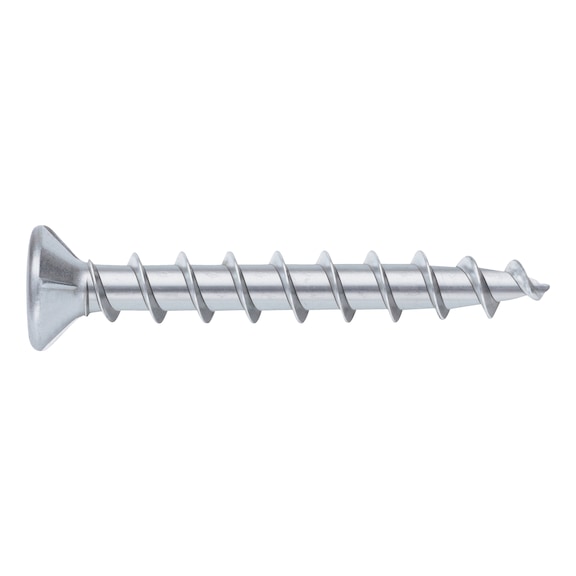

Window Construction Screw | Zinc Plated Steel | PH2 Drive | 2500 PCS | by Wurth
Window construction screws with a raised countersunk head are perfect for window installation and general construction fastening. Made from zinc plated steel, these screws feature a PH2 drive and a special needle tip for easy installation. With enhanced corrosion protection and compliance with AS/NZS 4785 standards, they are ideal for both wood and metal fastening applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Zinc Plated Steel | PH2 Drive | 2500 PCS | by Wurth
Brand: Wurth
SKU: 185944130
Alternatively Known As: Window screw, Raised head screw, Countersunk head screw, Self-tapping construction screw, Zinc plated screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated with thick-film passivation
- Nominal diameter: 4.1 mm
- Length: 30 mm
- Head diameter: 7 mm
- Head height: 2.2 mm
- Internal drive: PH2
- Head type: Raised countersunk head
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Core diameter: 2.5 mm
- Tip shape: Pinpoint
- Product weight per item: 1.6 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.2mm x 30mm x 7mm
- Weight: 0.0016 kg
Key Features
- Steel construction with zinc plating and thick-film passivation
- Deltacoll-coated for enhanced corrosion protection
- PH2 drive with special thread and needle tip for easy installation
- Roller-sorted for consistent quality
- Increased corrosion protection with 240 hours salt spray resistance according to DIN EN ISO 9227-NSS
- Thermally stable corrosion protection layer up to 150°C
- Cr(VI)-free corrosion protection layer
Professional Installation Requirements
- Recommended to be installed by professionals or skilled tradespeople to ensure proper fastening and compliance with building standards.
Applications
- Window construction and installation
- General construction fastening requiring corrosion-resistant screws
- Wood and metal fastening applications
Standards & Compliance
- Complies with AS/NZS 4785 for fasteners used in construction applications
Environmental Benefits
- Cr(VI)-free corrosion protection reduces environmental and health hazards
- Long-lasting corrosion resistance reduces need for frequent replacements
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms.
Available Now
Wurth Window Construction Screw FBS 2500 PCS is available for immediate purchase, ideal for window installation and general construction fastening requiring corrosion resistance.
