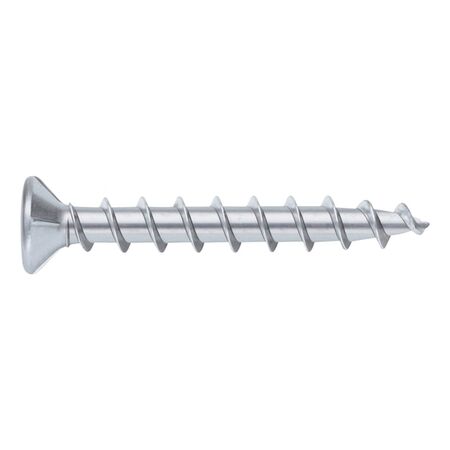

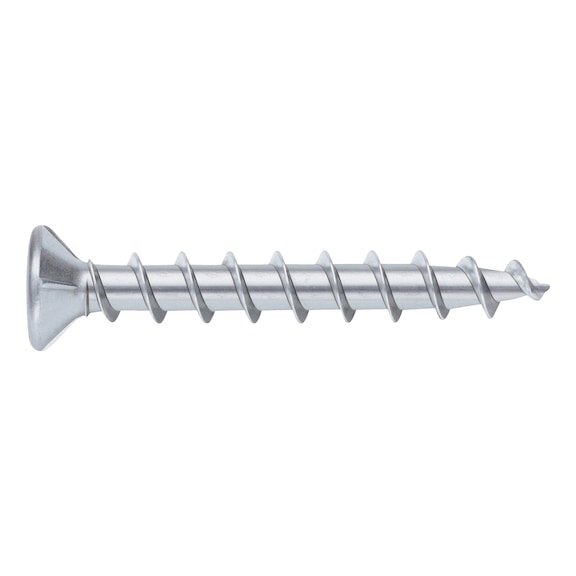

Window Construction Screw | Zinc Plated Steel | PH2 Drive & Raised Countersunk Head | @Pack of 4500 | by Wurth
The Window Construction Screw is designed for reliable fastening in window installation and general construction projects. Made from zinc plated steel with a raised countersunk head and PH2 drive, these screws offer enhanced corrosion protection and precise fastening. Ideal for both wood and metal applications, they ensure structural integrity and compliance with industry standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Construction Screw | Zinc Plated Steel | PH2 Drive & Raised Countersunk Head | @Pack of 4500 | by Wurth
Brand: Wurth
SKU: 185944122
Alternatively Known As: Window screw, Raised head screw, Countersunk head screw, Self-tapping construction screw, Zinc plated window screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated with thick-film passivation
- Nominal diameter: 4.1 mm
- Length: 22 mm
- Head diameter: 7 mm
- Head height: 2.2 mm
- Internal drive: PH2
- Head type: Raised countersunk head
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Core diameter: 2.5 mm
- Tip shape: Pinpoint
- Product weight per item: 1.149 g
- Corrosion protection: 240 hours salt spray test without red rust
- Thermal stability of corrosion layer: 150°C
- Cr(VI)-free corrosion protection
- Dimensions (H x L x W): 2.2mm x 22mm x 7mm
- Weight: 0.00115 kg
Key Features
- Steel construction with zinc plating and thick-film passivation
- Deltacoll-coated for enhanced corrosion protection
- PH2 drive with special thread and needle tip for precise fastening
- Roller-sorted for consistent quality
- Increased corrosion protection with 240 hours salt-spray mist test compliance (DIN EN ISO 9227-NSS)
- Thermally stable corrosion protection layer up to 150°C
- Cr(VI)-free corrosion protection layer
Professional Installation Requirements
- Installation by a qualified tradesperson or professional is recommended to ensure proper fastening and structural integrity.
Applications
- Window construction and installation
- General wood and metal fastening
- Construction and building projects requiring corrosion-resistant screws
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Cr(VI)-free corrosion protection layer for environmental safety
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
The Wurth Window Construction Screw FBS 4500 PCS is available now for immediate purchase. Ideal for window installation and general construction fastening applications.
