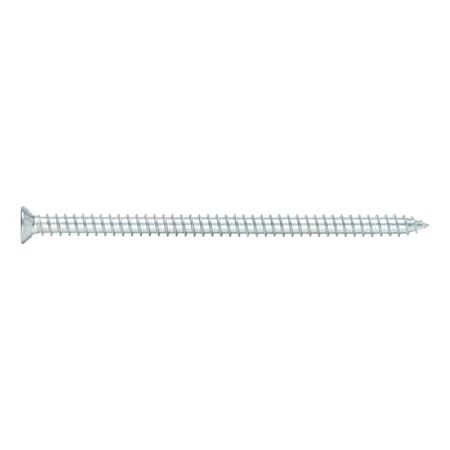

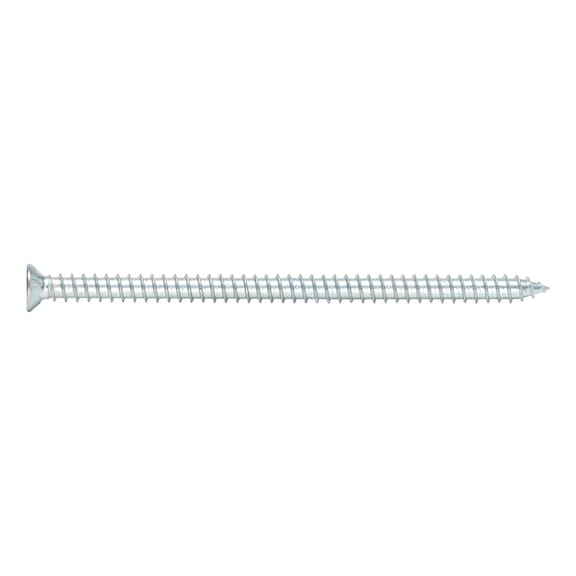

Window Frame Screw AMO® III Type 1 | Zinc Plated | Countersunk Milling Head | No Pre-Drilling Required | @Pack of 200 | by Wurth
Window Frame Screw AMO® III Type 1 is designed for secure fastening in masonry and concrete applications. Featuring a zinc-plated finish and a countersunk milling head, this screw eliminates the need for pre-drilling in softwood, making installation quick and efficient. Ideal for professionals, it ensures load-bearing capacity under thermal stress and complies with structural design standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Window Frame Screw AMO® III Type 1 | Zinc Plated | Countersunk Milling Head | No Pre-Drilling Required | @Pack of 200 | by Wurth
Brand: Wurth
SKU: 234730152
Alternatively Known As: Window fixing screw, Window installation screw, Masonry window screw, AMO III window screw
Technical Specifications
- Length: 152 mm
- Thread diameter: 7.5 mm
- Material: Steel
- Surface: Zinc plated
- Head type: Countersunk milling head
- Head diameter: 12.0 mm
- Internal drive: RW30
- Thread type: Dowel screw thread
- Shape of tip: Tip
- Suitable for calcium silicate block, solid brick, pumice, lightweight concrete, softwood
- No pre-drilling required for softwood
- Load capacities vary by material type
- Dimensions (H x L x W): 152mm x 152mm x 12mm
- Weight: 1.2 kg
Key Features
- Countersunk milling head for easy sinking in wood and plastic profiles
- Steel zinc-plated, blue passivated with RW30 drive
- Short installation times with no setting tool or anchor required
- RW recess for longer bit service life and improved power transmission
- Virtually no expansion forces during installation
- Positive-locking, removable anchorage with no expansion pressure
- Load-bearing capacity retained under thermal stress
- Tested fire resistance rating of 120 minutes
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct mounting according to construction conditions and compliance with safety guidelines.
Applications
- Fastening windows in concrete and solid block masonry
- Suitable for wood and plastic window profiles
- Use in calcium silicate block, solid brick, pumice, lightweight concrete, softwood
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Wurth provides standard manufacturer warranty covering defects in materials and workmanship.
Available Now
Wurth Window Frame Screw AMO® III Type 1 200 PCS is available for immediate purchase, ideal for secure window fastening in masonry and concrete applications.
