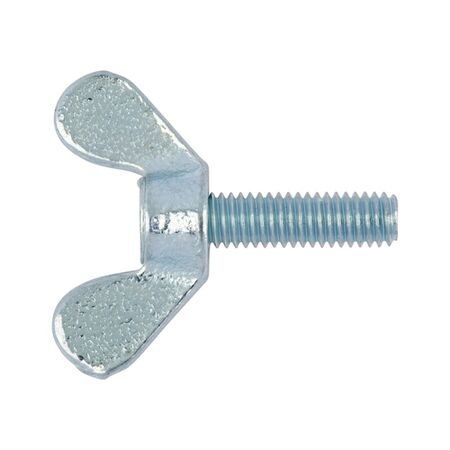

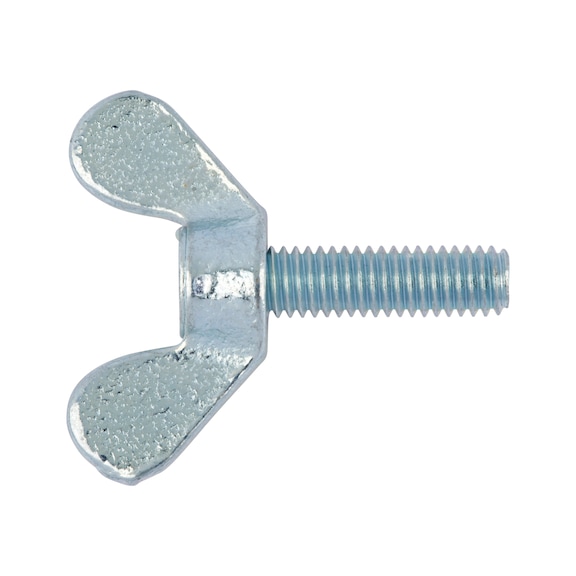

Wing Bolt DIN 316 | Round Wing Design | Zinc-Plated & Corrosion Resistant | @Pack of 10 | by Wurth
Wing Bolt DIN 316 features a round wing design for easy hand tightening and is made from durable malleable cast iron. With zinc plating for corrosion resistance, it's perfect for mechanical fastening in machinery and equipment. Ideal for maintenance and repair tasks, this bolt complies with DIN 316 standards, ensuring reliability and safety in your projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing Bolt DIN 316 | Round Wing Design | Zinc-Plated & Corrosion Resistant | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 237416
Alternatively Known As: Wing nut bolt, hand wing bolt, zinc plated wing screw, DIN 316 wing bolt
Technical Specifications
- Thread type x nominal diameter (d1): M4
- Outer diameter (d2): 8 mm
- Length (l1): 16 mm
- Wing height (h1): 10.5 mm
- Width of wing on nut (e2): 20 mm
- Head height: 10.5 mm
- Standards: DIN 316
- Material: Malleable cast iron
- Surface: Zinc plated with blue passivation
- RoHS-compliant: Yes
- Head type: With wing
- Drive type: With hand
- Thread type: Metric thread
- Pitch: 0.7 mm
- Thread form: Standard metric thread
- Design: Pressed
- Product class: C
- Dimensions (H x L x W): 10.5mm x 16mm x 20mm
- Weight: 0.02 kg
Key Features
- Round wing design for easy hand tightening
- Made from malleable cast iron for durability
- Zinc plated with blue passivation for corrosion resistance
- Complies with DIN 316 standard
- Metric thread with 0.7 mm pitch
Professional Installation Requirements
- No professional installation required; designed for hand tightening.
Applications
- Mechanical fastening in machinery and equipment
- Assembly requiring hand-tightened bolts
- Use in maintenance and repair tasks
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for mechanical fastening and assembly applications.
