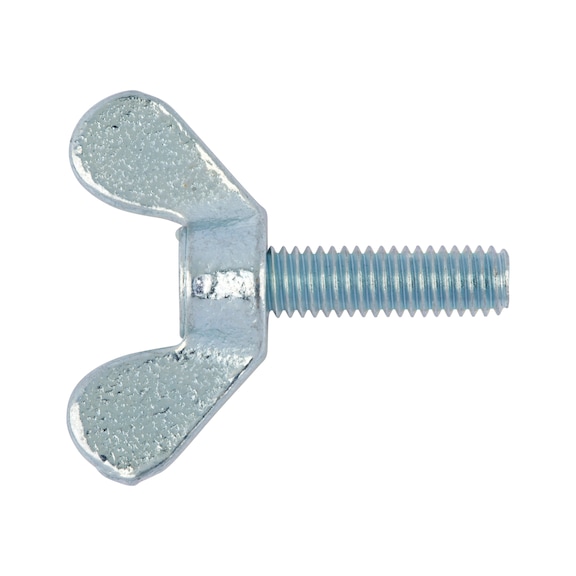

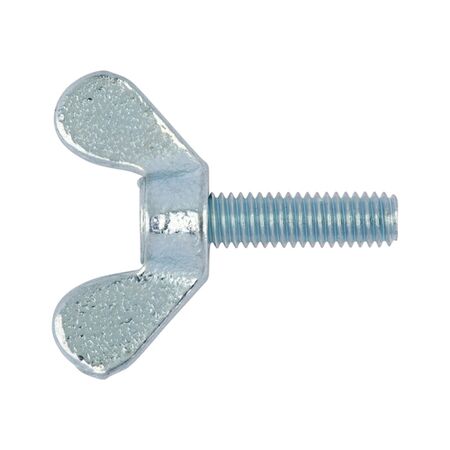

Wing Bolt Round Wings DIN 316 | M5 Thread | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Wing Bolt Round Wings DIN 316 with M5 thread and zinc-plated blue passivation—ideal for mechanical fastening in machinery and equipment. Designed for easy hand tightening, this durable bolt is perfect for maintenance and repair tasks, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing Bolt Round Wings DIN 316 | M5 Thread | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 237520
Alternatively Known As: Wing nut bolt, hand wing bolt, thumb screw bolt, DIN 316 wing bolt
Technical Specifications
- Thread type x nominal diameter (d1): M5
- Outer diameter (d2): 11 mm
- Length (l1): 20 mm
- Wing height (h1): 13 mm
- Width of wing on nut (e2): 26 mm
- Head height: 13 mm
- Standards: DIN 316
- Material: Malleable cast iron
- Surface: Zinc plated, blue passivated
- RoHS-compliant: Yes
- Head type: With wing
- Drive type: With hand
- Thread type: Metric thread
- Pitch: 0.8 mm
- Thread form: Standard metric thread
- Design: Pressed
- Product class: C
- Dimensions (H x L x W): 13mm x 20mm x 26mm
- Weight: 0.02 kg
Key Features
- Round wing design for easy hand tightening
- Made from malleable cast iron for durability
- Zinc plated with blue passivation for corrosion resistance
- Complies with DIN 316 standard
- RoHS-compliant
Professional Installation Requirements
- No professional installation required; designed for hand tightening.
Applications
- Mechanical fastening in machinery and equipment
- Assembly requiring hand-tightened bolts
- Use in maintenance and repair tasks
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Wing Bolt Round Wings DIN 316 M5 Zinc-Plated Blue Passivated 10 PCS is available for immediate purchase, ideal for mechanical fastening and assembly applications.
