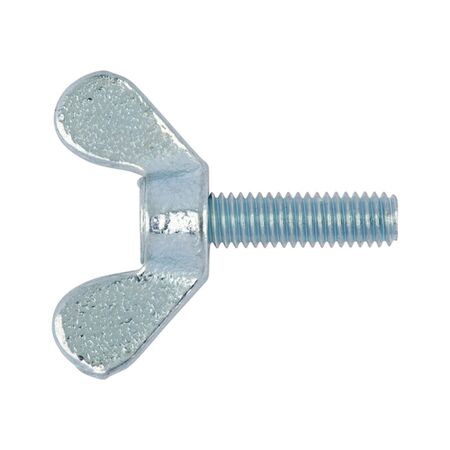

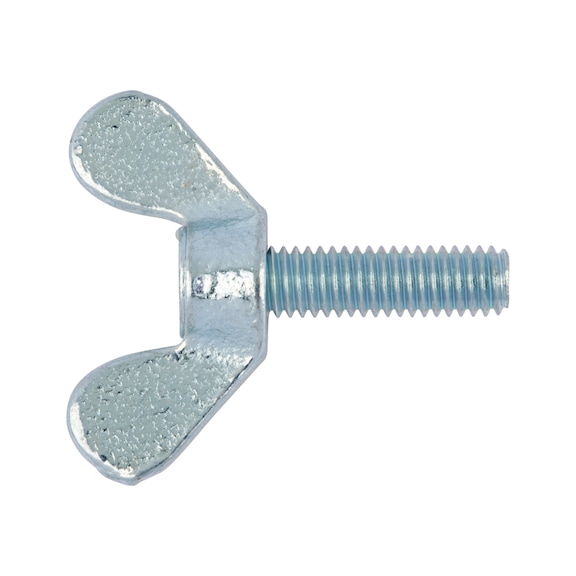

Wing Bolt Round Wings DIN 316 | M5 Thread | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Wing Bolt Round Wings DIN 316 with M5 thread and zinc-plated blue passivation—ideal for mechanical fastening in machinery and equipment. Designed for easy hand tightening, this durable malleable cast iron bolt is perfect for maintenance and repair tasks in industrial and construction settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing Bolt Round Wings DIN 316 | M5 Thread | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 237530
Alternatively Known As: Wing nut bolt, hand wing bolt, zinc plated wing screw, DIN 316 wing bolt

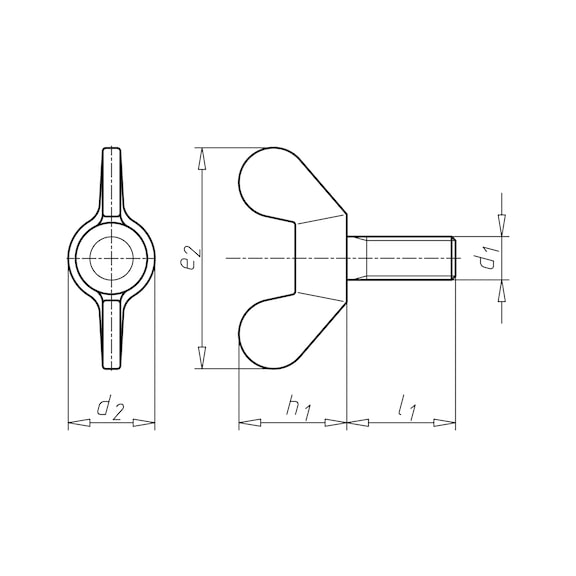

Technical Specifications
- Thread type x nominal diameter (d1): M5
- Outer diameter (d2): 11 mm
- Length (l1): 30 mm
- Wing height (h1): 13 mm
- Width of wing on nut (e2): 26 mm
- Head height: 13 mm
- Standards: DIN 316
- Material: Malleable cast iron
- Surface: Zinc plated with blue passivation
- RoHS-compliant: Yes
- Head type: With wing
- Drive type: With hand
- Thread type: Metric thread
- Pitch: 0.8 mm
- Thread form: Standard metric thread
- Design: Pressed
- Product class: C
- Dimensions (H x L x W): 13mm x 30mm x 26mm
- Weight: 0.05 kg
Key Features
- Round wing design for easy hand tightening
- Zinc-plated with blue passivation for corrosion resistance
- Made from malleable cast iron for durability
- Complies with DIN 316 standard
Professional Installation Requirements
- No professional installation required; designed for hand tightening.
Applications
- Mechanical fastening in machinery and equipment
- Assembly requiring hand-tightened bolts
- Maintenance and repair tasks in industrial and construction settings
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Wing Bolt Round Wings DIN 316 M5 Zinc-Plated Blue Passivated 10 PCS is available for immediate purchase, ideal for mechanical fastening and maintenance applications.
