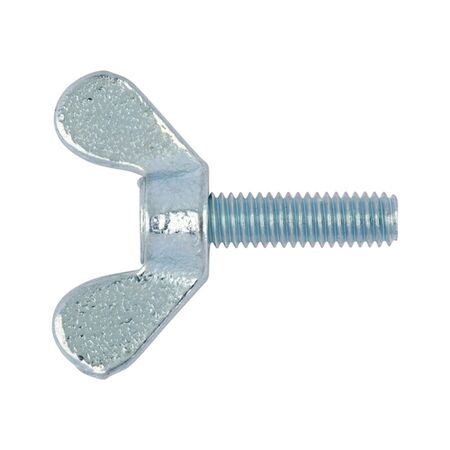

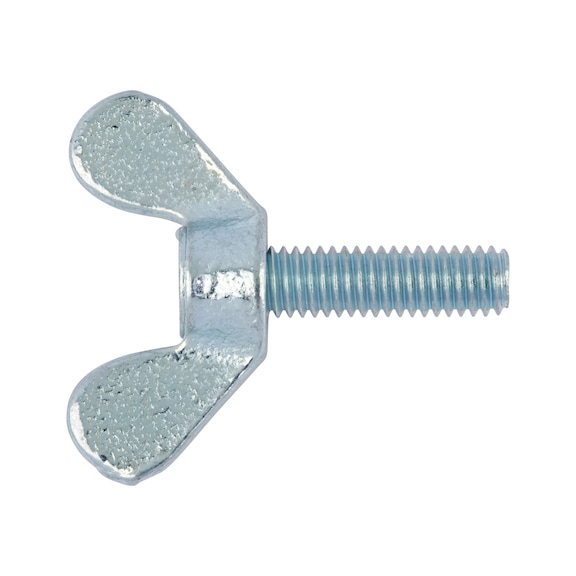

Wing Bolt Round Wings DIN 316 | Malleable Iron | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Wing Bolt Round Wings DIN 316 is crafted from durable malleable iron and features a zinc-plated, blue passivated finish for enhanced corrosion resistance. Perfect for mechanical fastening and maintenance tasks, this wing bolt allows for easy hand tightening without the need for tools, making it ideal for various assembly applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wing Bolt Round Wings DIN 316 | Malleable Iron | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 237525
Alternatively Known As: Wing screw, thumb screw, hand wing bolt, wing nut bolt

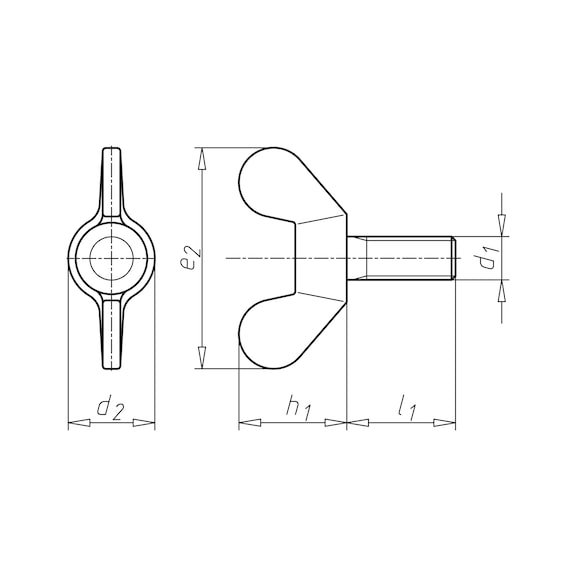

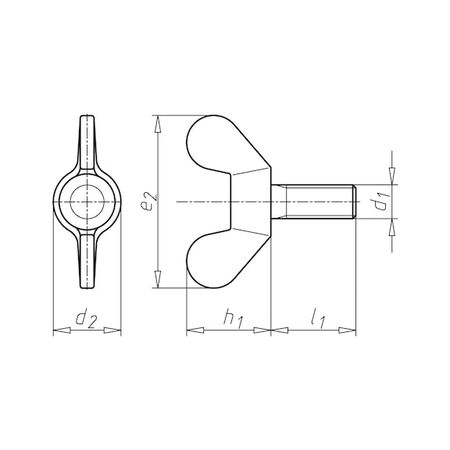

Technical Specifications
- Thread type x nominal diameter (d1): M5
- Outer diameter (d2): 11 mm
- Length (l1): 25 mm
- Wing height (h1): 13 mm
- Width of wing on nut (e2): 26 mm
- Head height: 13 mm
- Standards: DIN 316
- Material: Malleable cast iron
- Surface: Zinc plated, blue passivated
- RoHS-compliant: Yes
- Head type: With wing
- Drive type: With hand
- Thread type: Metric thread
- Pitch: 0.8 mm
- Thread form: Standard metric thread
- Design: Pressed
- Product class: C
- Dimensions (H x L x W): 13mm x 25mm x 26mm
- Weight: 0.05 kg
Key Features
- Malleable cast iron construction for durability
- Zinc plated with blue passivation for corrosion resistance
- Round wing design allows easy hand tightening
- Complies with DIN 316 standard
Professional Installation Requirements
- No special professional installation required; designed for hand tightening.
Applications
- Mechanical fastening in machinery and equipment
- Assembly requiring hand-tightening without tools
- Use in maintenance and repair tasks
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Wing Bolt Round Wings DIN 316 M5 Zinc-Plated Blue Passivated 10 PCS is available for immediate purchase, ideal for mechanical fastening and maintenance applications.
